Had a cord strung across the floor, my dog ran across the room, and tripped over the cord and yanked my pine across the room.

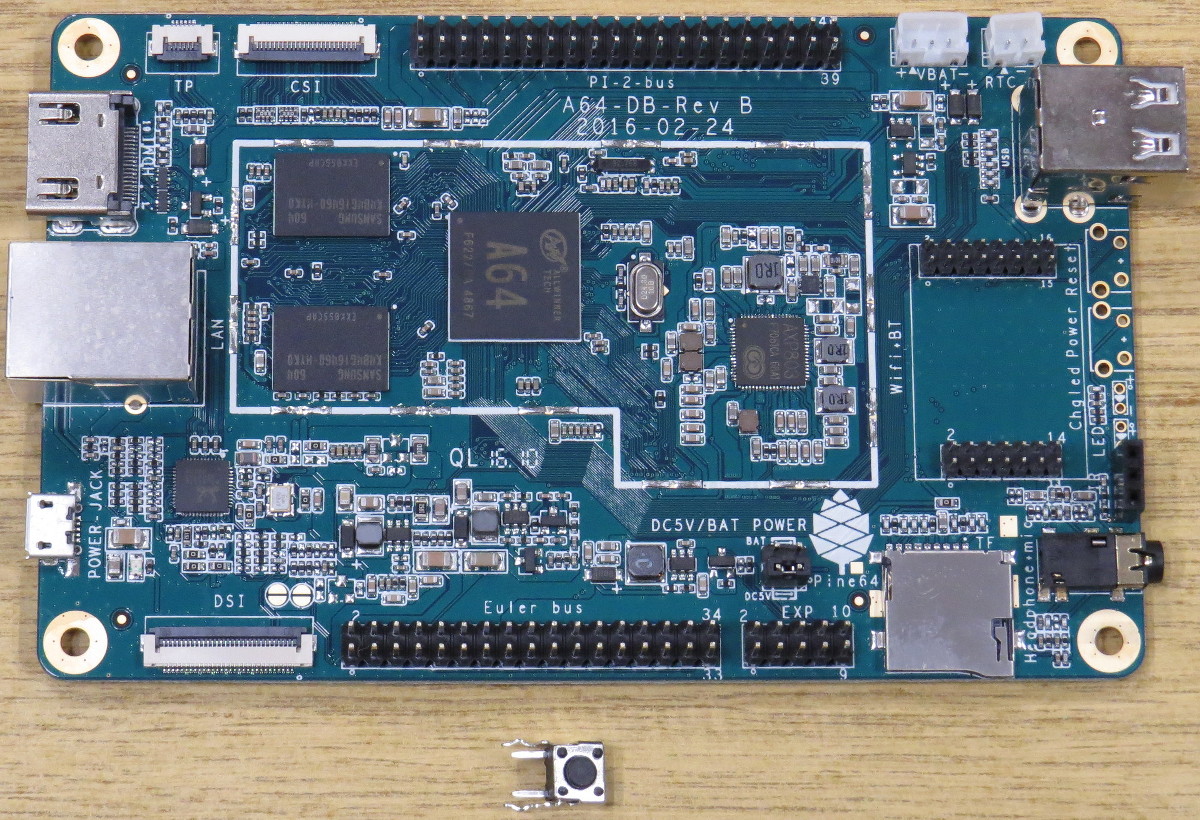

Managed to yank the USB power brick out the wall, and almost pulled my TV off the dresser. Man the Pine has some good solder joints! any other board probably would have lost a Micro USB connector...

My Acrylic enclosure on the other hand ... well it didn't do so well.







Side note: does anyone know if backers are still able to get the discounted items from the store? Wanting to buy a 2nd pine, and 2 more acrylic cases....

Hi,

I was interested how the Pine64 with its very low price would stand up against other approaches. I am interested mostly in mixed CPU intensive workload. Some floating point, but also some unstructured code.

I have chosen povray, as easily available benchmark, and something that might be actually close to what I would like to test and run on pine64 cluster.

Even if results are negative I might consider pine just for distributed software development and testing. But if the economy is on a bad side, it will not make it very practical replacement for other computing platforms.

I explicitly excluded GPUs, as they are in their specific domain, will deliver best performance, both in absolute terms, and probably in perf/W and perf/$. But development for them isn't that easy and they are not suited for generic codes.

I had an access to one PINE64+ and one PC with relatively modern Intel CPU (Sandy Bridge architecture, i3930K 3.2GHz running at 4.2GHz).

Running Debian testing / unstable.

I compiled povray manually from debian sources (povray 3.7.0), with gcc 6.1 on amd64, and gcc 7.0 (custom built git version from few days ago), on aarch64. This way I got about 15% performance improvement both on Sandy Bridge CPU and on A64 SoC. Debian generic packages in testing/unstable are already compiled with -O3, but without specific -march or -mtune options to tune instruction scheduling, use cache information, etc and such.

(Note that Sandy Bridge lacks AVX and AVX2, but I doubt this would help much in this benchmark. Haswell/Broadwell might bring about 20% of generic IPC improvements, and that is the estimate I used below).

I used FDO and LTO, with final compilation using collected profiles from povray benchmark using -O3 -march=native -ffast-math -fomit-frame-pointers. I tested with other switches, but they do not bring any additional benefits or degrade performance. Most of the performance benefits are from -march=native (especially on Sandy Bridge), just a little from -ffast-math, and FDO/LTO adds few more% of improvement (but also makes binary smaller, helping with the cache utilization).

Results.

I used:
echo | time povray -benchmark

Doing standard pov ray benchmark with 512x512 target output, and adaptive subsampling, for a total of 294912 pixels, ~776k samples, ~2.63 samples/pixel. The benchmark does have very varied structure, with both simple and complex objects,. simple and complex regions, some areas with and without reflection, refraction, aniostropy, complex and simple shading, high and small spatial density of objects, mathematically complex objects and simple ones. For textured objects it uses exclusively procedural textures (including Perlin noise and other fractal methods). It puts small pressure on memory (just few megabytes of memory used at most), and small pressure on memory bandwidth (almost everything fits in the cache, and there is considerably more arithmetic and cpu code than memory accesses, also due to the lack of pregenerated textures / images).

The time below is real time passed on the main Trace pass in povray. (data parsing, data structures creation, photon time, excluded as they are only about 1% of total time, and not all are multithreaded).

i7-3930K 3.2GHz @ 4.2GHz, 32nm process, 32GB RAM:  (using 12 threads)

time: 90.227 s  (107.7s on debian generic build)
pixels/s: 3267
power at load: 270W (full system estimate)
power at idle: 100W (full system estimate)
minimal full system price: 450$ (estimate of minimal full system price. 8GB ram, no case, no switch. realistic)
pixels/s/$: 7.26
pixels/s/W: 12.1

Pine64 (sun50iw1p1), 2GB RAM  (with small heatsink): (using 4 threads)

time: 1359 s  (1949 s on debian generic build)
pixels/s: 217  (151.3 on generic build)
power at load: 6W (full system estimate including potential ethernet switch port amortized power)
power at idle: 1.5W (without ethernet)
minimal full system price: 20$ (includes PSU, cabling, heat sink, amortized price of ethernet switch port, but no cases or mounting hardware. optimistic)
pixels/s/$: 10.85
pixels/s/W: 36.17


Speculative estimate for more modern CPU:

i7-5820K 3.3GHz @ 4.2GHz, 6 core, 2x4GB RAM, 22nm process

time: 80 s
pixels/s: 3700
power at load: 250W
power at idle: 60W
minimum full system price: 550$
pixels/s/$: 6.7
pixels/s/W: 14.7


Note that I am only comparing very high end Intel cpus, with 6 cores. Comparison to i5 and i7 4 cores CPU, or AMD CPUs would make it probably considerably in favor on the x86. Both for perf/W and perf/$. I do have an access to few more CPUs, including very low power ones, and would like to update this list shortly.


Summary:

Pine64+ cluster might be realistically speaking viable alternative the x86 high performance computer in some compute intensive workloads. However, it will require about 20 Pine64 boards to match performance of the x86. But with less memory (also distributed across more devices) and memory bandwidth limits, and management + custom software overheads. To fully utilize Pine64 low price and low power usage to compute with other platforms, one needs to bring the costs as low as possible (every 1$ counts), but using shared PSU, and cheap cables and cooling solutions and DIY mounting options. Just making it cost more than 30$ will make it economically impractical. 25$ might be ok (19$ for PINE, and 6$ for different parts), 20$ would be the best.

If matched with initial cost, PINE64 might be very attractive option in the long run, due to very low idle power usage, and very high performance/W metrics.

Future work:

More tests. Calculate 2-year ownership cost at 20% utilization (20% of the time system fully loaded, 80% idle).

What do you think? Any other comparisons to make? Maybe things like webserving? memory based caching? storage of some sort?

I would love to see somebody build ~50 nodes cluster with price, performance and power details.

Hello dear pine users ,

I am a march buyer from the website , And i know that i should wait until the backers shipments .

So because i was bored i made a Minecraft map of the pine 64 !




I took 1 block for each cm so 124 blocks x 79 blocs

I made it alone , block per block , it take me more than 10 hours ( 5 Hours today and 5hours last few days)

Hi everyone!

Yesterday I received in my mail the PINE 64 Single Board Computer I backed up a few months on Kickstarter. My Pledge was for the PINE 64 2GB edition.



First thing I did was to download and write the Ubuntu Xenial Longsleep build image to my 16GB MicroSD card (The image is almost 8GB in size). Get the Pine64 builds here: http://wiki.pine64.org/index.php/Pine_A6...re_Release

Next think I did was to boot up the PINE 64, and the first think I did once it booted up was to install BOINC:
https://www.youtube.com/watch?v=FumkMM-n...2A&index=2

However, after installing BOINC and adding some projects, I noticed they all returned a message saying there are no tasks for my current platform. The problem? The Ubuntu Xenial image is 64bit, meanwhile the projects available for the ARM architecture are made 32bit. Since BOINC reported the platform as 64bit (specifically the platform being reported is aarch64-unknown-linux-gnu), the projects didn't recognized this and returned a no work available message (because they only send work to the platform type of arm-unknown-linux-gnueabihf). Ok, so how do I make my PINE 64 get those 32bit ARM tasks? It involved using the alt_platform option and doing some stuff in ubuntu:

https://www.youtube.com/watch?v=-mmb3C5P...2A&index=3

Ok, so now I have the projects receiving tasks and the PINE 64 is crunching them as expected, except for WUProp@Home. Hmmm, seems strange that all projects I added works except WUProp@Home, so lets take a look at the workunit result:

So there you go! We made our PINE 64 receive tasks and crunch them without any issues at all. Every task is being validated successfully   So now, to enjoy our PINE 64 and let it crunch:

P.S. The PINE 64 is bigger than the Raspberry Pi's

One last video

Will the Wifi/bluetooth module provide both wifi and bluetooth at the same time or is it just one or the other?
Also, is there something I can use in the meantime until the store officially opens up?

Hi, my screen displays image at 1440x900 max but my pine outputs Full HD. I know that it's not a problem because my Raspberry Pi (first one, model B) on the same converter adapts the output to my display resolution. Is there any way to fix it on my pine?

Ok quick guide with some of the basics. I am using longlseeps kernel on debian.

First make sure you have his latest kernel. To check you can issue;

Hi,

I just installed Longsleeps base Ubuntu image and and then used the included script to install Mate desktop.  All went smoothly.  I now want to use Mate to configure Wifi.

I run StartX and the first problem I ran into was

Many people seem to have issues with the fixed 1920x1060@60Hz resolution i ship my U-Boot and Linux images with. Until now you needed to be a developer to change the resultion to anything else.

This has now changed.

I created a tool which can change the resolution. Say hello to sunxi-disp-tool.

I provide a binary package for Ubuntu 16.04 Xenial Xerus (arm64) in my Ubuntu Pine64 Makers PPA.

If you do not run my Ubuntu Xenial image it is now a good time to change that. See the Ubunu 16.04 Xenial Xerus thread for download and instructions.

Other than the tool itself, you need:
- U-Boot v2014.07-4-pine64 or later
- Kernel 3.10.101-0-pine64-longsleep-39 or later

I will eventually release an updated Xenial image which has those - for now update as usual (as root) with:

You invest your money in a car that you say it works everything, including brakes, knowing that they have not proven manufacturers?.
So difficult was to test the connection to the network, with a minimum operating system.
They do not respond because manufacturers and designers, and tell the truth, they screwed up and do not know how to solve the monumental failure of the plates 2GB.
I'm disillusioned and fustrado after investing in the project pine64 kickstarter and ignore users.
A greeting.
