LaserCut Pine Enclosure
#1
Hi,

I made a enclosure for the board
[Image: oTd9Uy3PGVK5.png]

I made some adjustment to stabilize the structure.

So there is the plan (svg and dxf files) : https://github.com/Macrois/Pine64Enclosure
License: CC-by-sa 4.0

Tools:
Laser cutting machine (80w, cut with 80% power and 1000mm/min speed)
MDF 3 millimeter thickness (i guess no problem with acrylic)
Away
  Reply
#2
That is just straight up beautiful. Very good job.
You can find me on IRC, Discord and Twitter


  Reply
#3
(05-05-2016, 11:10 AM)Macrois Wrote: Hi,

I made a enclosure for the board
[Image: oTd9Uy3PGVK5.png]

I made some adjustment to stabilize the structure.

So there is the plan (svg and dxf files) : https://github.com/Macrois/Pine64Enclosure
License: CC-by-sa 4.0

Tools:
Laser cutting machine (80w, cut with 80% power and 1000mm/min speed)
MDF 3 millimeter thickness (i guess no problem with acrylic)

Very nice work and thank you for sharing the files and the info on what equipment you used, now where did my credit card go....
  Reply
#4
Video
Great design and the .DXF was very easy on my laser cut machine.  I used 3mm black Plexi and glued with plexi solvent.  Great results!

https://app.box.com/s/xx3xkfkwj0cmyeea73t756cxjiv9f030
https://app.box.com/s/m34l74ykjpgg793c1sl3atv19cmx5cpe
https://app.box.com/s/8alph3wyxdgviv7iprx0p9dvvw5a5npk
https://app.box.com/s/ogtojnyix0z794f10s1dduveidibgelo
  Reply
#5
(05-05-2016, 11:10 AM)Macrois Wrote: Hi,

I made a enclosure for the board


I made some adjustment to stabilize the structure.

So there is the plan (svg and dxf files) : https://github.com/Macrois/Pine64Enclosure
License: CC-by-sa 4.0

Tools:
Laser cutting machine (80w, cut with 80% power and 1000mm/min speed)
MDF 3 millimeter thickness (i guess no problem with acrylic)

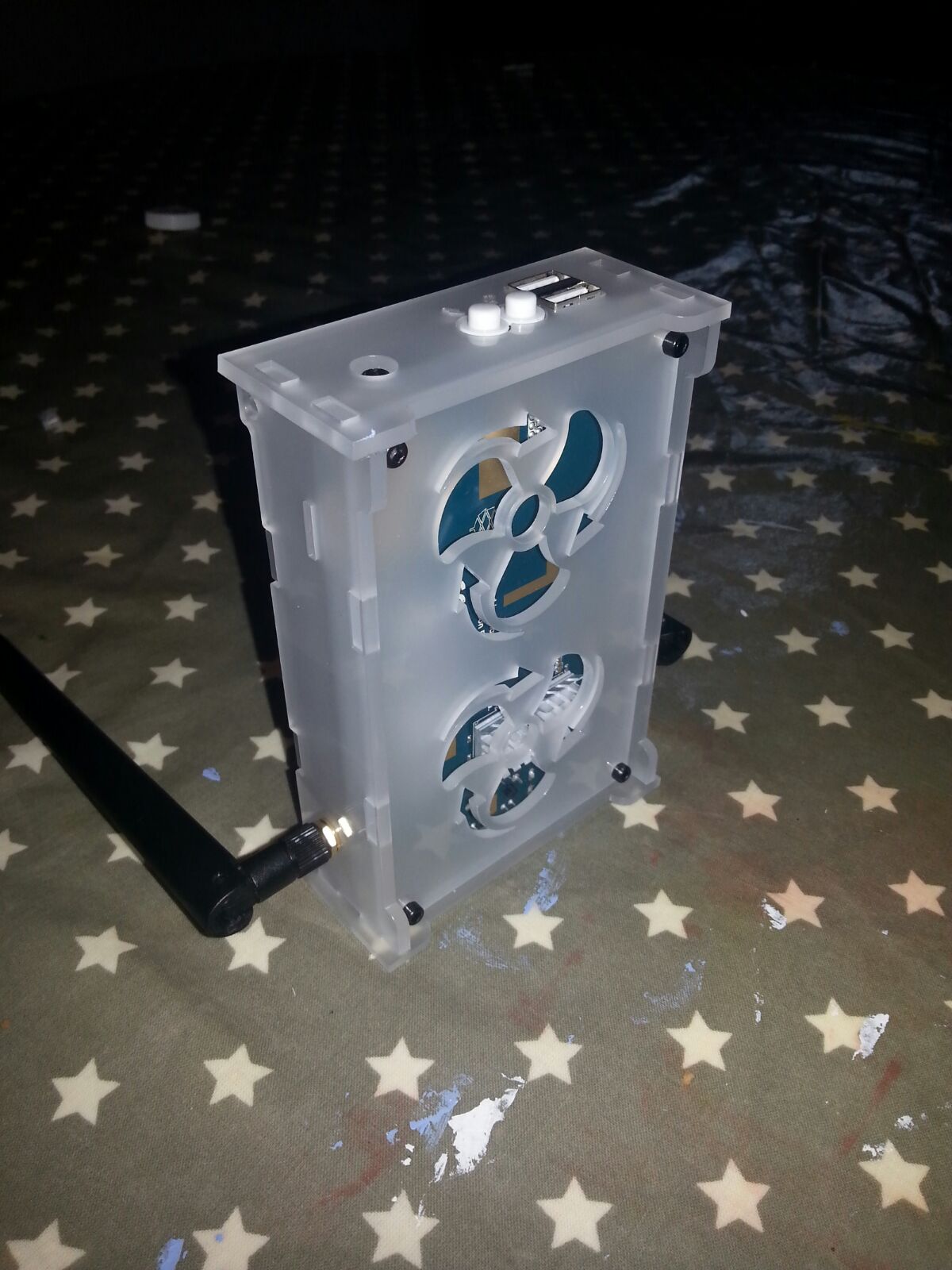

First of all I just want to say thank you for sharing your design with us.
I downloaded and used the .dxf file as a template.
A lot of changes were made.

Kind of pleased with how it turned out.
This is the first real "creation" on my new (and first) lasercutter.




Due to the limits on the attachments I had to make another reply to this topic.
Here is a photo of he hinged lid on the casing....

All these pictures was taken before the case had ben "glued" together.


  Reply
#6
That case design is positively beautiful !

... thanks for sharing, and again, very nice work.
marcushh777    Cool

please join us for a chat @  irc.pine64.xyz:6667   or ssl  irc.pine64.xyz:6697

( I regret that I am not able to respond to personal messages;  let's meet on irc! )
  Reply
#7
@Tarjei85: are those antennae?!

How's your WiFi reception? Wink
  Reply
#8
(08-26-2016, 10:19 AM)Ghost Wrote: @Tarjei85: are those antennae?!

How's your WiFi reception? Wink

You are correct. Made my own two-way-splitter (the t-splitter was to big) and connected them both...

The wifi reception is awsome Wink
Picked them of an ASUS router I dont use any more Smile
  Reply
#9
Nicely done Tarjei, and I like the look with the antennas, too! How did you do your own splitter? It appears to be hidden below the WiFi module. Was that pretty simple to do? Thanks.
Kickstarter backer #5,864  --  SBC Noob  --  SE Michigan, USA
  Reply
#10
(08-26-2016, 12:07 PM)montero65 Wrote: Nicely done Tarjei, and I like the look with the antennas, too!  How did you do your own splitter?  It appears to be hidden below the WiFi module.  Was that pretty simple to do?  Thanks.

Thank you. Here is a crappy illustration on how i did it. (When I had it all soldered i covered it in a shrinking-tube to be sure not to mess up anything with any uncovered connections)

Sorry about the crappy illustration. At work right now, and I only had access to MSPaint Tongue


Attached Files Thumbnail(s)

  Reply
