Giving the Pine a trunk, a Playbox pedestal
#1
Information

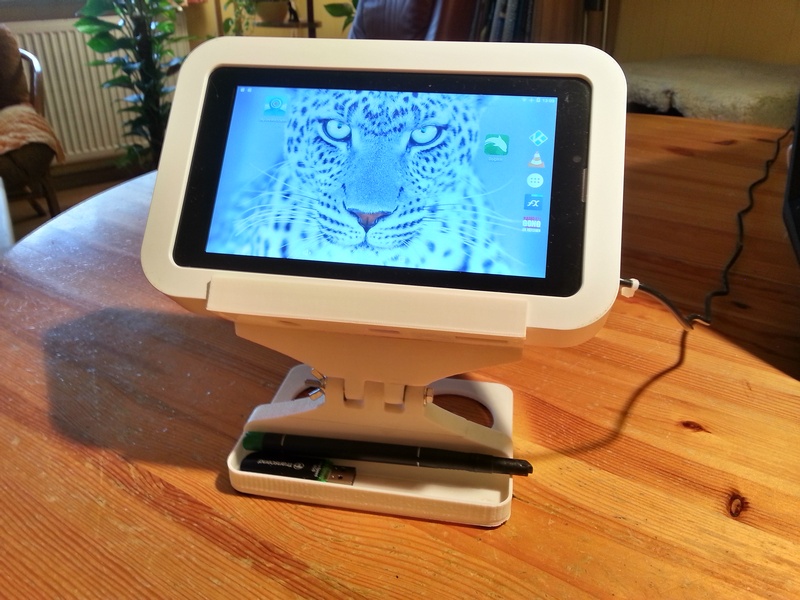

Hi, i designed a pedestal for the Playbox Enclosure.
Now Pine looks like a sweet tiny Desktop. Big Grin
It's 3D-Printed.

Update 22.04.2017
Version 1.0 now has a hinge to adjust the visual angle.
  • A stacker pocket is added to the base.
  • Full access to the Pine connectors.
  • The hole for the Ethernet jack is also there but closed with a very thin layer, you can cut it out for to use it.
  • An additioinal hole in the bracket, say for a power-cable jack to the Euler bus.

Update 23.04.2017
The STL's are available there:
http://repables.com/r/847

Update 26.04.2017

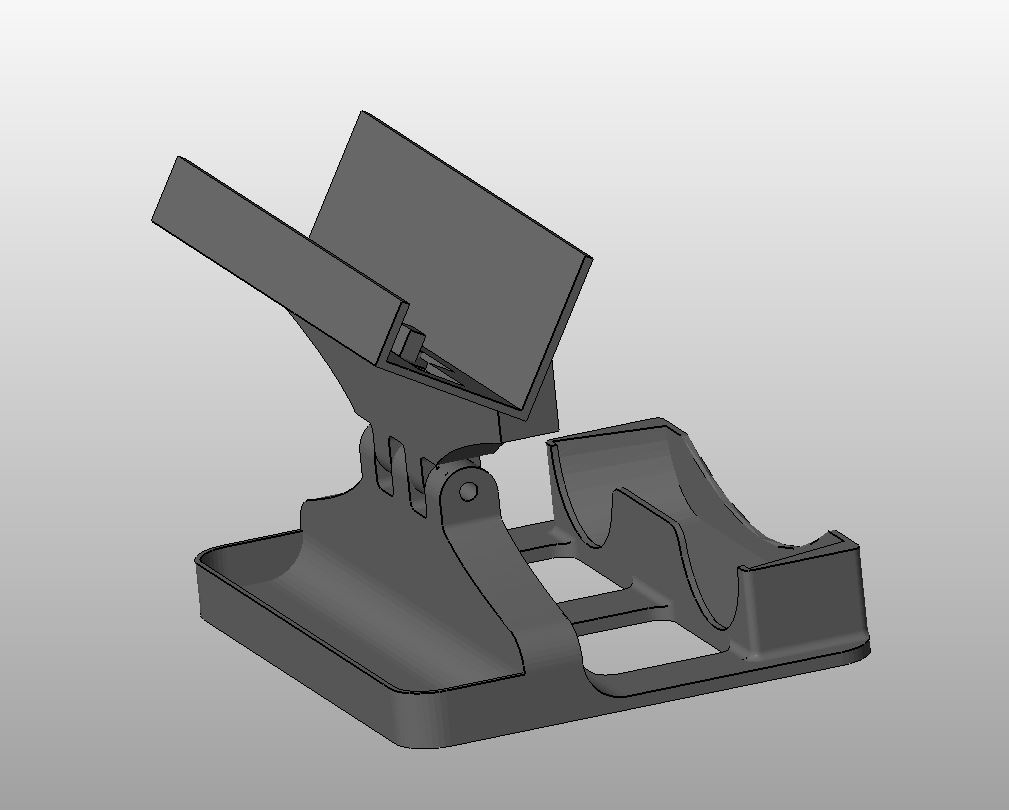

V2.0:
Added a version of the base which includes a holder for a Nokia MD8 active speaker box.
This speaker will be plugged in the earphone jack.

Have fun... Cool


Attached Files Thumbnail(s)

  Reply
#2
Nice pedestal! :-P

Can you put the design up up on thingiverse or something, in case other people want one too (or perhaps attach the STL if the forum lets you)?
  Reply
#3
Nice work, and yes, 3D printing data would be nice Smile
Come have a chat in the Pine IRC channel >>
  Reply
#4
Final version 1.0 is ready, see first post of this thread. Rolleyes
  Reply
#5
Very nice! I love the addition of the hinge, and the tray to collect random loose bits in! Wink  Thank you for sharing!
  Reply
#6
(04-20-2017, 04:45 AM)xalius Wrote: Nice work, and yes, 3D printing data would be nice Smile

STL's are now available for download, see first post.........
  Reply
#7
V2.0:
Added a version of the base which includes a holder for a Nokia MD8 active speaker box.
This speaker will be plugged in the earphone jack.
See first post.
  Reply
#8
How did you make it? It is amazing.
  Reply
