Rockpro64 Case WIP
#1
Took my first pass at a case for my rockpro64 this weekend. Still have a lot of work to do on it but the first  pass is done.

I am sharing the dxf and cambam files as well as docs on what I am up to with it. My plan is to use the rockpro64 as my development desktop for the pinebook pro.

https://github.com/xbcsmith/pine64.git

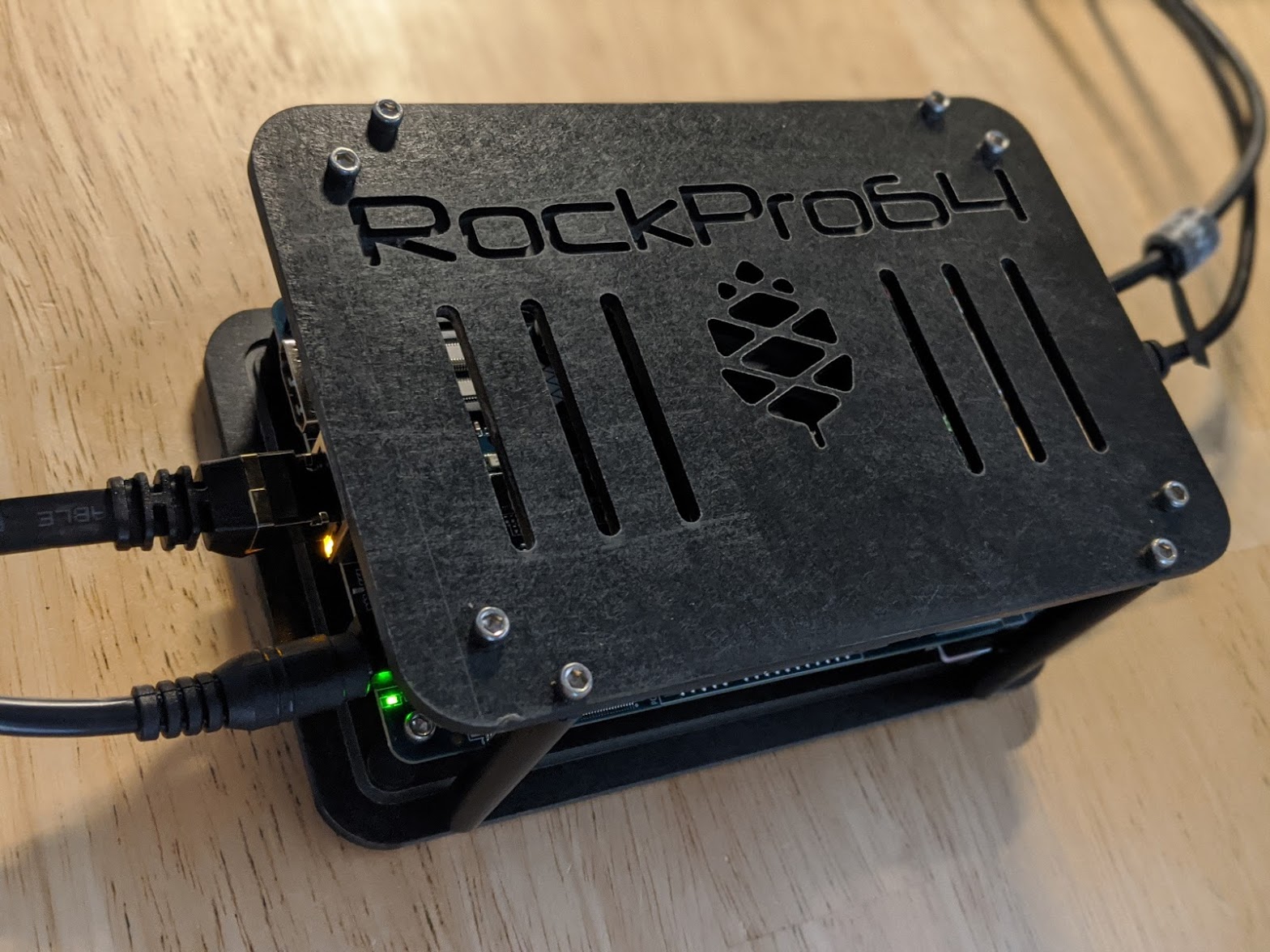

.jpg   rockpro64.jpg (Size: 305.84 KB / Downloads: 246)

I used garolite for the prototype because I had a bunch on the shelf.

Future plans are to design a more closed in desktop case with support for the NVMe pcie card.

Also considering aluminum and some other materials moving forward.

Sorry about the double post. Feel free to delete one
  Reply
#2
(01-26-2020, 05:05 PM)xbcsmith Wrote: Took my first pass at a case for my rockpro64 this weekend. Still have a lot of work to do on it but the first  pass is done.

I am sharing the dxf and cambam files as well as docs on what I am up to with it. My plan is to use the rockpro64 as my development desktop for the pinebook pro.

https://github.com/xbcsmith/pine64.git




I used garolite for the prototype because I had a bunch on the shelf.

Future plans are to design a more closed in desktop case with support for the NVMe pcie card.

Also considering aluminum and some other materials moving forward.
I like this design, both my 64 A+ and 64-LTS have sandwich style cases. I like the NAS case for the RP64, but I would prefer something a bit simpler if/when I get another one, and I've been meaning to pick up a 3D printer. Thanks! Will leave a note here if I try it out.
------
it doesn't get happy
it doesn't get sad
it just runs programs
  Reply
