PCIe SSD drive still not working ??
#1
Sorry if I'm being totally stupid and posted in wrong area, but...

I've just received a new production unit (Rockpro64 V2.1 2018-06-06) together with a PCIe 3.0 x4 to M.2 (NGFF) SSD Adaptor, to which I've added a WD blue SSD M.2 2280 drive.

I'm using Ayufan's latest builds, both minimal & full, but nothing I try allows access to the drive.

The boot logging shows an error connecting to the PCIe device(s), but I'm not sure what is going on (sorry but I'm unable to upload file).

The drive I've tested in a normal PC & can create\format partitions etc...

Reading other posts on the site, relate to a resistor that needs to be removed ?  but I was under the impression that the board I purchased was one of the new 'fixed' ones, so should work ok ??

Any thoughts or suggestions gratefully received....
#2
Please read http://irc.pine64.uk/?date=2018-08-05T14:36:00.000Z Start @ 05/08/18 11:09 #Rock64
Sorry for any mistakes. English is not my native language

1. RP64 v2.1 / PCIe SATA JMS585 Chipsatz / Booting from an 2,5 Zoll SSD on port 5/ 2 * 3,5 Zoll 4TB HDD (raid1) md0 / 2 * 2,5 Zoll 2TB HDD (raid1) md1 / using as NAS / Kernel 5.6.0-1137-ayufan-ge57f05e7bf8f

2. RP64 v2.1 / testing.....testing....testing

3. Quartz64 Model A with 4GB RAM

https://forum.frank-mankel.org/category/14/rockpro64
#3
(08-07-2018, 01:17 PM)dr_ju_ju Wrote: ...
I've just received a new production unit (Rockpro64 V2.1 2018-06-06) together with a PCIe 3.0 x4 to M.2 (NGFF) SSD Adaptor, to which I've added a WD blue SSD M.2 2280 drive.
....

You're clear after reading the IRC log, that your device is a SATA interface SSD in an M2 form factor, not an M2 NVME drive, right?

You can either get an NVME drive or much more cheaply get the SATA adapter in the store.
#4
(08-07-2018, 02:47 PM)Bullet64 Wrote: Please read http://irc.pine64.uk/?date=2018-08-05T14:36:00.000Z Start @ 05/08/18 11:09 #Rock64

Is that the correct date\time ? as I see nothing starting @ 11:09, unless I'm being totally thick today, as usual..
#5
In short - WD Blue are SATA interface and will not work on the M2 PCIe adapter from Pine64.

The ROCKPro64 supports NVMe drives via the M2 PCIe adapter - if you stick to WD you need Black.

M2 SATA drives have a Key B (as well as M), NVMe have Key M only.

(Or you could try find a PCIe adapter like mine - I havent tried any SATA on this card yet Smile )

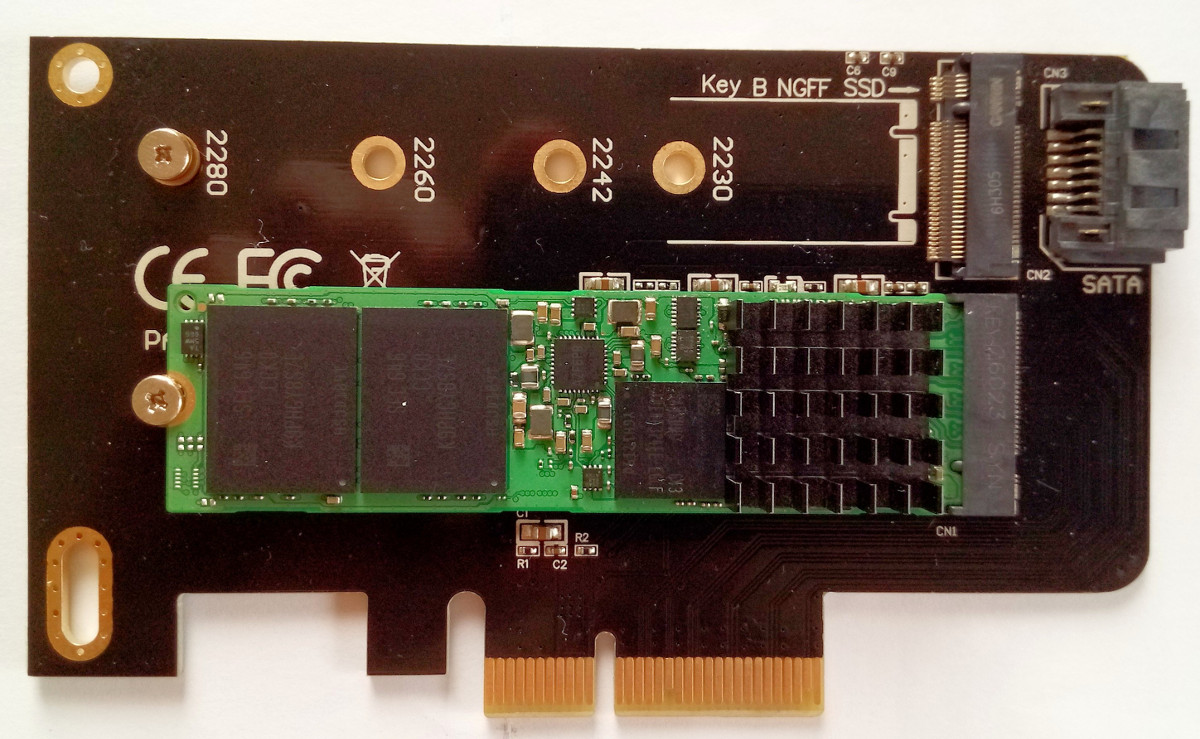

Attached Files Thumbnail(s)

  • ROCKPro64 v2.1 2GB, 16Gb eMMC for rootfs, SX8200Pro 512GB NVMe for /home, HDMI video & sound, Bluetooth keyboard & mouse. Arch (5.13 kernel, Openbox desktop) for general purpose daily PC.
  • PinePhone BraveHeart now v1.2b 3/32Gb daily driver, dual boot via p-boot with Mobian/f2fs/Phosh on eMMC, Arch/ext4/Phosh on SDcard
  • PinePhone v1.2a 2G/16Gb that needs USB board replaced
#6
Blush My bad & yes being stupid, for not checking specs properly

I have an NVMe drive, but plugged in the SATA one instead and ploughed on regardless

I'm also going to try a dual sata interface card, as I need lots of storage for a travelling Astrophotography control & imaging system, and the less I have to rely on USB connected storage the better...
#7
Hello,

I am new to pine64. Just bought ROCKPro64 and waiting for shipment. In the meantime I have a question: do you think it will work with this PCIe to M.2 adapter:
https://www.aliexpress.com/item/H1111Z-A...60990.html

and this SSD drive (not NVMe):
https://www.aliexpress.com/item/Kingsuxi...46435.html

I want this because this SSD is still cheaper than NVMe (I know it is also slower). Is this possible or I must go with NVMe?


Thanks.
#8
(04-10-2019, 01:50 PM)Kokum Wrote: Hello,

I am new to pine64. Just bought ROCKPro64 and waiting for shipment. In the meantime I have a question: do you think it will work with this PCIe to M.2 adapter:
https://www.aliexpress.com/item/H1111Z-A...60990.html

and this SSD drive (not NVMe):
https://www.aliexpress.com/item/Kingsuxi...46435.html

I want this because this SSD is still cheaper than NVMe (I know it is also slower). Is this possible or I must go with NVMe?


Thanks.

If you plan to use the above combination, you need to have a n USB-Sata adapter and feedback the Sata connection to the adapter board. The above PCIe adapter don't have onboard PCIe to Sata circuit, it just have the m.2 connector that passive link to SATA connector.
