Acrylic enclosure for PINE A64
#11
(02-18-2016, 09:38 AM)Informatica Wrote: Hi killor,
could you share with us the project/model used for the laser cut machine??

Hi !
The measurements place are taken from the wiki.  Pine A64 Rev B PCB dimension
all you have to add the the height for each connector,

I have taken measures height connectors that I have at home on other devices, like  router , Laptop or Raspberry Pi, tv screens ,etc....

 as they are standard components ..

They fit well on the actual board..


“施主肤浅了,授人以鱼,不如授人以渔,难道这个道理你不懂吗?鱼你吃完就没了,可是你可以用鱼竿钓很多鱼,可以用一辈子!"

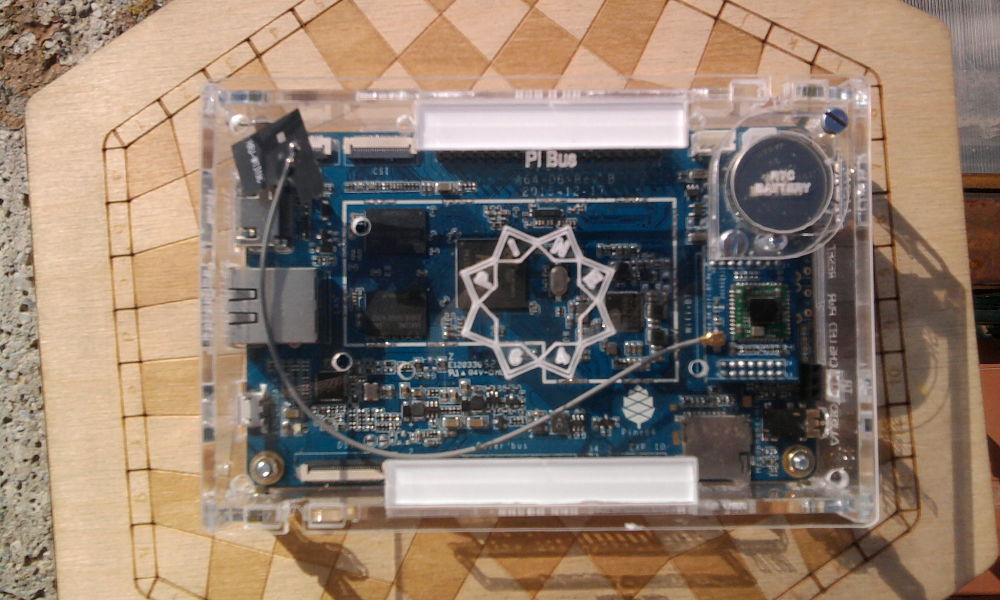

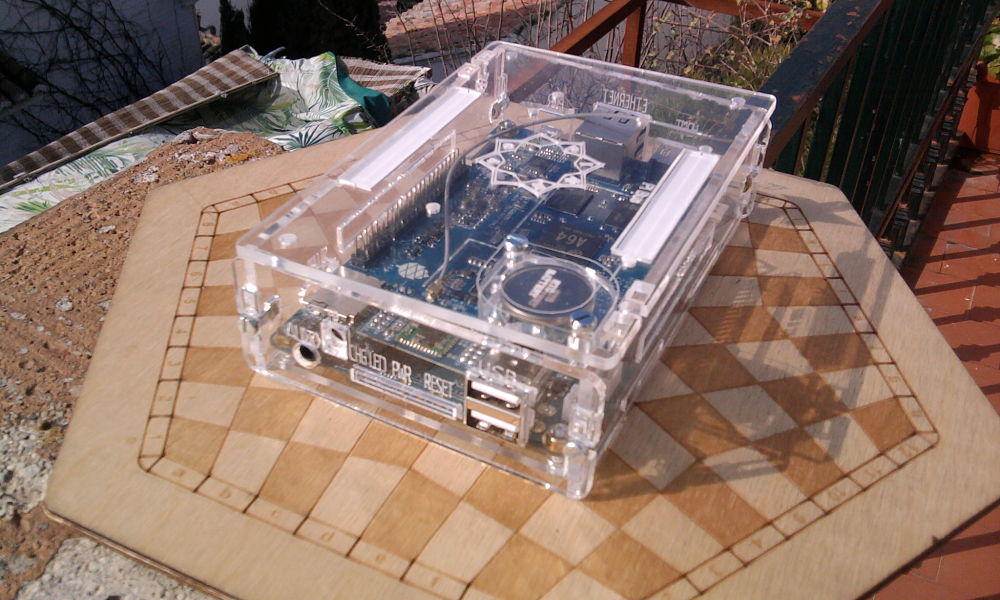

One of the changes I am making is on my acrylic enclosure design is:

I'm adding a Button cell 3V Battery Holder CR2032 for RTC ..

I've already ordered the Mini Micro JST 2.0 PH 2-Pin Connector Plug with Cables Wires..

The lipo battery  one option is 1200mAh 3.7V Li-Poly Battery with JST-PH cable

but I have to investigate further.






Where available, I will include in orders for this design.
  Reply
#12
You casing looks great.  I would love to get one of these from you if possible. I live in the US.
  Reply
#13
(02-23-2016, 06:22 PM)lenwe33 Wrote: You casing looks great.  I would love to get one of these from you if possible. I live in the US.

Hello lenwe33

If soon be available on Amazon USA warehouse ,

I'm waiting for the Micro JST 2.0 PH 2-Pin Connector plug to include in the RTC battery holder kit

Right now we have ready at Amazon USA warehouse,  a wooden version (without RTC kit)

Thanks for your interest..
  Reply
#14
(02-18-2016, 09:38 AM)Informatica Wrote: Hi killor,
could you share with us the project/model used for the laser cut machine??

Wondering if the acrylic will be available thru amazon? It looks cool
  Reply
#15
(02-25-2016, 11:00 PM)brjaan Wrote: Wondering if the acrylic will be available thru amazon? It looks cool

Yes,  when receiving the Micro JST 2.0 PH 2-Pin Connector , I will begin to send Amazon...
  Reply
#16
Por favor, ponla en Amazon con envío en un día a ser posible, sin mínimo de compra. Tengo premium y sería un puntazo si se puede mantener el precio, así muchos no tendríamos que pagar un extra por el envío por agencia.
  Reply
#17
(02-26-2016, 08:21 AM)RaspiBit Wrote: Por favor, ponla en Amazon con envío en un día a ser posible, sin mínimo de compra. Tengo premium y sería un puntazo si se puede mantener el precio, así muchos no tendríamos que pagar un extra por el envío por agencia.

Ahora en Amazon España hay solo cajas de madera, (bueno realmente estan en Alemania , Francia e Reino unido )
pronto cuando reciba los conectores PH2 para terminar el porta pilas de boton del reloj RTC , entonces enviare las cajas acrilicas para AMAZON.

No te preocupes ya te mandaré un mensaje cuando las tenga listas...
  Reply
#18
¿El diseño tiene en cuenta el espacio necesario para pulsar los switches de encendido y reset?
  Reply
#19
(02-26-2016, 09:36 AM)RaspiBit Wrote: ¿El diseño tiene en cuenta el espacio necesario para pulsar los switches de encendido y reset?

Le he dejado una abertura pero al no ver que tipo de switches se usaran no está totalmente exacta...
  Reply
#20
How is it going?
  Reply
