WIFI board information?
queonda
Pine Initiate
**
Joined: Apr 2016
Posts: 14

Reputation: 0
#1
04-27-2016, 12:01 PM
Hello,

Looking for the information on the WIFI board.  Is it possible connection an external antenna?
  Reply
tllim
Founder
*****
Moderators
Joined: Dec 2015
Posts: 4,336

Reputation: 294
#2
04-28-2016, 12:02 AM
(04-27-2016, 12:01 PM)queonda Wrote: Hello,

Looking for the information on the WIFI board.  Is it possible connection an external antenna?

You can connect to external antenna.
  Website
  Reply
queonda
Pine Initiate
**
Joined: Apr 2016
Posts: 14

Reputation: 0
#3
04-28-2016, 01:34 PM
Is there any information you can point me to?

Sent from my SAMSUNG-SM-G935A using Tapatalk
  Reply
tllim
Founder
*****
Moderators
Joined: Dec 2015
Posts: 4,336

Reputation: 294
#4
04-28-2016, 02:04 PM
(04-28-2016, 01:34 PM)queonda Wrote: Is there any information you can point me to?

Sent from my SAMSUNG-SM-G935A using Tapatalk

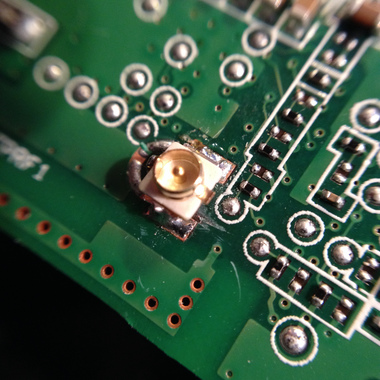

Just detach the wire antenna comes with Wifi/BT module and you will spot an U.FL (see attached picture), you can connect your external antenna to this connector. However, if your external antenna is SMA type, you need a conversion cable.


Attached Files Thumbnail(s)

  Website
  Reply
queonda
Pine Initiate
**
Joined: Apr 2016
Posts: 14

Reputation: 0
#5
04-28-2016, 06:00 PM
Thank you! I should get my board mid month.

Sent from my SAMSUNG-SM-G935A using Tapatalk
