Copper cooler for Rockpro64
battlenut
Pine Initiate
**
Joined: Aug 2018
Posts: 10

Reputation: 0
#1
09-21-2018, 03:57 AM

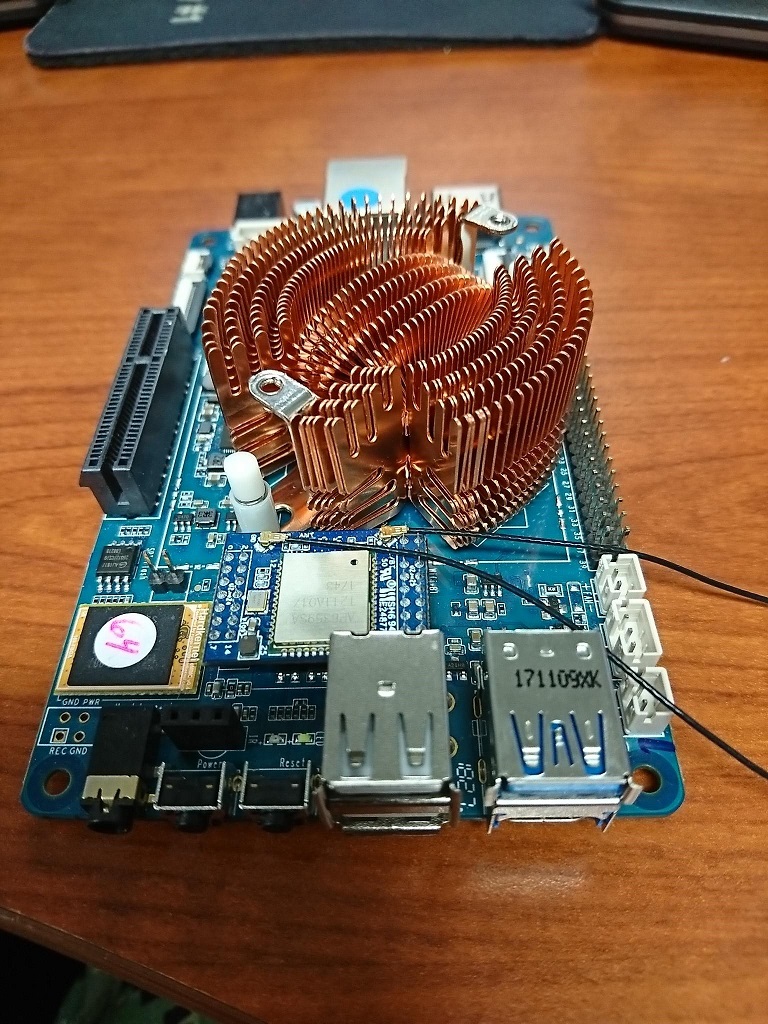

Found this copper cooler on ebay. Fits nicely except the area around the WIFI/Bluetooth card attaches so had to bend the fins a little bit. But all in all a nice passive cooler. it does have a fan that comes with it but would need connection modification. Just wanted to share this.
Luke
Community Manager
*****
Moderators
Joined: Mar 2016
Posts: 3,750

Reputation: 518
#2
09-21-2018, 04:44 AM
Pretty cool. Looks like an old GPU heatsink.
You can find me on IRC, Discord and Twitter


  Website
romtorwator
Pine Adept
***
Joined: Aug 2018
Posts: 29

Reputation: 6
#3
Question  09-22-2018, 02:42 AM
Is eMMC from ODROID supported?
_____________________________________________________________________________________________________________________________________________
my SOHO NAS RockPro64 4GB v2.1 / eMMC 32GB / PCIe -> 4*SATA Marvell 88SE9235 / SD-card 64 GB / NAS Casing / image Debian Stretch Minimal / Kernel 4.4.xxx ayufan
my Multimedia desktops: ASUS H310T G5500, ODROIDs -XU4, -XU3, -C2, -C1;
my trash BananaPi; RPi B, B+; ODROID-W
battlenut
Pine Initiate
**
Joined: Aug 2018
Posts: 10

Reputation: 0
#4
09-22-2018, 05:22 AM
I believe so, that's where I got my RockPro64. I like the board but the OS is still young.
dukla2000
Professor of The Pine
*****
Joined: Jul 2018
Posts: 800

Reputation: 99
#5
09-29-2018, 09:01 AM (This post was last modified: 09-29-2018, 09:03 AM by dukla2000. Edit Reason: typo )

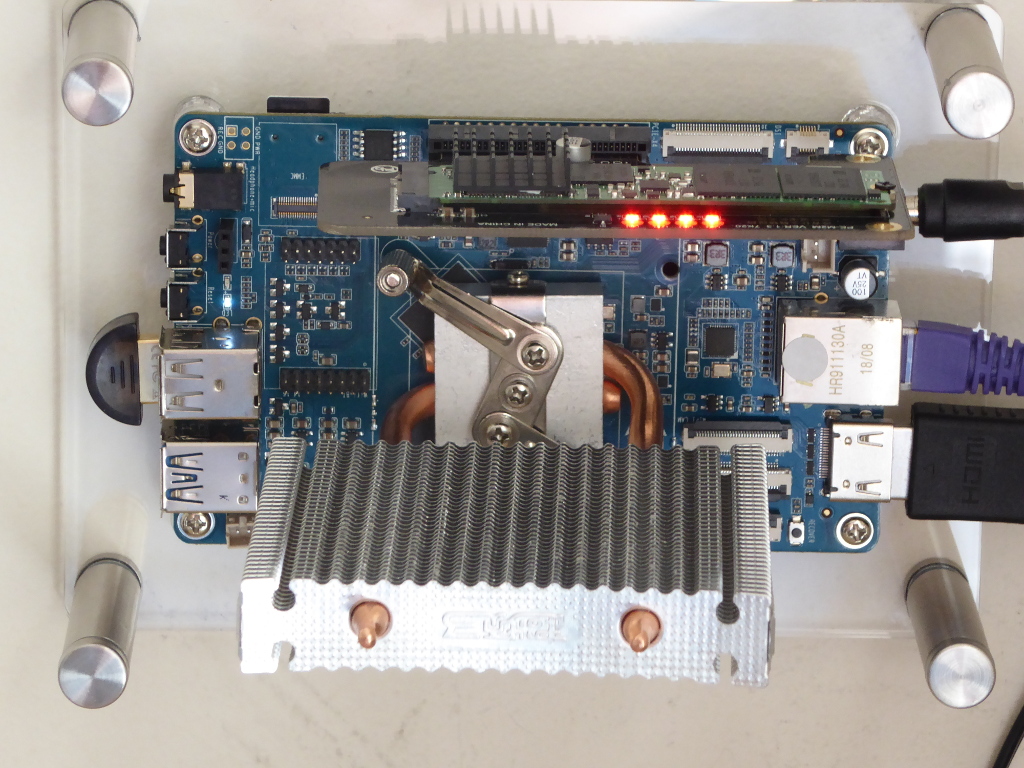

Got myself a larger heatsink which works well. Stock Pine64 30mm job weighs 62g, this thing weighs 110g so should be useful. Running cpuminer as a benchmark indicates it is: stock 30mm at 2GHz was reaching 80C after about 15 minutes and throttling, this new sink seems to be able to keep under 80C (ambient 23C) indefinitely and running RockPro at 2.1/1.5GHz.

Had to mount it on the long axis of the board to prevent interference with the PCIe card. Available all over Fleabay - I happened to get mine from this vendor with no problems.


Attached Files Thumbnail(s)

  • ROCKPro64 v2.1 2GB, 16Gb eMMC for rootfs, SX8200Pro 512GB NVMe for /home, HDMI video & sound, Bluetooth keyboard & mouse. Arch (6.2 kernel, Openbox desktop) for general purpose daily PC.
  • PinePhone Pro Explorer Edition, daily driver, rk2aw & U-boot on SPI, Arch/SXMO & Arch/phosh on eMMC
  • PinePhone BraveHeart now v1.2b 3/32Gb, Tow-boot with Arch/SXMO on eMMC
Luke
Community Manager
*****
Moderators
Joined: Mar 2016
Posts: 3,750

Reputation: 518
#6
09-29-2018, 09:08 AM
(09-29-2018, 09:01 AM)dukla2000 Wrote: Got myself a larger heatsink which works well. Stock Pine64 30mm job weighs 62g, this thing weighs 110g so should be useful. Running cpuminer as a benchmark indicates it is: stock 30mm at 2GHz was reaching 80C after about 15 minutes and throttling, this new sink seems to be able to keep under 80C (ambient 23C) indefinitely and running RockPro at 2.1/1.5GHz.

Had to mount it on the long axis of the board to prevent interference with the PCIe card. Available all over Fleabay - I happened to get mine from this vendor with no problems.

Damn, thats nice...
You can find me on IRC, Discord and Twitter


  Website
Takenover83
Pine Adept
***
Joined: Sep 2018
Posts: 20

Reputation: 0
#7
09-29-2018, 01:40 PM
(09-29-2018, 09:01 AM)dukla2000 Wrote: Got myself a larger heatsink which works well. Stock Pine64 30mm job weighs 62g, this thing weighs 110g so should be useful. Running cpuminer as a benchmark indicates it is: stock 30mm at 2GHz was reaching 80C after about 15 minutes and throttling, this new sink seems to be able to keep under 80C (ambient 23C) indefinitely and running RockPro at 2.1/1.5GHz.

Had to mount it on the long axis of the board to prevent interference with the PCIe card. Available all over Fleabay - I happened to get mine from this vendor with no problems.

Very nice. Wonder if it's to big to work with the NAS case?
dukla2000
Professor of The Pine
*****
Joined: Jul 2018
Posts: 800

Reputation: 99
#8
09-29-2018, 02:34 PM
(09-29-2018, 01:40 PM)Takenover83 Wrote: Very nice. Wonder if it's to big to work with the NAS case?

With 3.5" drives there has got to be no chance. With 2.5" dunno - the tips of the heatpipes are about 115mm above the PCB.
  • ROCKPro64 v2.1 2GB, 16Gb eMMC for rootfs, SX8200Pro 512GB NVMe for /home, HDMI video & sound, Bluetooth keyboard & mouse. Arch (6.2 kernel, Openbox desktop) for general purpose daily PC.
  • PinePhone Pro Explorer Edition, daily driver, rk2aw & U-boot on SPI, Arch/SXMO & Arch/phosh on eMMC
  • PinePhone BraveHeart now v1.2b 3/32Gb, Tow-boot with Arch/SXMO on eMMC
tllim
Founder
*****
Moderators
Joined: Dec 2015
Posts: 4,329

Reputation: 293
#9
10-04-2018, 03:42 PM
(09-29-2018, 02:34 PM)dukla2000 Wrote:
(09-29-2018, 01:40 PM)Takenover83 Wrote: Very nice. Wonder if it's to big to work with the NAS case?

With 3.5" drives there has got to be no chance. With 2.5" dunno - the tips of the heatpipes are about 115mm above the PCB.

My guess should be OK with 2.5"" due to the installation may not block the heatsink placement.
  Website
duckkcud
Pine Adept
***
Joined: Aug 2018
Posts: 23

Reputation: 0
#10
10-30-2018, 08:35 AM
(09-29-2018, 09:01 AM)dukla2000 Wrote: Got myself a larger heatsink which works well. Stock Pine64 30mm job weighs 62g, this thing weighs 110g so should be useful. Running cpuminer as a benchmark indicates it is: stock 30mm at 2GHz was reaching 80C after about 15 minutes and throttling, this new sink seems to be able to keep under 80C (ambient 23C) indefinitely and running RockPro at 2.1/1.5GHz.

Had to mount it on the long axis of the board to prevent interference with the PCIe card. Available all over Fleabay - I happened to get mine from this vendor with no problems.

What base is the board secured to? I'm assuming it's a tiered / stack-able platform?
