slarm64 (unofficial slackware) Quartz64 RK3566 (aarch64)

mara · 07-17-2021, 07:53 AM

start testing

Code:
U-Boot SPL board init

U-Boot SPL 2017.09-ga1f6fc00a0-210413 #ldq (Apr 13 2021 - 11:35:00)

unknown raw ID phN

unrecognized JEDEC id bytes: 00, 00, 00

Trying to boot from MMC2

No misc partition

## Verified-boot: 0

## Checking atf-1 0x00040000 ... sha256+ OK

## Checking uboot 0x00a00000 ... sha256+ OK

## Checking fdt 0x00b21290 ... sha256+ OK

## Checking atf-2 0xfdcc9000 ... sha256+ OK

## Checking atf-3 0xfdcd0000 ... sha256+ OK

## Checking optee 0x08400000 ... sha256+ OK

Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)

Total: 257.955 ms

INFO:    Preloader serial: 2

NOTICE:  BL31: v2.3():v2.3-135-gcda1658bc-dirty:xsf

NOTICE:  BL31: Built : 19:32:20, Jun  2 2021

INFO:    GICv3 without legacy support detected.

INFO:    ARM GICv3 driver initialized in EL3

INFO:    pmu v1 is valid

INFO:    dfs DDR fsp_param[0].freq_mhz= 1056MHz

INFO:    dfs DDR fsp_param[1].freq_mhz= 324MHz

INFO:    dfs DDR fsp_param[2].freq_mhz= 528MHz

INFO:    dfs DDR fsp_param[3].freq_mhz= 780MHz

INFO:    Using opteed sec cpu_context!

INFO:    boot cpu mask: 0

INFO:    BL31: Initializing runtime services

INFO:    BL31: Initializing BL32

I/TC:

I/TC: Start rockchip platform init

I/TC: Rockchip release version: 1.0

I/TC: OP-TEE version: 3.6.0-307-g0b06ae94 #1 Fri May  7 01:52:27 UTC 2021 aarch64

I/TC: Initialized

INFO:    BL31: Preparing for EL3 exit to normal world

INFO:    Entry point address = 0xa00000

INFO:    SPSR = 0x3c9

U-Boot 2017.09 (Jun 15 2021 - 16:55:48 +0000)

Model: Pine64 RK3566 Quartz64 Board

PreSerial: 2, raw, 0xfe660000

DRAM:  7.7 GiB

Sysmem: init

Relocation Offset: ed39f000, fdt: eb9f9f78

no mmc device at slot 1

dwmmc@fe2b0000: 1 (SD), dwmmc@fe2c0000: 2, sdhci@fe310000: 0

Bootdev(atags): mmc 1

MMC1: Legacy, 50Mhz

PartType: EFI

No misc partition

boot mode: None

FIT: No boot partition

No resource partition

Failed to load DTB

Failed to get kernel dtb, ret=-19

io-domain: OK

** Unable to use mmc 1:3 for loading the env **

Using default environment

Model: Pine64 RK3566 Quartz64 Board

rockchip_set_serialno: could not find efuse/otp device

CLK: (sync kernel. arm: enter 816000 KHz, init 816000 KHz, kernel 0N/A)

  apll 816000 KHz

  dpll 528000 KHz

  gpll 1188000 KHz

  cpll 1000000 KHz

  npll 24000 KHz

  vpll 24000 KHz

  hpll 24000 KHz

  ppll 100000 KHz

  armclk 816000 KHz

  aclk_bus 150000 KHz

  pclk_bus 50000 KHz

  aclk_top_high 300000 KHz

  aclk_top_low 200000 KHz

  hclk_top 150000 KHz

  pclk_top 50000 KHz

  aclk_perimid 300000 KHz

  hclk_perimid 150000 KHz

  pclk_pmu 50000 KHz

Net:  clk_get_by_name(master_bus) failed: -22eqos_probe_resources() failed: -22No ethernet found.

Hit key to stop autoboot('CTRL+C'):  0

## Booting FIT Image FIT: No boot partition

FIT: No FIT image

Could not find misc partition

ANDROID: reboot reason: "(none)"

optee api revision: 2.0

TEEC: Waring: Could not find security partition

Not AVB images, AVB skip

android_image_load_by_partname: Can't find part: boot

Android image load failed

Android boot failed, error -1.

switch to partitions #0, OK

mmc1 is current device

Scanning mmc 1:2...

Found /extlinux/extlinux.conf

Retrieving file: /extlinux/extlinux.conf

reading /extlinux/extlinux.conf

388 bytes read in 3 ms (126 KiB/s)

1:      Slarm64

Retrieving file: /Image

reading /Image

29239808 bytes read in 2429 ms (11.5 MiB/s)

append: root=/dev/mmcblk0p3 ro earlycon=uart8250,mmio32,0xfe660000 console=tty1 console=ttyS2,1500000n8 verbosity=8

Retrieving file: /dtb/rk3566-quartz64a.dtb

reading /dtb/rk3566-quartz64a.dtb

75961 bytes read in 11 ms (6.6 MiB/s)

Fdt Ramdisk skip relocation

## Flattened Device Tree blob at 0x0a100000

  Booting using the fdt blob at 0x0a100000

  'reserved-memory' ramoops@110000: addr=110000 size=f0000

  Using Device Tree in place at 000000000a100000, end 000000000a1158b8

Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)

Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)

Adding bank: 0x100000000 - 0x200000000 (size: 0x100000000)

Total: 2824.673 ms

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0000000000 [0x412fd050]

[    0.000000] Linux version 5.13.0-rc4-next-20210603 (root@slarm64-dev) (gcc (GCC) 10.3.0, GNU ld version 2.36.1-slack15) #1 SMP PREEMPT Fri Jul 16 22:40:47 UTC 2021

[    0.000000] Machine model: Pine64 RK3566 Quartz64-A Board

[    0.000000] earlycon: uart8250 at MMIO32 0x00000000fe660000 (options '')

[    0.000000] printk: bootconsole [uart8250] enabled

[    0.000000] efi: UEFI not found.

[    0.000000] OF: fdt: Reserved memory: failed to reserve memory for node 'drm-logo@00000000': base 0x0000000000000000, size 0 MiB

[    0.000000] Reserved memory: created CMA memory pool at 0x00000000a0000000, size 256 MiB

[    0.000000] OF: reserved mem: initialized node linux,cma@80000000, compatible id shared-dma-pool

[    0.000000] Zone ranges:

[    0.000000]  DMA      [mem 0x0000000000200000-0x00000000ffffffff]

[    0.000000]  DMA32    empty

[    0.000000]  Normal  [mem 0x0000000100000000-0x00000001ffffffff]

[    0.000000] Movable zone start for each node

[    0.000000] Early memory node ranges

[    0.000000]  node  0: [mem 0x0000000000200000-0x00000000083fffff]

[    0.000000]  node  0: [mem 0x0000000009400000-0x00000000efffffff]

[    0.000000]  node  0: [mem 0x0000000100000000-0x00000001ffffffff]

[    0.000000] Initmem setup node 0 [mem 0x0000000000200000-0x00000001ffffffff]

[    0.000000] psci: probing for conduit method from DT.

[    0.000000] psci: PSCIv1.1 detected in firmware.

[    0.000000] psci: Using standard PSCI v0.2 function IDs

[    0.000000] psci: Trusted OS migration not required

[    0.000000] psci: SMC Calling Convention v1.2

[    0.000000] percpu: Embedded 24 pages/cpu s57432 r8192 d32680 u98304

[    0.000000] Detected VIPT I-cache on CPU0

[    0.000000] CPU features: detected: GIC system register CPU interface

[    0.000000] CPU features: detected: Virtualization Host Extensions

[    0.000000] CPU features: detected: ARM errata 1165522, 1319367, or 1530923

[    0.000000] alternatives: patching kernel code

[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 1995336

[    0.000000] Kernel command line: root=/dev/mmcblk0p3 ro earlycon=uart8250,mmio32,0xfe660000 console=tty1 console=ttyS2,1500000n8 verbosity=8

[    0.000000] Unknown command line parameters: verbosity=8

[    0.000000] Dentry cache hash table entries: 1048576 (order: 11, 8388608 bytes, linear)

[    0.000000] Inode-cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)

[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off

[    0.000000] software IO TLB: mapped [mem 0x00000000ec000000-0x00000000f0000000] (64MB)

[    0.000000] Memory: 7585716K/8108032K available (17216K kernel code, 2058K rwdata, 6144K rodata, 3008K init, 1003K bss, 260172K reserved, 262144K cma-reserved)

[    0.000000] random: get_random_u64 called from cache_random_seq_create+0x84/0x180 with crng_init=0

[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1

[    0.000000] rcu: Preemptible hierarchical RCU implementation.

[    0.000000] rcu:    RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.

[    0.000000]  Trampoline variant of Tasks RCU enabled.

[    0.000000]  Tracing variant of Tasks RCU enabled.

[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.

[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4

[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0

[    0.000000] GICv3: GIC: Using split EOI/Deactivate mode

[    0.000000] GICv3: 320 SPIs implemented

[    0.000000] GICv3: 0 Extended SPIs implemented

[    0.000000] GICv3: Distributor has no Range Selector support

[    0.000000] Root IRQ handler: gic_handle_irq

[    0.000000] GICv3: 16 PPIs implemented

[    0.000000] GICv3: CPU0: found redistributor 0 region 0:0x00000000fd460000

[    0.000000] ITS [mem 0xfd440000-0xfd45ffff]

[    0.000000] GIC: enabling workaround for ITS: Rockchip RK3568 force no_local_cache

[    0.000000] ITS@0x00000000fd440000: allocated 8192 Devices @410000 (indirect, esz 8, psz 64K, shr 0)

[    0.000000] ITS@0x00000000fd440000: allocated 32768 Interrupt Collections @420000 (flat, esz 2, psz 64K, shr 0)

[    0.000000] ITS: using cache flushing for cmd queue

[    0.000000] ITS ALLOCATE PROP WORKAROUND

[    0.000000] GICv3: using LPI property table @0x0000000000430000

[    0.000000] GIC: using cache flushing for LPI property table

[    0.000000] GICv3: CPU0: using allocated LPI pending table @0x0000000000440000

[    0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (phys).

[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns

[    0.000001] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns

[    0.001628] Console: colour dummy device 80x25

[    0.002777] printk: console [tty1] enabled

[    0.003224] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000)

[    0.004223] pid_max: default: 32768 minimum: 301

[    0.004829] LSM: Security Framework initializing

[    0.005353] SELinux:  Initializing.

[    0.005914] Mount-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)

[    0.006694] Mountpoint-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)

[    0.009938] rcu: Hierarchical SRCU implementation.

[    0.011125] Platform MSI: interrupt-controller@fd440000 domain created

[    0.012133] PCI/MSI: /interrupt-controller@fd400000/interrupt-controller@fd440000 domain created

[    0.014732] EFI services will not be available.

[    0.015582] smp: Bringing up secondary CPUs ...

[    0.016820] Detected VIPT I-cache on CPU1

[    0.016867] GICv3: CPU1: found redistributor 100 region 0:0x00000000fd480000

[    0.016890] GICv3: CPU1: using allocated LPI pending table @0x0000000000450000

[    0.016959] CPU1: Booted secondary processor 0x0000000100 [0x412fd050]

[    0.017814] Detected VIPT I-cache on CPU2

[    0.017855] GICv3: CPU2: found redistributor 200 region 0:0x00000000fd4a0000

[    0.017876] GICv3: CPU2: using allocated LPI pending table @0x0000000000460000

[    0.017926] CPU2: Booted secondary processor 0x0000000200 [0x412fd050]

[    0.018806] Detected VIPT I-cache on CPU3

[    0.018843] GICv3: CPU3: found redistributor 300 region 0:0x00000000fd4c0000

[    0.018863] GICv3: CPU3: using allocated LPI pending table @0x0000000000470000

[    0.018906] CPU3: Booted secondary processor 0x0000000300 [0x412fd050]

[    0.019035] smp: Brought up 1 node, 4 CPUs

[    0.026489] SMP: Total of 4 processors activated.

[    0.026942] CPU features: detected: 32-bit EL0 Support

[    0.027435] CPU features: detected: 32-bit EL1 Support

[    0.027927] CPU features: detected: Data cache clean to the PoU not required for I/D coherence

[    0.028774] CPU features: detected: Common not Private translations

[    0.029378] CPU features: detected: CRC32 instructions

[    0.029873] CPU features: detected: RCpc load-acquire (LDAPR)

[    0.030424] CPU features: detected: LSE atomic instructions

[    0.030956] CPU features: detected: Privileged Access Never

[    0.031488] CPU features: detected: RAS Extension Support

[    0.032005] CPU features: detected: Speculative Store Bypassing Safe (SSBS)

[    0.068239] CPU: All CPU(s) started at EL2

[    0.072128] devtmpfs: initialized

[    0.089752] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns

[    0.090732] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)

[    0.101620] pinctrl core: initialized pinctrl subsystem

[    0.102993] DMI not present or invalid.

[    0.103954] NET: Registered protocol family 16

[    0.106193] DMA: preallocated 1024 KiB GFP_KERNEL pool for atomic allocations

[    0.107153] DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations

[    0.108320] DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations

[    0.109233] audit: initializing netlink subsys (disabled)

[    0.109991] audit: type=2000 audit(0.110:1): state=initialized audit_enabled=0 res=1

[    0.112056] thermal_sys: Registered thermal governor 'step_wise'

[    0.112465] cpuidle: using governor ladder

[    0.113468] cpuidle: using governor menu

[    0.114102] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.

[    0.114919] ASID allocator initialised with 65536 entries

[    0.116853] Serial: AMBA PL011 UART driver

[    0.118315] printk: console [ramoops-1] enabled

[    0.119099] pstore: Registered ramoops as persistent store backend

[    0.119701] ramoops: using 0xf0000@0x110000, ecc: 0

[    0.134355] platform fe0a0000.hdmi: Fixing up cyclic dependency with fe040000.vop

[    0.152161] rockchip-gpio fdd60000.gpio0: probed /pinctrl/gpio0@fdd60000

[    0.153670] rockchip-gpio fe740000.gpio1: probed /pinctrl/gpio1@fe740000

[    0.155016] rockchip-gpio fe750000.gpio2: probed /pinctrl/gpio2@fe750000

[    0.156329] rockchip-gpio fe760000.gpio3: probed /pinctrl/gpio3@fe760000

[    0.157640] rockchip-gpio fe770000.gpio4: probed /pinctrl/gpio4@fe770000

[    0.175308] HugeTLB registered 1.00 GiB page size, pre-allocated 0 pages

[    0.175987] HugeTLB registered 32.0 MiB page size, pre-allocated 0 pages

[    0.176632] HugeTLB registered 2.00 MiB page size, pre-allocated 0 pages

[    0.177276] HugeTLB registered 64.0 KiB page size, pre-allocated 0 pages

[    0.182034] cryptd: max_cpu_qlen set to 1000

[    0.359984] raid6: neonx8  gen()  1411 MB/s

[    0.530116] raid6: neonx8  xor()  1109 MB/s

[    0.700257] raid6: neonx4  gen()  1441 MB/s

[    0.870371] raid6: neonx4  xor()  1099 MB/s

[    1.040475] raid6: neonx2  gen()  1342 MB/s

[    1.210621] raid6: neonx2  xor()  1008 MB/s

[    1.380798] raid6: neonx1  gen()  1107 MB/s

[    1.550932] raid6: neonx1  xor()  811 MB/s

[    1.721108] raid6: int64x8  gen()  962 MB/s

[    1.891260] raid6: int64x8  xor()  514 MB/s

[    2.061442] raid6: int64x4  gen()  1052 MB/s

[    2.231614] raid6: int64x4  xor()  554 MB/s

[    2.401690] raid6: int64x2  gen()  943 MB/s

[    2.571810] raid6: int64x2  xor()  495 MB/s

[    2.741913] raid6: int64x1  gen()  698 MB/s

[    2.912027] raid6: int64x1  xor()  336 MB/s

[    2.912448] raid6: using algorithm neonx4 gen() 1441 MB/s

[    2.912970] raid6: .... xor() 1099 MB/s, rmw enabled

[    2.913449] raid6: using neon recovery algorithm

[    2.914164] ACPI: Interpreter disabled.

[    2.917043] iommu: Default domain type: Translated

[    2.917945] vgaarb: loaded

[    2.918868] SCSI subsystem initialized

[    2.919794] usbcore: registered new interface driver usbfs

[    2.920422] usbcore: registered new interface driver hub

[    2.920981] usbcore: registered new device driver usb

[    2.922134] pps_core: LinuxPPS API ver. 1 registered

[    2.922621] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>

[    2.923514] PTP clock support registered

[    2.923952] EDAC MC: Ver: 3.0.0

[    2.925431] FPGA manager framework

[    2.925904] Advanced Linux Sound Architecture Driver Initialized.

[    2.927291] NetLabel: Initializing

[    2.927632] NetLabel:  domain hash size = 128

[    2.928056] NetLabel:  protocols = UNLABELED CIPSOv4 CALIPSO

[    2.928673] NetLabel:  unlabeled traffic allowed by default

[    2.929737] clocksource: Switched to clocksource arch_sys_counter

[    2.930677] VFS: Disk quotas dquot_6.6.0

[    2.931134] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)

[    2.931920] FS-Cache: Loaded

[    2.932804] pnp: PnP ACPI: disabled

[    2.944752] NET: Registered protocol family 2

[    2.945636] IP idents hash table entries: 131072 (order: 8, 1048576 bytes, linear)

[    2.950653] tcp_listen_portaddr_hash hash table entries: 4096 (order: 4, 65536 bytes, linear)

[    2.951647] TCP established hash table entries: 65536 (order: 7, 524288 bytes, linear)

[    2.952925] TCP bind hash table entries: 65536 (order: 8, 1048576 bytes, linear)

[    2.954617] TCP: Hash tables configured (established 65536 bind 65536)

[    2.955472] UDP hash table entries: 4096 (order: 5, 131072 bytes, linear)

[    2.956296] UDP-Lite hash table entries: 4096 (order: 5, 131072 bytes, linear)

[    2.957415] NET: Registered protocol family 1

[    2.958598] RPC: Registered named UNIX socket transport module.

[    2.959180] RPC: Registered udp transport module.

[    2.959636] RPC: Registered tcp transport module.

[    2.960141] RPC: Registered tcp NFSv4.1 backchannel transport module.

[    2.960773] PCI: CLS 0 bytes, default 64

[    2.962481] hw perfevents: enabled with armv8_cortex_a55 PMU driver, 7 counters available

[    2.964022] kvm [1]: IPA Size Limit: 40 bits

[    2.964460] kvm [1]: GICv3: no GICV resource entry

[    2.964926] kvm [1]: disabling GICv2 emulation

[    2.965377] kvm [1]: GIC system register CPU interface enabled

[    2.966093] kvm [1]: vgic interrupt IRQ9

[    2.966878] kvm [1]: VHE mode initialized successfully

[    2.977979] Initialise system trusted keyrings

[    2.978686] workingset: timestamp_bits=46 max_order=21 bucket_order=0

[    2.988138] zbud: loaded

[    2.990724] squashfs: version 4.0 (2009/01/31) Phillip Lougher

[    2.991711] FS-Cache: Netfs 'nfs' registered for caching

[    2.992993] NFS: Registering the id_resolver key type

[    2.993515] Key type id_resolver registered

[    2.993924] Key type id_legacy registered

[    2.994433] nfs4filelayout_init: NFSv4 File Layout Driver Registering...

[    2.995083] nfs4flexfilelayout_init: NFSv4 Flexfile Layout Driver Registering...

[    2.995796] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).

[    2.998174] FS-Cache: Netfs 'cifs' registered for caching

[    2.999091] Key type cifs.spnego registered

[    2.999516] Key type cifs.idmap registered

[    3.000335] ntfs: driver 2.1.32 [Flags: R/W].

[    3.001591] JFS: nTxBlock = 8192, nTxLock = 65536

[    3.008557] SGI XFS with ACLs, security attributes, realtime, quota, no debug enabled

[    3.011928] ocfs2: Registered cluster interface o2cb

[    3.012670] OCFS2 User DLM kernel interface loaded

[    3.015238] gfs2: GFS2 installed

[    3.069083] xor: measuring software checksum speed

[    3.075885]    8regs          :  1567 MB/sec

[    3.081485]    32regs          :  1910 MB/sec

[    3.087717]    arm64_neon      :  1694 MB/sec

[    3.088141] xor: using function: 32regs (1910 MB/sec)

[    3.088640] Key type asymmetric registered

[    3.089039] Asymmetric key parser 'x509' registered

[    3.089509] Asymmetric key parser 'pkcs8' registered

[    3.090066] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 245)

[    3.090963] io scheduler mq-deadline registered

[    3.091411] io scheduler kyber registered

[    3.092026] io scheduler bfq registered

[    3.111558] Serial: 8250/16550 driver, 5 ports, IRQ sharing enabled

[    3.115244] fdd50000.serial: ttyS0 at MMIO 0xfdd50000 (irq = 23, base_baud = 1500000) is a 16550A

[    3.117437] fe650000.serial: ttyS1 at MMIO 0xfe650000 (irq = 50, base_baud = 1500000) is a 16550A

[    3.119304] fe660000.serial: ttyS2 at MMIO 0xfe660000 (irq = 51, base_baud = 1500000) is a 16550A

[    3.120464] printk: console [ttyS2] enabled

[    3.120464] printk: console [ttyS2] enabled

[    3.121248] printk: bootconsole [uart8250] disabled

[    3.121248] printk: bootconsole [uart8250] disabled

[    3.123426] Serial: AMBA driver

[    3.130304] cacheinfo: Unable to detect cache hierarchy for CPU 0

[    3.142304] brd: module loaded

[    3.154324] loop: module loaded

[    3.158707] libphy: Fixed MDIO Bus: probed

[    3.161307] rk_gmac-dwmac fe010000.ethernet: IRQ eth_lpi not found

[    3.162128] rk_gmac-dwmac fe010000.ethernet: no regulator found

[    3.162674] rk_gmac-dwmac fe010000.ethernet: clock input or output? (input).

[    3.163311] rk_gmac-dwmac fe010000.ethernet: Can not read property: tx_delay.

[    3.163950] rk_gmac-dwmac fe010000.ethernet: set tx_delay to 0x30

[    3.164502] rk_gmac-dwmac fe010000.ethernet: Can not read property: rx_delay.

[    3.165141] rk_gmac-dwmac fe010000.ethernet: set rx_delay to 0x10

[    3.165697] rk_gmac-dwmac fe010000.ethernet: integrated PHY? (no).

[    3.166300] rk_gmac-dwmac fe010000.ethernet: clock input from PHY

[    3.171867] rk_gmac-dwmac fe010000.ethernet: init for RGMII

[    3.172659] rk_gmac-dwmac fe010000.ethernet: User ID: 0x30, Synopsys ID: 0x51

[    3.173315] rk_gmac-dwmac fe010000.ethernet:        DWMAC4/5

[    3.173786] rk_gmac-dwmac fe010000.ethernet: DMA HW capability register supported

[    3.174460] rk_gmac-dwmac fe010000.ethernet: RX Checksum Offload Engine supported

[    3.175133] rk_gmac-dwmac fe010000.ethernet: TX Checksum insertion supported

[    3.175765] rk_gmac-dwmac fe010000.ethernet: Wake-Up On Lan supported

[    3.176426] rk_gmac-dwmac fe010000.ethernet: TSO supported

[    3.176929] rk_gmac-dwmac fe010000.ethernet: Enable RX Mitigation via HW Watchdog Timer

[    3.177651] rk_gmac-dwmac fe010000.ethernet: TSO feature enabled

[    3.178194] rk_gmac-dwmac fe010000.ethernet: Using 32 bits DMA width

[    3.178837] rk_gmac-dwmac fe010000.ethernet: Unbalanced pm_runtime_enable!

[    3.339763] libphy: stmmac: probed

[    3.340090] mdio_bus stmmac-1: ethernet-phy@0 has invalid PHY address

[    3.340675] mdio_bus stmmac-1: scan phy ethernet-phy at address 0

[    3.344898] VFIO - User Level meta-driver version: 0.3

[    3.355334] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver

[    3.355977] ehci-pci: EHCI PCI platform driver

[    3.356476] ehci-platform: EHCI generic platform driver

[    3.359451] ehci-platform fd800000.usb: EHCI Host Controller

[    3.360031] ehci-platform fd800000.usb: new USB bus registered, assigned bus number 1

[    3.360893] ehci-platform fd800000.usb: irq 18, io mem 0xfd800000

[    3.389769] ehci-platform fd800000.usb: USB 2.0 started, EHCI 1.00

[    3.390604] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.13

[    3.391358] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    3.392013] usb usb1: Product: EHCI Host Controller

[    3.392456] usb usb1: Manufacturer: Linux 5.13.0-rc4-next-20210603 ehci_hcd

[    3.393081] usb usb1: SerialNumber: fd800000.usb

[    3.394173] hub 1-0:1.0: USB hub found

[    3.394564] hub 1-0:1.0: 1 port detected

[    3.397711] ehci-platform fd880000.usb: EHCI Host Controller

[    3.398254] ehci-platform fd880000.usb: new USB bus registered, assigned bus number 2

[    3.399096] ehci-platform fd880000.usb: irq 20, io mem 0xfd880000

[    3.419797] ehci-platform fd880000.usb: USB 2.0 started, EHCI 1.00

[    3.420623] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.13

[    3.421378] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    3.422032] usb usb2: Product: EHCI Host Controller

[    3.422475] usb usb2: Manufacturer: Linux 5.13.0-rc4-next-20210603 ehci_hcd

[    3.423100] usb usb2: SerialNumber: fd880000.usb

[    3.424127] hub 2-0:1.0: USB hub found

[    3.424516] hub 2-0:1.0: 1 port detected

[    3.425680] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver

[    3.426265] ohci-pci: OHCI PCI platform driver

[    3.426775] ohci-platform: OHCI generic platform driver

[    3.427623] ohci-platform fd840000.usb: Generic Platform OHCI controller

[    3.428255] ohci-platform fd840000.usb: new USB bus registered, assigned bus number 3

[    3.429124] ohci-platform fd840000.usb: irq 19, io mem 0xfd840000

[    3.493953] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.13

[    3.494710] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    3.495364] usb usb3: Product: Generic Platform OHCI controller

[    3.495900] usb usb3: Manufacturer: Linux 5.13.0-rc4-next-20210603 ohci_hcd

[    3.496525] usb usb3: SerialNumber: fd840000.usb

[    3.497564] hub 3-0:1.0: USB hub found

[    3.497966] hub 3-0:1.0: 1 port detected

[    3.499015] ohci-platform fd8c0000.usb: Generic Platform OHCI controller

[    3.499647] ohci-platform fd8c0000.usb: new USB bus registered, assigned bus number 4

[    3.500524] ohci-platform fd8c0000.usb: irq 21, io mem 0xfd8c0000

[    3.573968] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.13

[    3.574722] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    3.575376] usb usb4: Product: Generic Platform OHCI controller

[    3.575912] usb usb4: Manufacturer: Linux 5.13.0-rc4-next-20210603 ohci_hcd

[    3.576537] usb usb4: SerialNumber: fd8c0000.usb

[    3.577569] hub 4-0:1.0: USB hub found

[    3.577960] hub 4-0:1.0: 1 port detected

[    3.580011] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[    3.580547] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 5

[    3.581387] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000000002010010

[    3.582295] xhci-hcd xhci-hcd.0.auto: irq 60, io mem 0xfcc00000

[    3.583263] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.13

[    3.584018] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    3.584673] usb usb5: Product: xHCI Host Controller

[    3.585116] usb usb5: Manufacturer: Linux 5.13.0-rc4-next-20210603 xhci-hcd

[    3.585743] usb usb5: SerialNumber: xhci-hcd.0.auto

[    3.586809] hub 5-0:1.0: USB hub found

[    3.587202] hub 5-0:1.0: 1 port detected

[    3.588003] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[    3.588521] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 6

[    3.589233] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed

[    3.590078] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.

[    3.590970] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.13

[    3.591724] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    3.592381] usb usb6: Product: xHCI Host Controller

[    3.592825] usb usb6: Manufacturer: Linux 5.13.0-rc4-next-20210603 xhci-hcd

[    3.593451] usb usb6: SerialNumber: xhci-hcd.0.auto

[    3.594488] hub 6-0:1.0: USB hub found

[    3.594877] hub 6-0:1.0: 1 port detected

[    3.595899] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[    3.596425] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 7

[    3.597257] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000000002010010

[    3.598164] xhci-hcd xhci-hcd.1.auto: irq 61, io mem 0xfd000000

[    3.599129] usb usb7: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.13

[    3.599929] usb usb7: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    3.600588] usb usb7: Product: xHCI Host Controller

[    3.601033] usb usb7: Manufacturer: Linux 5.13.0-rc4-next-20210603 xhci-hcd

[    3.601659] usb usb7: SerialNumber: xhci-hcd.1.auto

[    3.602705] hub 7-0:1.0: USB hub found

[    3.603098] hub 7-0:1.0: 1 port detected

[    3.603867] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[    3.604385] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 8

[    3.605088] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed

[    3.605760] usb usb8: We don't know the algorithms for LPM for this host, disabling LPM.

[    3.606626] usb usb8: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.13

[    3.607379] usb usb8: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    3.608033] usb usb8: Product: xHCI Host Controller

[    3.608478] usb usb8: Manufacturer: Linux 5.13.0-rc4-next-20210603 xhci-hcd

[    3.609104] usb usb8: SerialNumber: xhci-hcd.1.auto

[    3.610616] hub 8-0:1.0: USB hub found

[    3.611005] hub 8-0:1.0: 1 port detected

[    3.612023] usbcore: registered new interface driver usb-storage

[    3.612816] mousedev: PS/2 mouse device common for all mice

[    3.614324] i2c /dev entries driver

[    3.616876] fan53555-regulator 0-001c: FAN53555 Option[12] Rev[15] Detected!

[    3.618022] vdd_cpu: No configuration

[    3.618995] vdd_cpu: supplied by vcc3v8_sys

[    3.620254] vdd_cpu: No configuration

[    3.625571] rk808 0-0020: chip id: 0x8170

[    3.660318] random: fast init done

[    3.669466] rk808-regulator rk808-regulator: there is no dvs0 gpio

[    3.670116] rk808-regulator rk808-regulator: there is no dvs1 gpio

[    3.673113] vdd_logic: supplied by vcc3v8_sys

[    3.680700] vdd_gpu: supplied by vcc3v8_sys

[    3.685957] vcc_ddr: Bringing 500000uV into 1100000-1100000uV

[    3.690117] vcc_ddr: supplied by vcc3v8_sys

[    3.695729] vcc_3v3: supplied by vcc3v8_sys

[    3.701029] vcca1v8_pmu: supplied by vcc3v8_sys

[    3.706705] vdda_0v9: supplied by vcc3v8_sys

[    3.712031] vdda0v9_pmu: supplied by vcc3v8_sys

[    3.716911] vccio_acodec: Bringing 1800000uV into 3300000-3300000uV

[    3.720180] vccio_acodec: supplied by vcc3v8_sys

[    3.725395] vccio_sd: supplied by vcc3v8_sys

[    3.731227] vcc3v3_pmu: supplied by vcc3v8_sys

[    3.736923] vcc_1v8: supplied by vcc3v8_sys

[    3.741770] vcc1v8_dvp: supplied by vcc3v8_sys

[    3.746175] vcc2v8_dvp: Bringing 1800000uV into 2800000-2800000uV

[    3.749428] vcc2v8_dvp: supplied by vcc3v8_sys

[    3.753860] boost: Bringing 4700000uV into 5000000-5000000uV

[    3.757071] boost: supplied by vcc3v8_sys

[    3.762225] otg_switch: supplied by vcc5v_dummy

[    3.773047] sdhci: Secure Digital Host Controller Interface driver

[    3.773634] sdhci: Copyright(c) Pierre Ossman

[    3.774064] Synopsys Designware Multimedia Card Interface Driver

[    3.775325] sdhci-pltfm: SDHCI platform and OF driver helper

[    3.776399] dwmmc_rockchip fe2b0000.dwmmc: IDMAC supports 32-bit address mode.

[    3.776427] dwmmc_rockchip fe2c0000.dwmmc: IDMAC supports 32-bit address mode.

[    3.777121] dwmmc_rockchip fe2b0000.dwmmc: Using internal DMA controller.

[    3.777743] dwmmc_rockchip fe2c0000.dwmmc: Using internal DMA controller.

[    3.778338] dwmmc_rockchip fe2b0000.dwmmc: Version ID is 270a

[    3.778946] dwmmc_rockchip fe2c0000.dwmmc: Version ID is 270a

[    3.779517] dwmmc_rockchip fe2b0000.dwmmc: DW MMC controller at irq 45,32 bit host data width,256 deep fifo

[    3.780052] dwmmc_rockchip fe2c0000.dwmmc: DW MMC controller at irq 46,32 bit host data width,256 deep fifo

[    3.781814] ledtrig-cpu: registered to indicate activity on CPUs

[    3.782173] dwmmc_rockchip fe2b0000.dwmmc: Got CD GPIO

[    3.782960] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....

[    3.783808] dwmmc_rockchip fe2c0000.dwmmc: allocated mmc-pwrseq

[    3.783845] hid: raw HID events driver (C) Jiri Kosina

[    3.784359] mmc_host mmc2: card is non-removable.

[    3.785146] usbcore: registered new interface driver usbhid

[    3.785749] usbhid: USB HID core driver

[    3.793085] Initializing XFRM netlink socket

[    3.794257] NET: Registered protocol family 10

[    3.797062] mmc_host mmc0: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)

[    3.798461] Segment Routing with IPv6

[    3.799617] NET: Registered protocol family 17

[    3.800353] Key type dns_resolver registered

[    3.801234] registered taskstats version 1

[    3.801624] Loading compiled-in X.509 certificates

[    3.802364] zswap: loaded using pool lzo/zbud

[    3.803333] Key type ._fscrypt registered

[    3.803708] Key type .fscrypt registered

[    3.804067] Key type fscrypt-provisioning registered

[    3.805719] Btrfs loaded, crc32c=crc32c-generic, zoned=yes

[    3.806474] pstore: Using crash dump compression: deflate

[    3.808370] Key type encrypted registered

[    3.858644] pcie20_3v3: supplied by vcc_3v3

[    3.860156] pcie20_3v3_2: supplied by vcc_3v3

[    3.862207] rockchip-dw-pcie 3c0000000.pcie: host bridge /pcie@fe260000 ranges:

[    3.862921] rockchip-dw-pcie 3c0000000.pcie:      IO 0x033f700000..0x033f7fffff -> 0x007f700000

[    3.863731] rockchip-dw-pcie 3c0000000.pcie:      MEM 0x0300000000..0x033f6fffff -> 0x0040000000

[    3.864566] rockchip-dw-pcie 3c0000000.pcie: invalid resource

[    3.865107] rockchip-dw-pcie 3c0000000.pcie: iATU unroll: enabled

[    3.865657] rockchip-dw-pcie 3c0000000.pcie: Detected iATU regions: 8 outbound, 8 inbound

[    3.872557] mmc_host mmc0: Bus speed (slot 0) = 50000000Hz (slot req 50000000Hz, actual 50000000HZ div = 0)

[    3.893069] dwmmc_rockchip fe2b0000.dwmmc: Successfully tuned phase to 80

[    3.893707] mmc0: new ultra high speed SDR104 SDHC card at address 0001

[    3.895232] mmcblk0: mmc0:0001 EB1QT 29.8 GiB

[    3.902480]  mmcblk0: p1 p2 p3

[    3.910178] mmc_host mmc2: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)

[    4.979988] rockchip-dw-pcie 3c0000000.pcie: Phy link never came up

[    4.980778] rockchip-dw-pcie 3c0000000.pcie: PCI host bridge to bus 0000:00

[    4.981417] pci_bus 0000:00: root bus resource [bus 00-0f]

[    4.981923] pci_bus 0000:00: root bus resource [io  0x0000-0xfffff] (bus address [0x7f700000-0x7f7fffff])

[    4.982784] pci_bus 0000:00: root bus resource [mem 0x300000000-0x33f6fffff] (bus address [0x40000000-0x7f6fffff])

[    4.983755] pci 0000:00:00.0: [1d87:3566] type 01 class 0x060400

[    4.984326] pci 0000:00:00.0: reg 0x38: [mem 0x00000000-0x0000ffff pref]

[    4.985014] pci 0000:00:00.0: supports D1 D2

[    4.985408] pci 0000:00:00.0: PME# supported from D0 D1 D3hot

[    4.992069] pci_bus 0000:01: busn_res: can not insert [bus 01-ff] under [bus 00-0f] (conflicts with (null) [bus 00-0f])

[    4.998336] pci 0000:00:00.0: BAR 6: assigned [mem 0x300000000-0x30000ffff pref]

[    4.999024] pci 0000:00:00.0: PCI bridge to [bus 01-ff]

[    4.999665] irq: no irq domain found for legacy-interrupt-controller !

[    5.003431] pcieport 0000:00:00.0: PME: Signaling with IRQ 88

[    5.004457] pcieport 0000:00:00.0: AER: enabled with IRQ 97

[    5.023022] printk: console [netcon0] enabled

[    5.023454] netconsole: network logging started

[    5.025025] ALSA device list:

[    5.025325]  No soundcards found.

[    5.025960] dw-apb-uart fe660000.serial: forbid DMA for kernel console

[    5.041707] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: (null). Quota mode: none.

[    5.042703] VFS: Mounted root (ext4 filesystem) readonly on device 179:3.

[    5.044346] devtmpfs: mounted

[    5.046057] Freeing unused kernel memory: 3008K

[    5.079833] Run /sbin/init as init process

INIT: version 2.99 booting

mount: proc mounted on /proc.

mount: sysfs mounted on /sys.

mount: tmpfs mounted on /run.

Creating static nodes in /dev.

Starting udevd:  /sbin/udevd --daemon

[    6.354551] random: udevd: uninitialized urandom read (16 bytes read)

[    6.356748] random: udevd: uninitialized urandom read (16 bytes read)

[    6.357413] random: udevd: uninitialized urandom read (16 bytes read)

Triggering udev events:  /sbin/udevadm trigger --action=add

[    6.438215] udevd[470]: starting eudev-3.2.10

[    6.783001] rk808-rtc rk808-rtc: registered as rtc0

[    6.786364] rk808-rtc rk808-rtc: setting system clock to 2017-08-05T14:38:30 UTC (1501943910)

[    6.842339] optee: probing for conduit method.

[    6.842812] optee: revision 3.6 (0b06ae94)

[    6.848660] optee: initialized driver

[    6.862781] mmc1: SDHCI controller on fe310000.sdhci [fe310000.sdhci] using ADMA

Setting the system clock rate:  /sbin/adjtimex --tick 10000 --frequency 0

Setting system time from the hardware clock (localtime):  Sat Aug  5 14:38:31 UTC 2017

Testing root filesystem status:  read-only filesystem

Checking root filesystem:

fsck from util-linux 2.37

/dev/mmcblk0p3: clean, 164877/1941504 files, 1203295/7752443 blocks

Remounting root device with read-write enabled.

[    7.656763] EXT4-fs (mmcblk0p3): re-mounted. Opts: (null). Quota mode: none.

mount: /dev/mmcblk0p3 mounted on /.

Updating module dependency list for 5.13.0-rc4-next-20210603:  /sbin/depmod --quick

Configuring kernel parameters:  /sbin/sysctl -e --system

* Applying /etc/sysctl.d/10-ext4_tune.conf ...

vm.dirty_writeback_centisecs = 100

vm.dirty_expire_centisecs = 100

* Applying /etc/sysctl.d/swap.conf ...

vm.swappiness = 10

Checking non-root filesystems:

fsck from util-linux 2.37

Mounting non-root local filesystems:

tmpfs on /dev/shm type tmpfs (rw)

shm on /dev/shm type tmpfs (rw)

[    8.211689] Adding 131068k swap on /swap.  Priority:5 extents:10 across:237564k SSFS

Using /etc/random-seed to initialize /dev/urandom.

[    8.331695] urandom_read: 5 callbacks suppressed

[    8.331721] random: dd: uninitialized urandom read (512 bytes read)

INIT: Entering runlevel: 3

Going multiuser...

Updating shared library links:  /sbin/ldconfig &

setterm: cannot (un)set powersave mode: Inappropriate ioctl for device

Starting syslogd daemon:  /usr/sbin/syslogd -s

Updating hardware database index:  /sbin/udevadm hwdb --update

Triggering udev events:  /sbin/udevadm trigger --action=change

Starting the network interfaces...

eth0: polling for DHCP server

eth0: waiting for carrier

eth0: carrier acquired

DUID 00:01:00:01:21:18:84:8d:ea:3f:7c:5f:8a:a0

eth0: IAID 7c:5f:8a:a0

eth0: carrier lost

timed out

dhcpcd exited

Starting system message bus:  /usr/bin/dbus-uuidgen --ensure ; /usr/bin/dbus-daemon --system

Starting elogind:  /lib64/elogind/elogind --daemon

Starting OpenSSH SSH daemon:  /usr/sbin/sshd

devpts on /dev/pts type devpts (rw,noexec,nosuid,gid=5,mode=0620)

Starting NTP daemon:  /usr/sbin/ntpd -g -u ntp:ntp

Compiling GSettings XML schema files:

  /usr/bin/glib-compile-schemas /usr/share/glib-2.0/schemas &

Starting crond:  /usr/sbin/crond -l notice

Loading /usr/share/kbd/keymaps/i386/qwerty/us.map.gz

Running script /etc/rc.d/rc.local:

=======================================================================

if you want to transfer the system to SDcard to internal memory (eMMC or NAND),

follow transfer-to-disk

=======================================================================

slarm64 GNU/Linux (ttyS2)

Kernel 5.13.0-rc4-next-20210603 (aarch64)

quartz64 login:

mara · (This post was last modified: 07-18-2021, 12:59 AM by mara.)

kernel 5.13.0
slarm64-current-aarch64-server-quartz64-5.13.0-build-20210718.img.zst
slarm64-current-aarch64-server-quartz64-5.13.0-build-20210718.img.zst.sha256

**tllim** · 08-07-2021, 12:41 PM

(07-18-2021, 12:59 AM)mara Wrote: kernel 5.13.0
slarm64-current-aarch64-server-quartz64-5.13.0-build-20210718.img.zst
slarm64-current-aarch64-server-quartz64-5.13.0-build-20210718.img.zst.sha256

Thanks on porting Slackware to Quartz64 SBC :-)

mara · (This post was last modified: 08-20-2021, 09:30 PM by mara.)

kernel 5.14.0
slarm64-current-aarch64-server-quartz64-5.14.0-rc1-build-20210820.img.zst
slarm64-current-aarch64-server-quartz64-5.14.0-rc1-build-20210820.img.zst.sha256

mara · (This post was last modified: 10-10-2021, 06:37 AM by mara.)

kernel 4.19.209

Working

LAN
USB2
HDMI

slarm64-current-aarch64-server-quartz64-4.19.209-build-20211008.img.zst
slarm64-current-aarch64-server-quartz64-4.19.209-build-20211008.img.zst.sha256

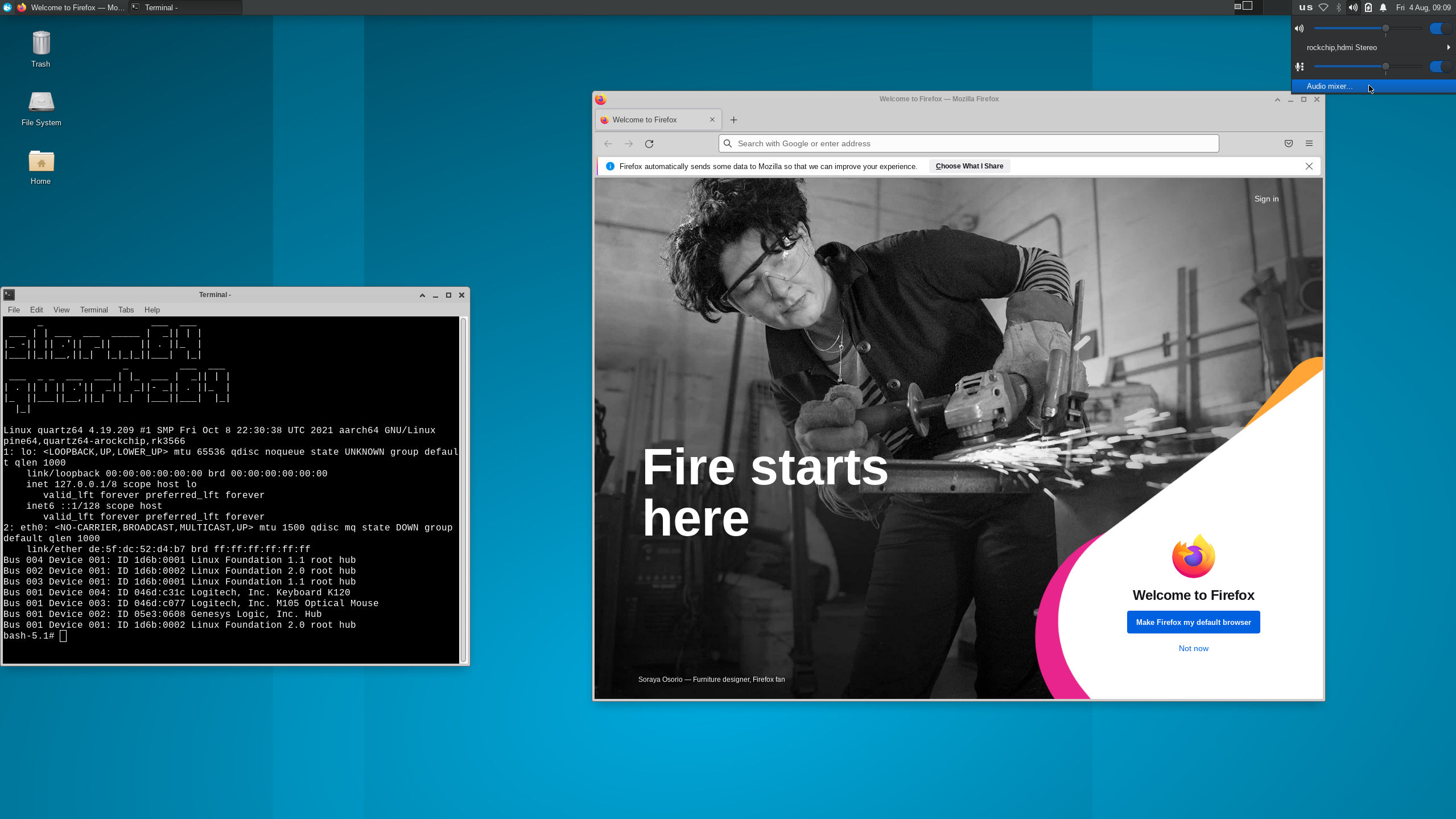

slarm64-current-aarch64-xfce-quartz64-4.19.209-build-20211008.img.zst
slarm64-current-aarch64-xfce-quartz64-4.19.209-build-20211008.img.zst.sha256

Code:
[    0.000000] Booting Linux on physical CPU 0x0000000000 [0x412fd050]

[    0.000000] Linux version 4.19.209 (root@slarm64-dev) (gcc version 11.2.0 (GCC), GNU ld version 2.37-slack15) #1 SMP Fri Oct 8 22:30:38 UTC 2021

[    0.000000] Machine model: Pine64 RK3566 Quartz64-A Board

[    0.000000] earlycon: uart8250 at MMIO32 0x00000000fe660000 (options '')

[    0.000000] bootconsole [uart8250] enabled

[    0.000000] OF: fdt: Reserved memory: failed to reserve memory for node 'drm-logo@00000000': base 0x0000000000000000, size 0 MiB

[    0.000000] OF: fdt: Reserved memory: failed to reserve memory for node 'drm-cubic-lut@00000000': base 0x0000000000000000, size 0 MiB

[    0.000000] cma: Reserved 16 MiB at 0x00000000ef000000

[    0.000000] On node 0 totalpages: 2031104

[    0.000000]   DMA32 zone: 15352 pages used for memmap

[    0.000000]   DMA32 zone: 0 pages reserved

[    0.000000]   DMA32 zone: 982528 pages, LIFO batch:63

[    0.000000]   Normal zone: 16384 pages used for memmap

[    0.000000]   Normal zone: 1048576 pages, LIFO batch:63

[    0.000000] psci: probing for conduit method from DT.

[    0.000000] psci: PSCIv1.1 detected in firmware.

[    0.000000] psci: Using standard PSCI v0.2 function IDs

[    0.000000] psci: MIGRATE_INFO_TYPE not supported.

[    0.000000] psci: SMC Calling Convention v1.2

[    0.000000] percpu: Embedded 23 pages/cpu s54376 r8192 d31640 u94208

[    0.000000] pcpu-alloc: s54376 r8192 d31640 u94208 alloc=23*4096

[    0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3

[    0.000000] Detected VIPT I-cache on CPU0

[    0.000000] CPU features: detected: Virtualization Host Extensions

[    0.000000] CPU features: detected: Speculative Store Bypassing Safe (SSBS)

[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 1999368

[    0.000000] Kernel command line: root=/dev/mmcblk0p3 ro rootwait rootfstype=ext4 init=/sbin/init loglevel=4 earlycon=uart8250,mmio32,0xfe660000 console=tty1 console=ttyFIQ0,1500000n8

[    0.000000] Dentry cache hash table entries: 1048576 (order: 11, 8388608 bytes)

[    0.000000] Inode-cache hash table entries: 524288 (order: 10, 4194304 bytes)

[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off

[    0.000000] software IO TLB: mapped [mem 0xeafff000-0xeefff000] (64MB)

[    0.000000] Memory: 7872728K/8124416K available (13886K kernel code, 2028K rwdata, 4876K rodata, 1600K init, 1799K bss, 235304K reserved, 16384K cma-reserved)

[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1

[    0.000000] ftrace: allocating 51020 entries in 200 pages

[    0.000000] rcu: Hierarchical RCU implementation.

[    0.000000] rcu:     RCU event tracing is enabled.

[    0.000000] rcu:     RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.

[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4

[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0

[    0.000000] GICv3: GIC: Using split EOI/Deactivate mode

[    0.000000] GICv3: Distributor has no Range Selector support

[    0.000000] GICv3: no VLPI support, no direct LPI support

[    0.000000] ITS [mem 0xfd440000-0xfd45ffff]

[    0.000000] ITS@0x00000000fd440000: allocated 8192 Devices @210000 (indirect, esz 8, psz 64K, shr 0)

[    0.000000] ITS@0x00000000fd440000: allocated 32768 Interrupt Collections @220000 (flat, esz 2, psz 64K, shr 0)

[    0.000000] ITS: using cache flushing for cmd queue

[    0.000000] GIC: using LPI property table @0x0000000000230000

[    0.000000] GICv3: CPU0: found redistributor 0 region 0:0x00000000fd460000

[    0.000000] CPU0: using LPI pending table @0x0000000000240000

[    0.000000] GIC: using cache flushing for LPI property table

[    0.000000] random: random: get_random_bytes called from start_kernel+0x358/0x4e0 with crng_init=0

[    0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (phys).

[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns

[    0.000006] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns

[    0.001358] Console: colour dummy device 80x25

[    0.001376] console [tty1] enabled

[    0.001420] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=80000)

[    0.001432] pid_max: default: 32768 minimum: 301

[    0.001647] Mount-cache hash table entries: 16384 (order: 5, 131072 bytes)

[    0.001691] Mountpoint-cache hash table entries: 16384 (order: 5, 131072 bytes)

[    0.003578] ASID allocator initialised with 32768 entries

[    0.003744] rcu: Hierarchical SRCU implementation.

[    0.006699] Platform MSI: interrupt-controller@fd440000 domain created

[    0.007190] PCI/MSI: /interrupt-controller@fd400000/interrupt-controller@fd440000 domain created

[    0.007940] smp: Bringing up secondary CPUs ...

[    0.008742] Detected VIPT I-cache on CPU1

[    0.008782] GICv3: CPU1: found redistributor 100 region 0:0x00000000fd480000

[    0.008838] CPU1: using LPI pending table @0x0000000000250000

[    0.008901] CPU1: Booted secondary processor 0x0000000100 [0x412fd050]

[    0.009905] Detected VIPT I-cache on CPU2

[    0.009939] GICv3: CPU2: found redistributor 200 region 0:0x00000000fd4a0000

[    0.009990] CPU2: using LPI pending table @0x0000000000260000

[    0.010036] CPU2: Booted secondary processor 0x0000000200 [0x412fd050]

[    0.010889] Detected VIPT I-cache on CPU3

[    0.010919] GICv3: CPU3: found redistributor 300 region 0:0x00000000fd4c0000

[    0.010972] CPU3: using LPI pending table @0x0000000000270000

[    0.011017] CPU3: Booted secondary processor 0x0000000300 [0x412fd050]

[    0.011154] smp: Brought up 1 node, 4 CPUs

[    0.011162] SMP: Total of 4 processors activated.

[    0.011169] CPU features: detected: GIC system register CPU interface

[    0.011173] CPU features: detected: Privileged Access Never

[    0.011176] CPU features: detected: LSE atomic instructions

[    0.011181] CPU features: detected: User Access Override

[    0.011185] CPU features: detected: 32-bit EL0 Support

[    0.011189] CPU features: detected: RAS Extension Support

[    0.011361] CPU: All CPU(s) started at EL2

[    0.011393] alternatives: patching kernel code

[    0.020057] devtmpfs: initialized

[    0.044801] Registered cp15_barrier emulation handler

[    0.044817] Registered setend emulation handler

[    0.045168] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns

[    0.045188] futex hash table entries: 1024 (order: 4, 65536 bytes)

[    0.046051] pinctrl core: initialized pinctrl subsystem

[    0.046396] regulator-dummy: no parameters

[    0.047172] NET: Registered protocol family 16

[    0.051480] cpuidle: using governor menu

[    0.051516] Registered FIQ tty driver

[    0.052068] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.

[    0.053871] DMA: preallocated 2048 KiB pool for atomic allocations

[    0.057664] console [pstore-1] enabled

[    0.057670] pstore: Registered ramoops as persistent store backend

[    0.057677] ramoops: attached 0xf0000@0x110000, ecc: 0/0

[    0.093813] rockchip-gpio fdd60000.gpio: probed gpio0 (fdd60000.gpio)

[    0.094560] rockchip-gpio fe740000.gpio: probed gpio1 (fe740000.gpio)

[    0.095251] rockchip-gpio fe750000.gpio: probed gpio2 (fe750000.gpio)

[    0.095968] rockchip-gpio fe760000.gpio: probed gpio3 (fe760000.gpio)

[    0.096660] rockchip-gpio fe770000.gpio: probed gpio4 (fe770000.gpio)

[    0.096774] rockchip-pinctrl pinctrl: probed pinctrl

[    0.112098] cryptd: max_cpu_qlen set to 1000

[    0.114018] console [ttyFIQ0] enabled

[    0.114024] bootconsole [uart8250] disabled

[    0.114313] Registered fiq debugger ttyFIQ0

[    0.114951] vcc5v0_host: 5000 mV

[    0.115208] reg-fixed-voltage vcc5v0_host: vcc5v0_host supplying 5000000uV

[    0.115343] vcc3v8_sys: 3800 mV

[    0.115593] reg-fixed-voltage vccsys: vcc3v8_sys supplying 3800000uV

[    0.115882] vcc_camera: no parameters

[    0.116111] reg-fixed-voltage vcc-camera-regulator: vcc_camera supplying 0uV

[    0.116359] vcc3v3_pcie_p: 3300 mV

[    0.116538] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.116553] vcc3v3_pcie_p: regulator get failed, ret=-517

[    0.116641] fbcon: Taking over console

[    0.116660] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.116673] vcc3v3_pcie_p: unable to resolve supply

[    0.116684] reg-fixed-voltage vcc3v3_pcie_p: vcc3v3_pcie_p supplying 3300000uV

[    0.117460] vcc_sd: 3300 mV

[    0.117771] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.117787] vcc3v3_pcie_p: unable to resolve supply

[    0.118364] rk_iommu fdea0800.iommu: version = 2

[    0.118826] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_vpu-supply from device tree

[    0.118853] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_vpu-supply property in node /power-management@fdd90000/power-controller failed

[    0.119046] rk_iommu fded0480.iommu: version = 2

[    0.119301] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_rga-supply from device tree

[    0.119325] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_rga-supply property in node /power-management@fdd90000/power-controller failed

[    0.119574] rk_iommu fdee0800.iommu: version = 2

[    0.120005] rk_iommu fdf40f00.iommu: version = 2

[    0.120310] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_rkvenc-supply from device tree

[    0.120334] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_rkvenc-supply property in node /power-management@fdd90000/power-controller failed

[    0.120517] rk_iommu fdf80800.iommu: version = 2

[    0.120789] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_rkvdec-supply from device tree

[    0.120814] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_rkvdec-supply property in node /power-management@fdd90000/power-controller failed

[    0.121025] rk_iommu fdff1a00.iommu: version = 2

[    0.121279] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_vi-supply from device tree

[    0.121304] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_vi-supply property in node /power-management@fdd90000/power-controller failed

[    0.121466] rk_iommu fe043e00.iommu: version = 2

[    0.122453] SCSI subsystem initialized

[    0.122511] libata version 3.00 loaded.

[    0.122760] usbcore: registered new interface driver usbfs

[    0.122820] usbcore: registered new interface driver hub

[    0.122881] usbcore: registered new device driver usb

[    0.122986] media: Linux media interface: v0.10

[    0.123032] videodev: Linux video capture interface: v2.00

[    0.123120] pps_core: LinuxPPS API ver. 1 registered

[    0.123126] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>

[    0.123146] PTP clock support registered

[    0.123530] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0

[    0.126272] Advanced Linux Sound Architecture Driver Initialized.

[    0.126865] Bluetooth: Core ver 2.22

[    0.126932] NET: Registered protocol family 31

[    0.126937] Bluetooth: HCI device and connection manager initialized

[    0.126951] Bluetooth: HCI socket layer initialized

[    0.126958] Bluetooth: L2CAP socket layer initialized

[    0.126996] Bluetooth: SCO socket layer initialized

[    0.127579] rockchip-cpuinfo cpuinfo: SoC            : 35661000

[    0.127589] rockchip-cpuinfo cpuinfo: Serial         : a9bbfa768e1e4946

[    0.128728] clocksource: Switched to clocksource arch_sys_counter

[    0.231898] thermal thermal_zone1: power_allocator: sustainable_power will be estimated

[    0.232355] NET: Registered protocol family 2

[    0.232804] IP idents hash table entries: 131072 (order: 8, 1048576 bytes)

[    0.237002] tcp_listen_portaddr_hash hash table entries: 4096 (order: 5, 163840 bytes)

[    0.237180] TCP established hash table entries: 65536 (order: 7, 524288 bytes)

[    0.237707] TCP bind hash table entries: 65536 (order: 9, 2097152 bytes)

[    0.239767] TCP: Hash tables configured (established 65536 bind 65536)

[    0.239940] UDP hash table entries: 4096 (order: 6, 393216 bytes)

[    0.240336] UDP-Lite hash table entries: 4096 (order: 6, 393216 bytes)

[    0.240923] NET: Registered protocol family 1

[    0.241602] RPC: Registered named UNIX socket transport module.

[    0.241608] RPC: Registered udp transport module.

[    0.241612] RPC: Registered tcp transport module.

[    0.241615] RPC: Registered tcp NFSv4.1 backchannel transport module.

[    0.242486] PCI: CLS 0 bytes, default 64

[    0.244675] hw perfevents: enabled with armv8_pmuv3 PMU driver, 7 counters available

[    0.247284] Initialise system trusted keyrings

[    0.247515] workingset: timestamp_bits=61 max_order=21 bucket_order=0

[    0.256248] squashfs: version 4.0 (2009/01/31) Phillip Lougher

[    0.257506] NFS: Registering the id_resolver key type

[    0.257535] Key type id_resolver registered

[    0.257540] Key type id_legacy registered

[    0.257559] nfs4filelayout_init: NFSv4 File Layout Driver Registering...

[    0.257565] nfs4flexfilelayout_init: NFSv4 Flexfile Layout Driver Registering...

[    0.257570] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).

[    0.258424] ntfs: driver 2.1.32 [Flags: R/O].

[    0.258692] jffs2: version 2.2. (NAND) \xc2\xa9 2001-2006 Red Hat, Inc.

[    0.259297] fuse init (API version 7.27)

[    0.259721] SGI XFS with security attributes, no debug enabled

[    0.263233] NET: Registered protocol family 38

[    0.263259] Key type asymmetric registered

[    0.263265] Asymmetric key parser 'x509' registered

[    0.263317] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 243)

[    0.263325] io scheduler noop registered

[    0.263330] io scheduler deadline registered

[    0.263491] io scheduler cfq registered (default)

[    0.263498] io scheduler mq-deadline registered

[    0.263503] io scheduler kyber registered

[    0.264745] rockchip-csi2-dphy csi2-dphy0: csi2 dphy0 probe successfully!

[    0.264912] rockchip-csi2-dphy-hw fe870000.csi2-dphy-hw: csi2 dphy hw probe successfully!

[    0.267406] phy phy-fe8a0000.usb2-phy.0: Looking up phy-supply from device tree

[    0.267430] vcc5v0_host: could not add device link phy-fe8a0000.usb2-phy.0 err -2

[    0.267488] phy phy-fe8a0000.usb2-phy.0: Linked as a consumer to regulator.1

[    0.267630] phy phy-fe8a0000.usb2-phy.1: Looking up phy-supply from device tree

[    0.267649] vcc5v0_host: could not add device link phy-fe8a0000.usb2-phy.1 err -2

[    0.267699] phy phy-fe8a0000.usb2-phy.1: Linked as a consumer to regulator.1

[    0.267808] phy phy-fe8a0000.usb2-phy.1: Looking up vbus-supply from device tree

[    0.267822] phy phy-fe8a0000.usb2-phy.1: Looking up vbus-supply property in node /usb2-phy@fe8a0000/otg-port failed

[    0.267840] phy phy-fe8a0000.usb2-phy.1: No vbus specified for otg port

[    0.269574] extcon extcon1: failed to create extcon usb2-phy link

[    0.269689] phy phy-fe8b0000.usb2-phy.2: Looking up phy-supply from device tree

[    0.269718] vcc5v0_host: could not add device link phy-fe8b0000.usb2-phy.2 err -2

[    0.269800] phy phy-fe8b0000.usb2-phy.2: Linked as a consumer to regulator.1

[    0.269942] phy phy-fe8b0000.usb2-phy.3: Looking up phy-supply from device tree

[    0.269961] vcc5v0_host: could not add device link phy-fe8b0000.usb2-phy.3 err -2

[    0.270013] phy phy-fe8b0000.usb2-phy.3: Linked as a consumer to regulator.1

[    0.270121] phy phy-fe8b0000.usb2-phy.3: Looking up vbus-supply from device tree

[    0.270135] phy phy-fe8b0000.usb2-phy.3: Looking up vbus-supply property in node /usb2-phy@fe8b0000/otg-port failed

[    0.270153] phy phy-fe8b0000.usb2-phy.3: No vbus specified for otg port

[    0.272538] phy phy-fe850000.video-phy.4: Looking up phy-supply from device tree

[    0.272554] phy phy-fe850000.video-phy.4: Looking up phy-supply property in node /video-phy@fe850000 failed

[    0.278664] rk-pcie 3c0000000.pcie: Looking up vpcie3v3-supply from device tree

[    0.278694] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.279293] pwm-backlight backlight: Looking up power-supply from device tree

[    0.279308] pwm-backlight backlight: Looking up power-supply property in node /backlight failed

[    0.279326] pwm-backlight backlight: backlight supply power not found, using dummy regulator

[    0.279418] pwm-backlight backlight: Linked as a consumer to regulator.0

[    0.279747] mpp_service mpp-srv: 7cf7399dd author: Stephen 2021-08-23 arm64: dts: rk3568-rock3a: enable pwm8 for fan

[    0.279754] mpp_service mpp-srv: probe start

[    0.280952] iommu: Adding device fdf40000.rkvenc to group 3

[    0.280981] mpp_rkvenc fdf40000.rkvenc: Linked as a consumer to fdf40f00.iommu

[    0.281243] mpp_rkvenc fdf40000.rkvenc: probing start

[    0.281840] mpp_rkvenc fdf40000.rkvenc: Looking up venc-supply from device tree

[    0.281856] mpp_rkvenc fdf40000.rkvenc: Looking up venc-supply property in node /rkvenc@fdf40000 failed

[    0.281875] mpp_rkvenc fdf40000.rkvenc: no regulator, devfreq is disabled

[    0.282360] mpp_rkvenc fdf40000.rkvenc: probing finish

[    0.283723] iommu: Adding device fdea0400.vdpu to group 0

[    0.283753] mpp_vdpu2 fdea0400.vdpu: Linked as a consumer to fdea0800.iommu

[    0.283976] mpp_vdpu2 fdea0400.vdpu: probe device

[    0.284756] mpp_vdpu2 fdea0400.vdpu: probing finish

[    0.285459] iommu: Adding device fdee0000.vepu to group 2

[    0.285488] mpp_vepu2 fdee0000.vepu: Linked as a consumer to fdee0800.iommu

[    0.285732] mpp_vepu2 fdee0000.vepu: probe device

[    0.286507] mpp_vepu2 fdee0000.vepu: probing finish

[    0.287501] iommu: Adding device fded0000.jpegd to group 1

[    0.287529] mpp_jpgdec fded0000.jpegd: Linked as a consumer to fded0480.iommu

[    0.287714] mpp_jpgdec fded0000.jpegd: probe device

[    0.288499] mpp_jpgdec fded0000.jpegd: probing finish

[    0.289190] iommu: Adding device fdf80200.rkvdec to group 4

[    0.289219] mpp_rkvdec2 fdf80200.rkvdec: Linked as a consumer to fdf80800.iommu

[    0.289526] mpp_rkvdec2 fdf80200.rkvdec: probing start

[    0.290181] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_a is not found!

[    0.290241] rkvdec2_init:875: No niu aclk reset resource define

[    0.290273] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_h is not found!

[    0.290299] rkvdec2_init:878: No niu hclk reset resource define

[    0.290775] mpp_rkvdec2 fdf80200.rkvdec: sram_start 0x00000000fdcc0000

[    0.290784] mpp_rkvdec2 fdf80200.rkvdec: rcb_iova 0x0000000010000000

[    0.290791] mpp_rkvdec2 fdf80200.rkvdec: sram_size 45056

[    0.290798] mpp_rkvdec2 fdf80200.rkvdec: rcb_size 65536

[    0.290807] mpp_rkvdec2 fdf80200.rkvdec: min_width 512

[    0.290839] mpp_rkvdec2 fdf80200.rkvdec: probing finish

[    0.291252] mpp_service mpp-srv: probe success

[    0.299170] dma-pl330 fe530000.dmac: Loaded driver for PL330 DMAC-241330

[    0.299184] dma-pl330 fe530000.dmac:         DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16

[    0.302485] dma-pl330 fe550000.dmac: Loaded driver for PL330 DMAC-241330

[    0.302497] dma-pl330 fe550000.dmac:         DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16

[    0.304863] rockchip-system-monitor rockchip-system-monitor: system monitor probe

[    0.306083] Serial: 8250/16550 driver, 10 ports, IRQ sharing disabled

[    0.306907] fdd50000.serial: ttyS0 at MMIO 0xfdd50000 (irq = 17, base_baud = 1500000) is a 16550A

[    0.307811] fe650000.serial: ttyS1 at MMIO 0xfe650000 (irq = 62, base_baud = 1500000) is a 16550A

[    0.311010] random: fast init done

[    0.311335] random: crng init done

[    0.312227] iommu: Adding device fe040000.vop to group 6

[    0.312267] rockchip-vop2 fe040000.vop: Linked as a consumer to fe043e00.iommu

[    0.318848] rockchip-drm display-subsystem: Linked as a consumer to fe040000.vop

[    0.320204] rockchip-drm display-subsystem: Linked as a consumer to fe0a0000.hdmi

[    0.320729] rockchip-drm display-subsystem: Linked as a consumer to fe060000.dsi

[    0.322392] rockchip-drm display-subsystem: defer getting devfreq

[    0.322736] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp0 assign plane mask: 0x0, primary plane phy id: -1

[    0.322753] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp1 assign plane mask: 0x0, primary plane phy id: -1

[    0.322767] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp2 assign plane mask: 0x0, primary plane phy id: -1

[    0.323110] [drm] unsupported AFBC format[3432564e]

[    0.323172] [drm] failed to init overlay plane Cluster0-win1

[    0.323243] [drm] failed to init overlay plane Cluster1-win1

[    0.323533] rockchip-drm display-subsystem: bound fe040000.vop (ops 0xffffff8008ef7890)

[    0.323786] dwhdmi-rockchip fe0a0000.hdmi: Detected HDMI TX controller v2.11a with HDCP (DWC HDMI 2.0 TX PHY)

[    0.324562] dwhdmi-rockchip fe0a0000.hdmi: registered DesignWare HDMI I2C bus driver

[    0.325457] rockchip-drm display-subsystem: bound fe0a0000.hdmi (ops 0xffffff8008efb8b0)

[    0.325514] dw-mipi-dsi fe060000.dsi: [drm:dw_mipi_dsi_bind] *ERROR* Failed to find panel or bridge: -517

[    0.333229] panel-simple-dsi fe060000.dsi.0: Looking up power-supply from device tree

[    0.333256] panel-simple-dsi fe060000.dsi.0: Looking up power-supply property in node /dsi@fe060000/panel@0 failed

[    0.333276] panel-simple-dsi fe060000.dsi.0: fe060000.dsi.0 supply power not found, using dummy regulator

[    0.333365] panel-simple-dsi fe060000.dsi.0: Linked as a consumer to regulator.0

[    0.333378] panel-simple-dsi fe060000.dsi.0: Looking up vsp-supply from device tree

[    0.333399] panel-simple-dsi fe060000.dsi.0: Looking up vsp-supply property in node /dsi@fe060000/panel@0 failed

[    0.333412] panel-simple-dsi fe060000.dsi.0: fe060000.dsi.0 supply vsp not found, using dummy regulator

[    0.333498] panel-simple-dsi fe060000.dsi.0: Looking up vsn-supply from device tree

[    0.333519] panel-simple-dsi fe060000.dsi.0: Looking up vsn-supply property in node /dsi@fe060000/panel@0 failed

[    0.333532] panel-simple-dsi fe060000.dsi.0: fe060000.dsi.0 supply vsn not found, using dummy regulator

[    0.334832] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_gpu-supply from device tree

[    0.334857] rockchip-pm-domain fdd90000.power-management:power-controller: Looking up pd_gpu-supply property in node /power-management@fdd90000/power-controller failed

[    0.334913] mali fde60000.gpu: Kernel DDK version g2p0-01eac0

[    0.335005] mali fde60000.gpu: Looking up mali-supply from device tree

[    0.335028] mali fde60000.gpu: Power management initialization failed error = -517

[    0.335111] mali fde60000.gpu: Device initialization Deferred

[    0.335668] cacheinfo: Unable to detect cache hierarchy for CPU 0

[    0.336626] brd: module loaded

[    0.345941] loop: module loaded

[    0.346526] zram: Added device: zram0

[    0.346680] lkdtm: No crash points registered, enable through debugfs

[    0.350516] libphy: Fixed MDIO Bus: probed

[    0.352030] clk: failed to reparent clk_gmac1_rx_tx to gmac1_clkin: -22

[    0.352636] rk_gmac-dwmac fe010000.ethernet: Looking up phy-supply from device tree

[    0.352661] rk_gmac-dwmac fe010000.ethernet: Looking up phy-supply property in node /ethernet@fe010000 failed

[    0.352683] rk_gmac-dwmac fe010000.ethernet: no regulator found

[    0.352734] rk_gmac-dwmac fe010000.ethernet: clock input or output? (input).

[    0.352743] rk_gmac-dwmac fe010000.ethernet: TX delay(0x4f).

[    0.352752] rk_gmac-dwmac fe010000.ethernet: RX delay(0x25).

[    0.352765] rk_gmac-dwmac fe010000.ethernet: integrated PHY? (no).

[    0.352827] rk_gmac-dwmac fe010000.ethernet: clock input from PHY

[    0.357846] rk_gmac-dwmac fe010000.ethernet: init for RGMII

[    0.358172] rk_gmac-dwmac fe010000.ethernet: User ID: 0x30, Synopsys ID: 0x51

[    0.358185] rk_gmac-dwmac fe010000.ethernet:         DWMAC4/5

[    0.358194] rk_gmac-dwmac fe010000.ethernet: DMA HW capability register supported

[    0.358201] rk_gmac-dwmac fe010000.ethernet: RX Checksum Offload Engine supported

[    0.358207] rk_gmac-dwmac fe010000.ethernet: TX Checksum insertion supported

[    0.358212] rk_gmac-dwmac fe010000.ethernet: Wake-Up On Lan supported

[    0.358261] rk_gmac-dwmac fe010000.ethernet: TSO supported

[    0.358269] rk_gmac-dwmac fe010000.ethernet: Enable RX Mitigation via HW Watchdog Timer

[    0.358277] rk_gmac-dwmac fe010000.ethernet: TSO feature enabled

[    0.488765] libphy: stmmac: probed

[    0.491884] usbcore: registered new interface driver rndis_wlan

[    0.491951] usbcore: registered new interface driver rtl8150

[    0.492013] usbcore: registered new interface driver r8152

[    0.492130] usbcore: registered new interface driver asix

[    0.492188] usbcore: registered new interface driver ax88179_178a

[    0.492237] usbcore: registered new interface driver cdc_ether

[    0.492298] usbcore: registered new interface driver rndis_host

[    0.492365] usbcore: registered new interface driver cdc_ncm

[    0.492414] usbcore: registered new interface driver cdc_mbim

[    0.493982] dwc3 fcc00000.dwc3: Failed to get clk 'ref': -2

[    0.503208] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver

[    0.503230] ehci-pci: EHCI PCI platform driver

[    0.503327] ehci-platform: EHCI generic platform driver

[    0.505484] ehci-platform fd800000.usb: EHCI Host Controller

[    0.505751] ehci-platform fd800000.usb: new USB bus registered, assigned bus number 1

[    0.506411] ehci-platform fd800000.usb: irq 12, io mem 0xfd800000

[    0.518751] ehci-platform fd800000.usb: USB 2.0 started, EHCI 1.00

[    0.519101] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 4.19

[    0.519112] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    0.519119] usb usb1: Product: EHCI Host Controller

[    0.519126] usb usb1: Manufacturer: Linux 4.19.209 ehci_hcd

[    0.519132] usb usb1: SerialNumber: fd800000.usb

[    0.519821] hub 1-0:1.0: USB hub found

[    0.519875] hub 1-0:1.0: 1 port detected

[    0.522676] ehci-platform fd880000.usb: EHCI Host Controller

[    0.522920] ehci-platform fd880000.usb: new USB bus registered, assigned bus number 2

[    0.523557] ehci-platform fd880000.usb: irq 14, io mem 0xfd880000

[    0.535433] ehci-platform fd880000.usb: USB 2.0 started, EHCI 1.00

[    0.535724] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 4.19

[    0.535735] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    0.535743] usb usb2: Product: EHCI Host Controller

[    0.535750] usb usb2: Manufacturer: Linux 4.19.209 ehci_hcd

[    0.535756] usb usb2: SerialNumber: fd880000.usb

[    0.536372] hub 2-0:1.0: USB hub found

[    0.536424] hub 2-0:1.0: 1 port detected

[    0.537399] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver

[    0.537422] ohci-platform: OHCI generic platform driver

[    0.537742] ohci-platform fd840000.usb: Generic Platform OHCI controller

[    0.538000] ohci-platform fd840000.usb: new USB bus registered, assigned bus number 3

[    0.538329] ohci-platform fd840000.usb: irq 13, io mem 0xfd840000

[    0.596353] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 4.19

[    0.596364] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    0.596372] usb usb3: Product: Generic Platform OHCI controller

[    0.596379] usb usb3: Manufacturer: Linux 4.19.209 ohci_hcd

[    0.596385] usb usb3: SerialNumber: fd840000.usb

[    0.597013] hub 3-0:1.0: USB hub found

[    0.597067] hub 3-0:1.0: 1 port detected

[    0.597791] ohci-platform fd8c0000.usb: Generic Platform OHCI controller

[    0.598030] ohci-platform fd8c0000.usb: new USB bus registered, assigned bus number 4

[    0.598390] ohci-platform fd8c0000.usb: irq 15, io mem 0xfd8c0000

[    0.656360] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 4.19

[    0.656370] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1

[    0.656378] usb usb4: Product: Generic Platform OHCI controller

[    0.656385] usb usb4: Manufacturer: Linux 4.19.209 ohci_hcd

[    0.656392] usb usb4: SerialNumber: fd8c0000.usb

[    0.657013] hub 4-0:1.0: USB hub found

[    0.657066] hub 4-0:1.0: 1 port detected

[    0.659108] usbcore: registered new interface driver cdc_acm

[    0.659113] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters

[    0.659186] usbcore: registered new interface driver cdc_wdm

[    0.659500] usbcore: registered new interface driver uas

[    0.659665] usbcore: registered new interface driver usb-storage

[    0.659804] usbcore: registered new interface driver usbserial_generic

[    0.659838] usbserial: USB Serial support registered for generic

[    0.659899] usbcore: registered new interface driver cp210x

[    0.659927] usbserial: USB Serial support registered for cp210x

[    0.660027] usbcore: registered new interface driver ftdi_sio

[    0.660063] usbserial: USB Serial support registered for FTDI USB Serial Device

[    0.660301] usbcore: registered new interface driver keyspan

[    0.660332] usbserial: USB Serial support registered for Keyspan - (without firmware)

[    0.660359] usbserial: USB Serial support registered for Keyspan 1 port adapter

[    0.660388] usbserial: USB Serial support registered for Keyspan 2 port adapter

[    0.660414] usbserial: USB Serial support registered for Keyspan 4 port adapter

[    0.660480] usbcore: registered new interface driver option

[    0.660509] usbserial: USB Serial support registered for GSM modem (1-port)

[    0.660845] usbcore: registered new interface driver oti6858

[    0.660883] usbserial: USB Serial support registered for oti6858

[    0.660944] usbcore: registered new interface driver pl2303

[    0.660980] usbserial: USB Serial support registered for pl2303

[    0.661054] usbcore: registered new interface driver qcserial

[    0.661085] usbserial: USB Serial support registered for Qualcomm USB modem

[    0.661174] usbcore: registered new interface driver sierra

[    0.661205] usbserial: USB Serial support registered for Sierra USB modem

[    0.663196] usbcore: registered new interface driver usbtouchscreen

[    0.663266] cyttsp5_loader_init: Parade TTSP FW Loader Driver (Built TTDA.03.08.874312) rc=0

[    0.663274] cyttsp5_device_access_init: Parade TTSP Device Access Driver (Built TTDA.03.08.874312) rc=0

[    0.664278] i2c /dev entries driver

[    0.666693] fan53555-regulator 0-001c: FAN53555 Option[12] Rev[15] Detected!

[    0.667206] vdd_cpu: override max_uV, 1390000 -> 1387500

[    0.669482] vdd_cpu: 712 <--> 1387 mV at 1025 mV

[    0.670193] fan53555-regulator 0-001c: Looking up vin-supply from device tree

[    0.670209] vdd_cpu: supplied by vcc3v8_sys

[    0.670868] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.670886] vcc3v3_pcie_p: unable to resolve supply

[    0.672405] rk808 0-0020: chip id: 0x8170

[    0.672461] rk808 0-0020: No cache defaults, reading back from HW

[    0.696247] rk808 0-0020: source: on=0x40, off=0x00

[    0.696263] rk808 0-0020: support dcdc3 fb mode:-22, 63

[    0.696273] rk808 0-0020: support pmic reset mode:0,0

[    0.705029] rk808-regulator rk808-regulator: there is no dvs0 gpio

[    0.705059] rk808-regulator rk808-regulator: there is no dvs1 gpio

[    0.705537] vdd_logic: 500 <--> 1350 mV at 900 mV

[    0.705790] rk808 0-0020: Looking up vcc1-supply from device tree

[    0.705807] vdd_logic: supplied by vcc3v8_sys

[    0.705971] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.705989] vcc3v3_pcie_p: unable to resolve supply

[    0.706428] vdd_gpu: 500 <--> 1350 mV at 900 mV

[    0.706646] rk808 0-0020: Looking up vcc2-supply from device tree

[    0.706661] vdd_gpu: supplied by vcc3v8_sys

[    0.706820] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.706838] vcc3v3_pcie_p: unable to resolve supply

[    0.706900] vcc_ddr: at 500 mV

[    0.707109] rk808 0-0020: Looking up vcc3-supply from device tree

[    0.707124] vcc_ddr: supplied by vcc3v8_sys

[    0.707278] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.707295] vcc3v3_pcie_p: unable to resolve supply

[    0.707372] vcc_3v3: 3300 mV

[    0.707576] rk808 0-0020: Looking up vcc4-supply from device tree

[    0.707590] vcc_3v3: supplied by vcc3v8_sys

[    0.707741] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.707759] vcc3v3_pcie_p: unable to resolve supply

[    0.707834] vcca1v8_pmu: 1800 mV

[    0.708025] rk808 0-0020: Looking up vcc5-supply from device tree

[    0.708038] vcca1v8_pmu: supplied by vcc3v8_sys

[    0.708181] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.708199] vcc3v3_pcie_p: unable to resolve supply

[    0.708636] vdda_0v9: 900 mV

[    0.708887] rk808 0-0020: Looking up vcc5-supply from device tree

[    0.708901] vdda_0v9: supplied by vcc3v8_sys

[    0.709024] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.709041] vcc3v3_pcie_p: unable to resolve supply

[    0.709120] vdda0v9_pmu: 900 mV

[    0.709333] rk808 0-0020: Looking up vcc5-supply from device tree

[    0.709347] vdda0v9_pmu: supplied by vcc3v8_sys

[    0.709470] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.709488] vcc3v3_pcie_p: unable to resolve supply

[    0.709557] vccio_acodec: Bringing 1800000uV into 3300000-3300000uV

[    0.709934] vccio_acodec: ramp_delay not set

[    0.710839] vccio_acodec: 3300 mV

[    0.711055] rk808 0-0020: Looking up vcc6-supply from device tree

[    0.711069] vccio_acodec: supplied by vcc3v8_sys

[    0.711191] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.711208] vcc3v3_pcie_p: unable to resolve supply

[    0.711652] vccio_sd: 1800 <--> 3300 mV at 3300 mV

[    0.711849] rk808 0-0020: Looking up vcc6-supply from device tree

[    0.711863] vccio_sd: supplied by vcc3v8_sys

[    0.712001] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.712018] vcc3v3_pcie_p: unable to resolve supply

[    0.712500] vcc3v3_pmu: 3300 mV

[    0.712703] rk808 0-0020: Looking up vcc6-supply from device tree

[    0.712717] vcc3v3_pmu: supplied by vcc3v8_sys

[    0.712856] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.712873] vcc3v3_pcie_p: unable to resolve supply

[    0.713320] vcc_1v8: 1800 mV

[    0.713523] rk808 0-0020: Looking up vcc7-supply from device tree

[    0.713537] vcc_1v8: supplied by vcc3v8_sys

[    0.713672] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.713689] vcc3v3_pcie_p: unable to resolve supply

[    0.714662] vcc1v8_dvp: 1800 mV

[    0.714872] rk808 0-0020: Looking up vcc7-supply from device tree

[    0.714886] vcc1v8_dvp: supplied by vcc3v8_sys

[    0.715021] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.715038] vcc3v3_pcie_p: unable to resolve supply

[    0.715117] vcc2v8_dvp: Bringing 1800000uV into 2800000-2800000uV

[    0.715492] vcc2v8_dvp: ramp_delay not set

[    0.716394] vcc2v8_dvp: 2800 mV

[    0.716601] rk808 0-0020: Looking up vcc7-supply from device tree

[    0.716615] vcc2v8_dvp: supplied by vcc3v8_sys

[    0.716732] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.716748] vcc3v3_pcie_p: unable to resolve supply

[    0.716828] boost: Bringing 4700000uV into 5000000-5000000uV

[    0.717193] boost: ramp_delay not set

[    0.718089] boost: 5000 mV

[    0.718303] rk808 0-0020: Looking up vcc8-supply from device tree

[    0.718317] boost: supplied by vcc3v8_sys

[    0.718438] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.718455] vcc3v3_pcie_p: unable to resolve supply

[    0.718530] otg_switch: no parameters

[    0.718760] rk808 0-0020: Looking up vcc9-supply from device tree

[    0.718784] otg_switch: supplied by boost

[    0.718907] reg-fixed-voltage vcc3v3_pcie_p: Looking up vin-supply from device tree

[    0.718925] vcc3v3_pcie_p: unable to resolve supply

[    0.719210] rk817-battery rk817-battery: DMA mask not set

[    0.719389] rk817-battery rk817-battery: fb_temperature missing!

[    0.719455] rk817-battery rk817-battery: energy_mode missing!

[    0.719485] rk817-battery rk817-battery: zero_reserve_dsoc missing!

[    0.720015] rk817-battery rk817-battery: low_power_sleep missing!

[    0.791256] thermal thermal_zone2: power_allocator: sustainable_power will be estimated

[    0.791644] rk817-charger rk817-charger: DMA mask not set

[    0.791733] rk817-charger rk817-charger: power_dc2otg missing!

[    0.791785] rk817-charger rk817-charger: sample_res missing!

[    0.791814] rk817-charger rk817-charger: otg5v_suspend_enable missing!

[    0.791839] rk817-charger rk817-charger: gate_function_disable missing!

[    0.792368] rk817-charger rk817-charger: Looking up otg_switch-supply from device tree

[    0.792382] rk817-charger rk817-charger: Looking up otg_switch-supply property in node /i2c@fdd40000/pmic@20/charger failed

[    0.792488] rk817-charger rk817-charger: Linked as a consumer to regulator.21

[    0.804660] input: rk805 pwrkey as /devices/platform/fdd40000.i2c/i2c-0/0-0020/rk805-pwrkey/input/input0

[    0.811449] rk808-rtc rk808-rtc: registered as rtc0

[    0.813212] rk808-rtc rk808-rtc: setting system clock to 2017-08-04 09:00:04 UTC (1501837204)

[    0.815877] rockchip-pinctrl pinctrl: pin gpio3-13 already requested by fe010000.ethernet; cannot claim for fe5c0000.i2c

[    0.815954] rockchip-pinctrl pinctrl: pin-109 (fe5c0000.i2c) status -22

[    0.815985] rockchip-pinctrl pinctrl: could not request pin 109 (gpio3-13) from group i2c3m1-xfer  on device rockchip-pinctrl

[    0.816039] rk3x-i2c fe5c0000.i2c: Error applying setting, reverse things back

[    0.816099] rk3x-i2c: probe of fe5c0000.i2c failed with error -22

[    0.816213] rockchip-pinctrl pinctrl: pin gpio3-11 already requested by fe010000.ethernet; cannot claim for fe5e0000.i2c

[    0.816258] rockchip-pinctrl pinctrl: pin-107 (fe5e0000.i2c) status -22

[    0.816304] rockchip-pinctrl pinctrl: could not request pin 107 (gpio3-11) from group i2c5m0-xfer  on device rockchip-pinctrl

[    0.816353] rk3x-i2c fe5e0000.i2c: Error applying setting, reverse things back

[    0.816406] rk3x-i2c: probe of fe5e0000.i2c failed with error -22

[    0.818889] iommu: Adding device fdff0000.rkisp to group 5

[    0.818923] rkisp_hw fdff0000.rkisp: Linked as a consumer to fdff1a00.iommu

[    0.819189] rkisp_hw fdff0000.rkisp: is_thunderboot: 0

[    0.819200] rkisp_hw fdff0000.rkisp: max input:0x0@0fps

[    0.819231] rkisp_hw fdff0000.rkisp: can't request region for resource [mem 0xfdff0000-0xfdffffff]

[    0.820384] rkisp rkisp-vir0: rkisp driver version: v01.06.01

[    0.820494] rkisp rkisp-vir0: No memory-region-thunderboot specified

[    0.820754] rkisp rkisp-vir0: Entity type for entity rkisp-isp-subdev was not initialized!

[    0.820773] rkisp rkisp-vir0: Entity type for entity rkisp-csi-subdev was not initialized!

[    0.823472] usbcore: registered new interface driver uvcvideo

[    0.823477] USB Video Class driver (1.1.1)

[    0.823835] rockchip-iodomain fdc20000.syscon:io-domains: Looking up pmuio1-supply from device tree

[    0.823952] rockchip-iodomain fdc20000.syscon:io-domains: Linked as a consumer to regulator.16

[    0.823989] rockchip-iodomain fdc20000.syscon:io-domains: pmuio1(3300000 uV) supplied by vcc3v3_pmu

[    0.824018] rockchip-iodomain fdc20000.syscon:io-domains: Looking up pmuio2-supply from device tree

[    0.824117] rockchip-iodomain fdc20000.syscon:io-domains: Linked as a consumer to regulator.10

[    0.824152] rockchip-iodomain fdc20000.syscon:io-domains: pmuio2(3300000 uV) supplied by vcc_3v3

[    0.824182] rockchip-iodomain fdc20000.syscon:io-domains: Looking up vccio1-supply from device tree

[    0.824261] rockchip-iodomain fdc20000.syscon:io-domains: Linked as a consumer to regulator.14

[    0.824293] rockchip-iodomain fdc20000.syscon:io-domains: vccio1(3300000 uV) supplied by vccio_acodec

[    0.824330] rockchip-iodomain fdc20000.syscon:io-domains: Looking up vccio2-supply from device tree

[    0.824409] rockchip-iodomain fdc20000.syscon:io-domains: Linked as a consumer to regulator.17

[    0.824440] rockchip-iodomain fdc20000.syscon:io-domains: vccio2(1800000 uV) supplied by vcc_1v8

[    0.824467] rockchip-iodomain fdc20000.syscon:io-domains: Looking up vccio3-supply from device tree

[    0.824566] rockchip-iodomain fdc20000.syscon:io-domains: Linked as a consumer to regulator.15

[    0.824600] rockchip-iodomain fdc20000.syscon:io-domains: vccio3(3300000 uV) supplied by vccio_sd

[    0.824630] rockchip-iodomain fdc20000.syscon:io-domains: Looking up vccio4-supply from device tree

[    0.824710] rockchip-iodomain fdc20000.syscon:io-domains: Linked as a consumer to regulator.11

[    0.824742] rockchip-iodomain fdc20000.syscon:io-domains: vccio4(1800000 uV) supplied by vcca1v8_pmu

[    0.824770] rockchip-iodomain fdc20000.syscon:io-domains: Looking up vccio5-supply from device tree

[    0.824860] rockchip-iodomain fdc20000.syscon:io-domains: vccio5(3300000 uV) supplied by vcc_3v3

[    0.824887] rockchip-iodomain fdc20000.syscon:io-domains: Looking up vccio6-supply from device tree

[    0.824989] rockchip-iodomain fdc20000.syscon:io-domains: Linked as a consumer to regulator.18

[    0.825024] rockchip-iodomain fdc20000.syscon:io-domains: vccio6(1800000 uV) supplied by vcc1v8_dvp

[    0.825054] rockchip-iodomain fdc20000.syscon:io-domains: Looking up vccio7-supply from device tree

[    0.825145] rockchip-iodomain fdc20000.syscon:io-domains: vccio7(3300000 uV) supplied by vcc_3v3

[    0.829775] rockchip-thermal fe710000.tsadc: tsadc is probed successfully!

[    0.831245] Bluetooth: HCI UART driver ver 2.3

[    0.831253] Bluetooth: HCI UART protocol H4 registered

[    0.831258] Bluetooth: HCI UART protocol ATH3K registered

[    0.831361] usbcore: registered new interface driver bfusb

[    0.831437] usbcore: registered new interface driver btusb

[    0.831856] cpu cpu0: leakage=26

[    0.831923] cpu cpu0: Looking up cpu-supply from device tree

[    0.832518] cpu cpu0: Linked as a consumer to regulator.6

[    0.859545] cpu cpu0: temp=33750, pvtm=88534 (88716 + -182)

[    0.862637] cpu cpu0: Dropping the link to regulator.6

[    0.862687] cpu cpu0: pvtm-volt-sel=1

[    0.863054] cpu cpu0: Looking up cpu-supply from device tree

[    0.863634] cpu cpu0: Linked as a consumer to regulator.6

[    0.863691] cpu cpu0: Dropping the link to regulator.6

[    0.863823] cpu cpu0: Looking up cpu-supply from device tree

[    0.864364] cpu cpu0: Linked as a consumer to regulator.6

[    0.865350] cpu cpu0: avs=0

[    0.865499] energy_model: pd0: hertz/watts ratio non-monotonically decreasing: em_cap_state 2 >= em_cap_state1

[    0.865751] energy_model: Created perf domain 0-3

[    0.865804] cpu cpu0: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0

[    0.870618] rockchip-pinctrl pinctrl: pin gpio0-16 already requested by fdd50000.serial; cannot claim for sdio-pwrseq

[    0.870702] rockchip-pinctrl pinctrl: pin-16 (sdio-pwrseq) status -22

[    0.870735] rockchip-pinctrl pinctrl: could not request pin 16 (gpio0-16) from group wifi-enable-h  on device rockchip-pinctrl

[    0.870786] pwrseq_simple sdio-pwrseq: Error applying setting, reverse things back

[    0.870845] pwrseq_simple: probe of sdio-pwrseq failed with error -22

[    0.871426] sdhci: Secure Digital Host Controller Interface driver

[    0.871430] sdhci: Copyright(c) Pierre Ossman

[    0.871434] Synopsys Designware Multimedia Card Interface Driver

[    0.872678] dwmmc_rockchip fe2b0000.dwmmc: IDMAC supports 32-bit address mode.

[    0.872970] dwmmc_rockchip fe2b0000.dwmmc: Using internal DMA controller.

[    0.872982] dwmmc_rockchip fe2b0000.dwmmc: Version ID is 270a

[    0.873038] dwmmc_rockchip fe2b0000.dwmmc: DW MMC controller at irq 48,32 bit host data width,256 deep fifo

[    0.873063] dwmmc_rockchip fe2b0000.dwmmc: Looking up vmmc-supply from device tree

[    0.873188] dwmmc_rockchip fe2b0000.dwmmc: Linked as a consumer to regulator.5

[    0.873197] dwmmc_rockchip fe2b0000.dwmmc: Looking up vqmmc-supply from device tree

[    0.873269] dwmmc_rockchip fe2b0000.dwmmc: Linked as a consumer to regulator.15

[    0.886519] mmc_host mmc0: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)

[    0.899833] dwmmc_rockchip fe2c0000.dwmmc: IDMAC supports 32-bit address mode.

[    0.900023] dwmmc_rockchip fe2c0000.dwmmc: Using internal DMA controller.

[    0.900034] dwmmc_rockchip fe2c0000.dwmmc: Version ID is 270a

[    0.900097] dwmmc_rockchip fe2c0000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo

[    0.900121] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply from device tree

[    0.900133] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply property in node /dwmmc@fe2c0000 failed

[    0.900167] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply from device tree

[    0.900175] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply property in node /dwmmc@fe2c0000 failed

[    0.900589] sdhci-pltfm: SDHCI platform and OF driver helper

[    0.901744] sdhci-dwcmshc fe310000.sdhci: Looking up vmmc-supply from device tree

[    0.901756] sdhci-dwcmshc fe310000.sdhci: Looking up vmmc-supply property in node /sdhci@fe310000 failed

[    0.901785] sdhci-dwcmshc fe310000.sdhci: Looking up vqmmc-supply from device tree

[    0.901792] sdhci-dwcmshc fe310000.sdhci: Looking up vqmmc-supply property in node /sdhci@fe310000 failed

[    0.901813] mmc2: Unknown controller version (5). You may experience problems.

[    0.925757] vccio_sd: ramp_delay not set

[    0.934165] mmc2: SDHCI controller on fe310000.sdhci [fe310000.sdhci] using ADMA

[    0.935321] ledtrig-cpu: registered to indicate activity on CPUs

[    0.935959] hidraw: raw HID events driver (C) Jiri Kosina

[    0.936352] usbcore: registered new interface driver usbhid

[    0.936355] usbhid: USB HID core driver

[    0.936643] rockchip,bus bus-npu: Looking up bus-supply from device tree

[    0.936712] rockchip,bus bus-npu: Linked as a consumer to regulator.7

[    0.936726] rockchip,bus bus-npu: Failed to get leakage

[    0.936822] rockchip,bus bus-npu: pvtm = 88534, form pvtm_value

[    0.936832] rockchip,bus bus-npu: pvtm-volt-sel=1

[    0.937027] rockchip,bus bus-npu: avs=0

[    0.939602] rockchip-saradc fe720000.saradc: Looking up vref-supply from device tree

[    0.939674] rockchip-saradc fe720000.saradc: Linked as a consumer to regulator.17

[    0.940334] optee: probing for conduit method from DT.

[    0.940339] optee: api uid mismatch

[    0.940343] rksfc_base v1.1 2016-01-08

[    0.941298] usbcore: registered new interface driver snd-usb-audio

[    0.943113] rk817-codec rk817-codec: DMA mask not set

[    0.948390] mmc_host mmc0: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0)

[    0.949853] Initializing XFRM netlink socket

[    0.950686] NET: Registered protocol family 10

[    0.952246] Segment Routing with IPv6

[    0.952344] NET: Registered protocol family 17

[    0.952380] NET: Registered protocol family 15

[    0.952546] Bluetooth: RFCOMM socket layer initialized

[    0.952615] Bluetooth: RFCOMM ver 1.11

[    0.952640] Bluetooth: HIDP (Human Interface Emulation) ver 1.2

[    0.952662] Bluetooth: HIDP socket layer initialized

[    0.952719] [BT_RFKILL]: Enter rfkill_rk_init

[    0.952722] [WLAN_RFKILL]: Enter rfkill_wlan_init

[    0.953596] [WLAN_RFKILL]: Enter rfkill_wlan_probe

[    0.953635] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi_chip_type = ap6255

[    0.953638] [WLAN_RFKILL]: wlan_platdata_parse_dt: enable wifi power control.

[    0.953641] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi power controled by gpio.

[    0.953672] [WLAN_RFKILL]: wlan_platdata_parse_dt: WIFI,host_wake_irq = 20, flags = 0.

[    0.953680] [WLAN_RFKILL]: wlan_platdata_parse_dt: The ref_wifi_clk not found !

[    0.953682] [WLAN_RFKILL]: rfkill_wlan_probe: init gpio

[    0.953687] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 1

[    0.953691] [WLAN_RFKILL]: Exit rfkill_wlan_probe

[    0.954258] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 77.

[    0.954280] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 17.

[    0.954290] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 12.

[    0.954300] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 11.

[    0.954363] [BT_RFKILL]: Request irq for bt wakeup host

[    0.954462] [BT_RFKILL]: ** disable irq

[    0.954584] [BT_RFKILL]: bt_default device registered.

[    0.954682] Key type dns_resolver registered

[    0.954947] flash vendor_init_thread!

[    0.954950] flash vendor storage:20170308 ret = -1

[    0.956245] Loading compiled-in X.509 certificates

[    0.956805] pstore: Using compression: deflate

[    0.957674] rga2: Driver loaded successfully ver:3.2.63318

[    0.957989] rga2: Module initialized.

[    0.987326] rockchip-drm display-subsystem: defer getting devfreq

[    0.987627] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp0 assign plane mask: 0x0, primary plane phy id: -1

[    0.987637] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp1 assign plane mask: 0x0, primary plane phy id: -1

[    0.987645] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp2 assign plane mask: 0x0, primary plane phy id: -1

[    0.987894] [drm] failed to init overlay plane Cluster0-win1

[    0.987931] [drm] failed to init overlay plane Cluster1-win1

[    0.988095] rockchip-drm display-subsystem: bound fe040000.vop (ops 0xffffff8008ef7890)

[    0.988277] dwhdmi-rockchip fe0a0000.hdmi: Detected HDMI TX controller v2.11a with HDCP (DWC HDMI 2.0 TX PHY)

[    0.989173] dwhdmi-rockchip fe0a0000.hdmi: registered DesignWare HDMI I2C bus driver

[    0.990840] rockchip-drm display-subsystem: bound fe0a0000.hdmi (ops 0xffffff8008efb8b0)

[    0.990893] rockchip-drm display-subsystem: bound fe060000.dsi (ops 0xffffff8008efc200)

[    0.990903] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).

[    0.990906] [drm] No driver support for vblank timestamp query.

[    0.991042] rockchip-drm display-subsystem: failed to parse loader memory

[    0.999125] rockchip-vop2 fe040000.vop: [drm:vop2_crtc_atomic_enable] Update mode to 1200x1920p60, type: 16 for vp1

[    0.999502] dw-mipi-dsi fe060000.dsi: [drm:dw_mipi_dsi_encoder_enable] final DSI-Link bandwidth: 996 x 4 Mbps

[    1.225657] dwmmc_rockchip fe2b0000.dwmmc: Successfully tuned phase to 270

[    1.225702] mmc0: new ultra high speed SDR104 SDHC card at address 0001

[    1.228838] mmcblk0: mmc0:0001 EB1QT 29.8 GiB

[    1.235404]  mmcblk0: p1 p2 p3

[    1.751642] Console: switching to colour frame buffer device 150x120

[    1.811379] rockchip-drm display-subsystem: fb0:  frame buffer device

[    1.812706] [drm] Initialized rockchip 2.0.0 20140818 for display-subsystem on minor 0

[    1.813214] mali fde60000.gpu: Kernel DDK version g2p0-01eac0

[    1.813329] mali fde60000.gpu: Looking up mali-supply from device tree

[    1.813427] mali fde60000.gpu: Linked as a consumer to regulator.8

[    1.813435] mali fde60000.gpu: Looking up shadercores-supply from device tree

[    1.813448] mali fde60000.gpu: Looking up shadercores-supply property in node /gpu@fde60000 failed

[    1.813521] mali fde60000.gpu: Looking up mali-supply from device tree

[    1.813546] vdd_gpu: could not add device link fde60000.gpu err -17

[    1.813556] vdd_gpu: Failed to create debugfs directory

[    1.813567] mali fde60000.gpu: Looking up shadercores-supply from device tree

[    1.813577] mali fde60000.gpu: Looking up shadercores-supply property in node /gpu@fde60000 failed

[    1.813596] mali fde60000.gpu: dev_pm_opp_set_regulators: no regulator (shadercores) found: -19

[    1.813919] mali fde60000.gpu: leakage=8

[    1.814517] mali fde60000.gpu: avs=0

[    1.814533] W : [File] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; [Line] : 112; [Func] : kbase_platform_rk_init(); power-off-delay-ms not available.

[    1.814992] mali fde60000.gpu: GPU identified as 0x2 arch 7.4.0 r1p0 status 0

[    1.815109] mali fde60000.gpu: No memory group manager is configured

[    1.815688] mali fde60000.gpu: l=-2147483648 h=2147483647 hyst=0 l_limit=0 h_limit=0 h_table=0

[    1.816691] mali fde60000.gpu: Probed as mali0

[    1.817975] input: adc-keys as /devices/platform/adc-keys/input/input1

[    1.819188] dwmmc_rockchip fe2c0000.dwmmc: IDMAC supports 32-bit address mode.

[    1.819461] dwmmc_rockchip fe2c0000.dwmmc: Using internal DMA controller.

[    1.819471] dwmmc_rockchip fe2c0000.dwmmc: Version ID is 270a

[    1.819504] dwmmc_rockchip fe2c0000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo

[    1.819524] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply from device tree

[    1.819535] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.819565] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply from device tree

[    1.819571] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.820235] rockchip-dmc dmc: Looking up center-supply from device tree

[    1.820332] rockchip-dmc dmc: Linked as a consumer to regulator.7

[    1.820345] of_clk_hw_onecell_get: invalid index 3

[    1.820474] ERROR: could not get clock /dmc:dmc_clk(0)

[    1.820575] rockchip-dmc dmc: Cannot get the clk dmc_clk. If using SCMI, trusted firmware need update to V1.01 and above.

[    1.820791] rockchip-dmc dmc: Dropping the link to regulator.7

[    1.820817] rockchip-dmc: probe of dmc failed with error -2

[    1.822012] asoc-simple-card hdmi-sound: i2s-hifi <-> fe400000.i2s mapping ok

[    1.828441] asoc-simple-card rk817-sound: rk817-hifi <-> fe410000.i2s mapping ok

[    1.830889] dwmmc_rockchip fe2c0000.dwmmc: IDMAC supports 32-bit address mode.

[    1.831099] dwmmc_rockchip fe2c0000.dwmmc: Using internal DMA controller.

[    1.831108] dwmmc_rockchip fe2c0000.dwmmc: Version ID is 270a

[    1.831142] dwmmc_rockchip fe2c0000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo

[    1.831163] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply from device tree

[    1.831174] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.831203] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply from device tree

[    1.831209] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.833039] dwmmc_rockchip fe2c0000.dwmmc: IDMAC supports 32-bit address mode.

[    1.833363] dwmmc_rockchip fe2c0000.dwmmc: Using internal DMA controller.

[    1.833374] dwmmc_rockchip fe2c0000.dwmmc: Version ID is 270a

[    1.833406] dwmmc_rockchip fe2c0000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo

[    1.833426] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply from device tree

[    1.833437] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.833463] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply from device tree

[    1.833470] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.835652] rockchip_headset rk-headset: Can not read property hook_gpio

[    1.835669] rockchip_headset rk-headset: headset have hook adc mode

[    1.835875] input: rk-headset as /devices/platform/rk-headset/input/input2

[    1.837019] cfg80211: Loading compiled-in X.509 certificates for regulatory database

[    1.838542] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'

[    1.838648] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2

[    1.838654] cfg80211: failed to load regulatory.db

[    1.839682] dwmmc_rockchip fe2c0000.dwmmc: IDMAC supports 32-bit address mode.

[    1.839800] rockchip-pm rockchip-suspend: not set pwm-regulator-config

[    1.840026] dwmmc_rockchip fe2c0000.dwmmc: Using internal DMA controller.

[    1.840036] dwmmc_rockchip fe2c0000.dwmmc: Version ID is 270a

[    1.840075] dwmmc_rockchip fe2c0000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo

[    1.840095] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply from device tree

[    1.840109] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.840139] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply from device tree

[    1.840145] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.840472] I : [File] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; [Line] : 413; [Func] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '23:09:19', on 'Oct  8 2021'.

[    1.840905] Mali:

[    1.840907] Mali device driver loaded

[    1.840918] rkisp rkisp-vir0: clear unready subdev num: 2

[    1.840925] rockchip-csi2-dphy0: No link between dphy and sensor

[    1.841423] rockchip-csi2-dphy0: No link between dphy and sensor

[    1.841427] rkisp-vir0: update sensor failed

[    1.841720] ALSA device list:

[    1.841723]   #0: rockchip,hdmi

[    1.841726]   #1: rockchip,rk817-codec

[    1.842171] dwmmc_rockchip fe2c0000.dwmmc: IDMAC supports 32-bit address mode.

[    1.842457] dwmmc_rockchip fe2c0000.dwmmc: Using internal DMA controller.

[    1.842466] dwmmc_rockchip fe2c0000.dwmmc: Version ID is 270a

[    1.842502] dwmmc_rockchip fe2c0000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo

[    1.842521] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply from device tree

[    1.842533] dwmmc_rockchip fe2c0000.dwmmc: Looking up vmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.842561] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply from device tree

[    1.842567] dwmmc_rockchip fe2c0000.dwmmc: Looking up vqmmc-supply property in node /dwmmc@fe2c0000 failed

[    1.848350] EXT4-fs (mmcblk0p3): mounted filesystem without journal. Opts: (null)

[    1.848401] VFS: Mounted root (ext4 filesystem) readonly on device 179:3.

[    1.849263] devtmpfs: mounted

[    1.852209] Freeing unused kernel memory: 1600K

[    1.872223] Run /sbin/init as init process

[    1.919710] devfreq fde60000.gpu: Couldn't update frequency transition information.

[    1.992164] headset_interrupt:get pin level again, pin=148,i=0

[    1.992309] (headset in is low level)headset status is in

[    2.165622] phy phy-fe8a0000.usb2-phy.1: charger = USB_DCP_CHARGER

[    2.371172] udevd[193]: starting eudev-3.2.10

[    3.049589] EXT4-fs (mmcblk0p3): Remounting file system with no journal so ignoring journalled data option

[    3.051804] EXT4-fs (mmcblk0p3): re-mounted. Opts: data=writeback,errors=remount-ro

[    3.181336] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)

mara · 10-10-2021, 01:45 PM

Working

LAN
USB2
HDMI

slarm64-current-aarch64-server-quartz64-4.19.210-build-20211010.img.zst
slarm64-current-aarch64-server-quartz64-4.19.210-build-20211010.img.zst.sha256
slarm64-current-aarch64-xfce-quartz64-4.19.210-build-20211010.img.zst
slarm64-current-aarch64-xfce-quartz64-4.19.210-build-20211010.img.zst.sha256

dieselnutjob · 11-13-2021, 12:56 PM

(10-10-2021, 01:45 PM)mara Wrote: Working
LAN

USB2

HDMI

slarm64-current-aarch64-server-quartz64-4.19.210-build-20211010.img.zst
slarm64-current-aarch64-server-quartz64-4.19.210-build-20211010.img.zst.sha256
slarm64-current-aarch64-xfce-quartz64-4.19.210-build-20211010.img.zst
slarm64-current-aarch64-xfce-quartz64-4.19.210-build-20211010.img.zst.sha256

I tried the "xfce-quartz64-4.19.210" one on both MicroSD card and eMMC module, but I couldn't get them to finish booting.

However the "server-quartz64-4.19.210" one works very nicely on a MicroSD card. The only comment I have is that "reboot" doesn't work. I had to either chop the power or long press the power button to get it back.

Anyway I want to give you a massive thanks for doing this because I managed to adapt your image to boot on a noname tablet that I bought and I can now boot your slackware image from the microSD card of that. This is a big win for me. Thanks!

mara · (This post was last modified: 11-13-2021, 03:50 PM by mara.)

(11-13-2021, 12:56 PM)dieselnutjob Wrote: I tried the "xfce-quartz64-4.19.210" one on both MicroSD card and eMMC module, but I couldn't get them to finish booting.

However the "server-quartz64-4.19.210" one works very nicely on a MicroSD card. The only comment I have is that "reboot" doesn't work. I had to either chop the power or long press the power button to get it back.

Anyway I want to give you a massive thanks for doing this because I managed to adapt your image to boot on a noname tablet that I bought and I can now boot your slackware image from the microSD card of that. This is a big win for me. Thanks!

xfce image is built similarly to the server, should it work the same, and is there a jumper on the battery contacts?

I checked the хfce image is loaded fine. The only thing after the first reboot is to physically remove the power supply (not with a button), in this bootloader any reboot will get stuck on the bootloader.

dieselnutjob · 11-13-2021, 04:19 PM

can I dd your xfce image straight to an eMMC card?

mara · 11-13-2021, 04:37 PM

(11-13-2021, 04:19 PM)dieselnutjob Wrote: can I dd your xfce image straight to an eMMC card?

anyway, you just need to change the name of the root partition in /etc/fstab and /boot/uEnv.txt

Possibly Related Threads…
Thread		Author	Replies	Views	Last Post
	irradium (based on crux linux) Quartz64 riscv64, aarch64	mara	4	1,326	11-20-2024, 10:45 AM Last Post: mara
	USB on Quartz64 Zero	litbulb	0	137	11-13-2024, 08:16 AM Last Post: litbulb
	Armbian and LibreELEC and AltLinux for Quartz64	balbes150	149	86,043	10-25-2024, 01:53 PM Last Post: gounthar
	DietPi OS for Quartz64	MichaIng	47	21,918	08-08-2024, 07:42 AM Last Post: ifreislich
	quartz64-a - on-board SATA port problems	manning	2	1,861	09-14-2023, 04:22 PM Last Post: manning
	How the reset Quartz64-b onboard memory (emmc)	beepy	2	1,469	07-20-2023, 10:44 PM Last Post: beepy
	crux-arm Quartz64 RK3566 (aarch64)	mara	5	6,051	10-29-2022, 06:55 AM Last Post: mara
	Ov5647 camera attached via csi to Quartz64 /Soquartz	Randomuser	0	1,547	07-21-2022, 01:08 PM Last Post: Randomuser
	Armbian on Quartz64	dieselnutjob	34	33,103	03-17-2022, 06:29 AM Last Post: balbes150

Login




Remember me Lost Password?

About Us
