Has the Pine worked with your HDMI display?
Everything I hooked it to worked!
26.42%
14
Some screens/cables worked for me.
33.96%
18
Nothing has worked so far.
39.62%
21
53 vote(s)
* You voted for this item. [Show Results]

HDMI issues
#31
(06-22-2016, 07:48 AM)lenny.raposo-pine64.pro Wrote: If you do uname -r does the kernel list 3.10.65 or 3.10.101 or higher?

have you executed the following after first boot?

sudo resize_rootfs.sh && reboot
sudo pine64_update_uboot.sh && reboot
sudo pine64_update_kernel.sh && reboot

and finally

sudo apt-get install sunxi-disp-tool
reboot

That should get it to work

you may also want to add the following to the end of your uEnv.txt to lower the display resolution to 720p (hopefully your screen supports this mode)

sudo -i
echo 'optargs=disp.screen0_output_mode=720p60' >> /boot/uEnv.txt
reboot

Let me know how it went Wink

I can't get the image with sunxi-disp-tool to boot.
  Reply
#32
I have 2 ODROID-C2 SBC's each using 7 inch touchscreens with the Mali driver on Ubuntu ARM64 16.04.
Setting 800x480 resolution is as easy as uncommenting it in /boot/boot.ini.
On PINEA64+ I haven't found a way to get other than 1920x1080 by adding a line to /boot/uEnv.txt and I don't see a file I can change.
Is this hardcoded and why?
  Reply
#33
I'm having this issue with the weird colors. I've tried different HDMI cables, different TV's, Remix OS, Android and Debian.
It looks fine, and then all of a sudden it screws up.

This is depressing! Everything works fine, so far. Besides this color issue. Hopefully it doesn't happen with the Touch panel I bought with the Pine64. Seems like my "mini computer" will turn into a "mini bulky tablet"...
  Reply
#34
(07-11-2016, 12:07 PM)kthomsen Wrote: I'm having this issue with the weird colors. I've tried different HDMI cables, different TV's, Remix OS, Android and Debian.
It looks fine, and then all of a sudden it screws up.

This is depressing! Everything works fine, so far. Besides this color issue. Hopefully it doesn't happen with the Touch panel I bought with the Pine64. Seems like my "mini computer" will turn into a "mini bulky tablet"...

Strangely I am having that same problem on a ODROID-C2 where I booted off a new SD card yesterday, no idea what the cause is.
The PINE A64+ is fine on a 7 inch touchscreen, just that stuck with 1920x1080 display, screen can only be read using a magnifier.
  Reply
#35

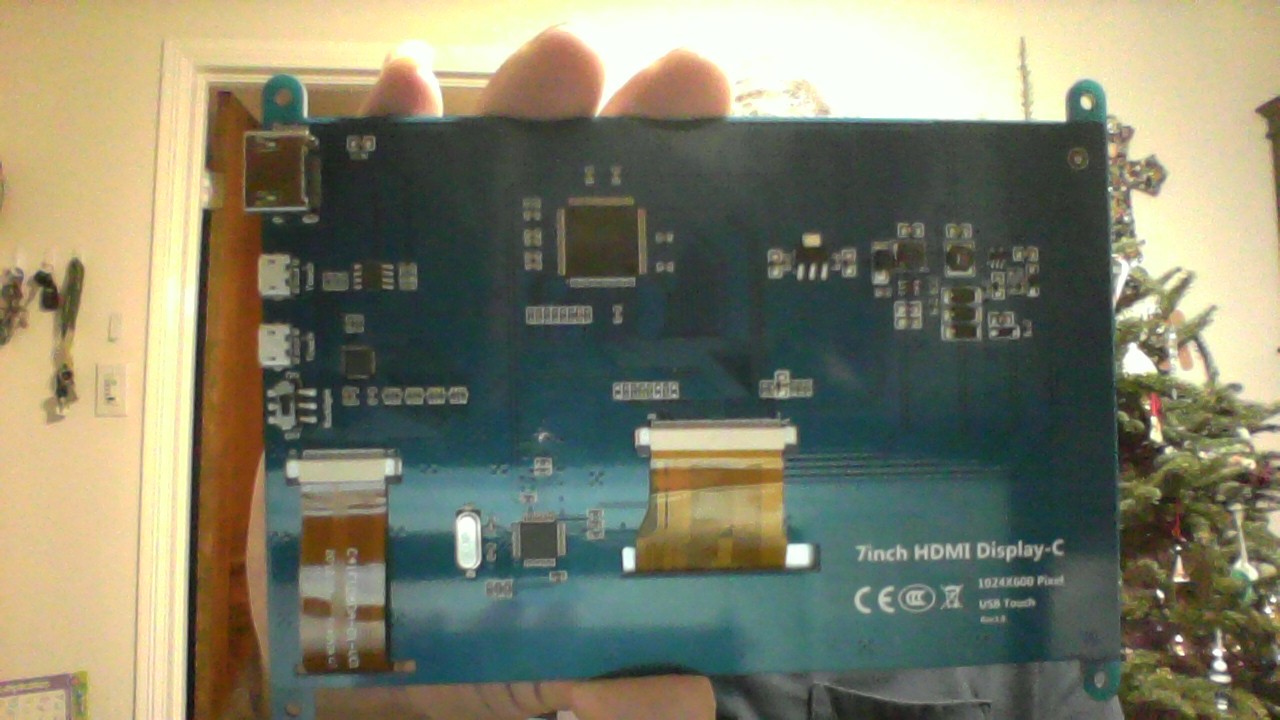

Hello All, I have the 2Gb board with WiFi/BT add-on. Using an Android image I can connect to most monitors. But I trying out a 7" Rasipberry Pi HDMI 1024x600 touch display. When display connected to Laptop HDMI Port display works fine but trying it on Pine board I get on display. Display powered by separate usb connection so I had it connect to a 5v brick. Board powered on and screen back light came on but not display on screen. connected pine to known good hdmi ported monitor and it worked. move cable back to Pi Display and no image.

If my Laptop can work with the Pi Display why cant pine64 work with it?
  Reply
#36
Seems it was thought that only a large screen would be used when one of the main reasons for quite a few people would be to reduce the real estate taken up.
A small SBC tied to a behemoth is limiting.
I have 2 ODROID-C2's with 7 inch touch screens, one is used in a standalone HF Amateur bands transceiver and the other one with HDMI sound is on the LAN and used by another HF transceiver.
I have 2 other 7 inch touch screens, one I would like to use with the PINE A64+.
  Reply
