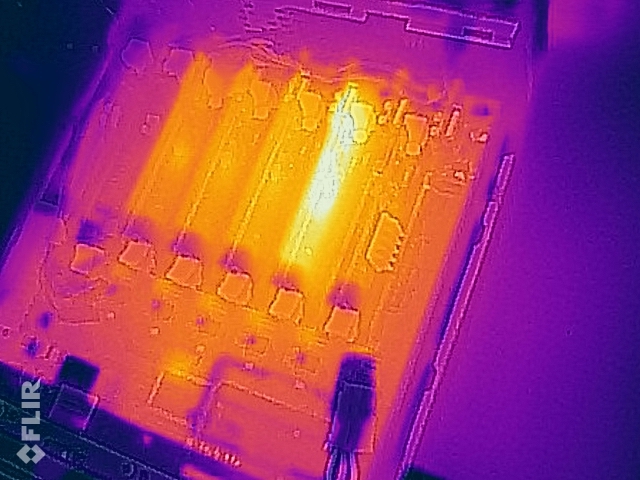

sopine cluster thermal images
#1
So it look like I have a failing module Undecided

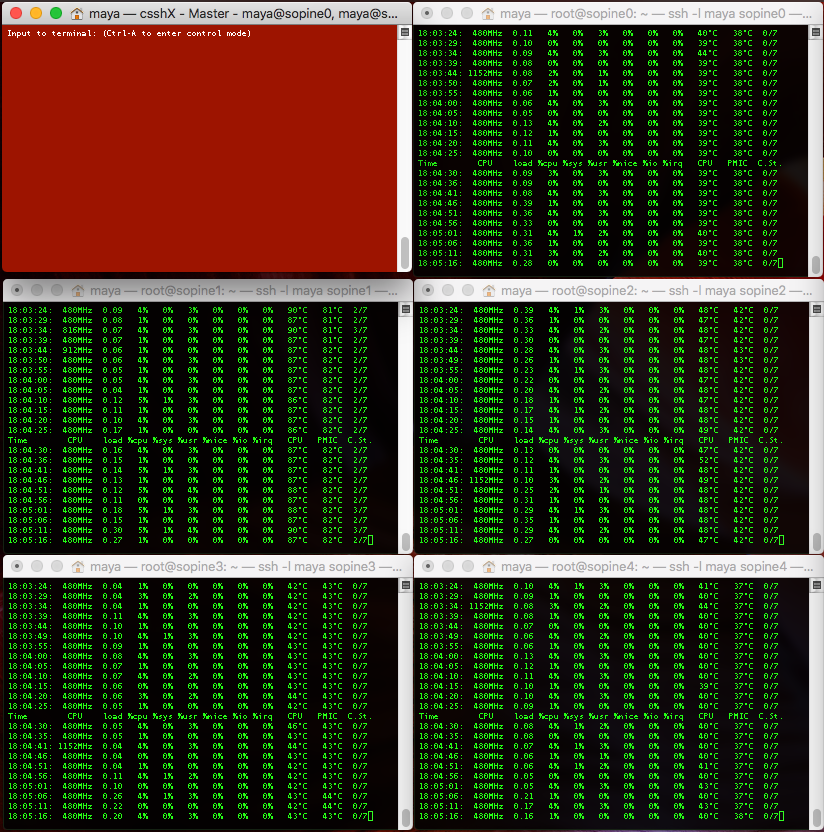

They're in order from right to left 0 through 4, and sopine1 is running stupidly hot despite not doing anything as confirmed by the terminal screen cap. The outside modules are the coolest, while 2 and 3 are taking some extra heat.



Fans and forced air are on the way. Heatsinks are at the office, but sopine1 looks like it's toast (sic)
  Reply
#2
I wish IR cameras were cheaper. I've been wanting one since I started building printers. I wonder why that module is generating so much heat.
  Reply
#3
bummer :/ you sure its the module that's failing - does it also get hot on the stock baseboard ?
You can find me on IRC, Discord and Twitter


  Reply
#4
(12-29-2017, 02:16 PM)Luke Wrote: bummer :/ you sure its the module that's failing - does it also get hot on the stock baseboard ?

sadly it's the module, on the baseboard it heats up to over 90C and then goes into thermal shut-down.
  Reply
#5
(12-29-2017, 02:26 PM)maya.b Wrote:
(12-29-2017, 02:16 PM)Luke Wrote: bummer :/ you sure its the module that's failing - does it also get hot on the stock baseboard ?

sadly it's the module, on the baseboard it heats up to over 90C and then goes into thermal shut-down.

Ah well, then RIP Sad
You can find me on IRC, Discord and Twitter


  Reply
