PinePhone constantly vibrating and won't take charge
#1
Hi

Recently I attempted a PinePhone screen repair and when I tried to power the phone on again the screen worked but the phone was constantly vibrating and wouldn't take charge, any ideas as to what the problem could be?

Thanks
  Reply
#2
(03-23-2021, 05:52 AM)ncc Wrote: i read here somewhere that this may be caused by shorting the cable to the motor.. maybe you have squeezed the cable at the gap while closing the inner frame
What would the solution to that be? Do I have to replace any parts?
  Reply
#3
(03-23-2021, 06:47 AM)ncc Wrote: i would open the innerframe and look for a pinched cable..
How would I identify that sorry?
  Reply
#4
(03-23-2021, 06:49 AM)ImmyChan Wrote:
(03-23-2021, 06:47 AM)ncc Wrote: i would open the innerframe and look for a pinched cable..
How would I identify that sorry?

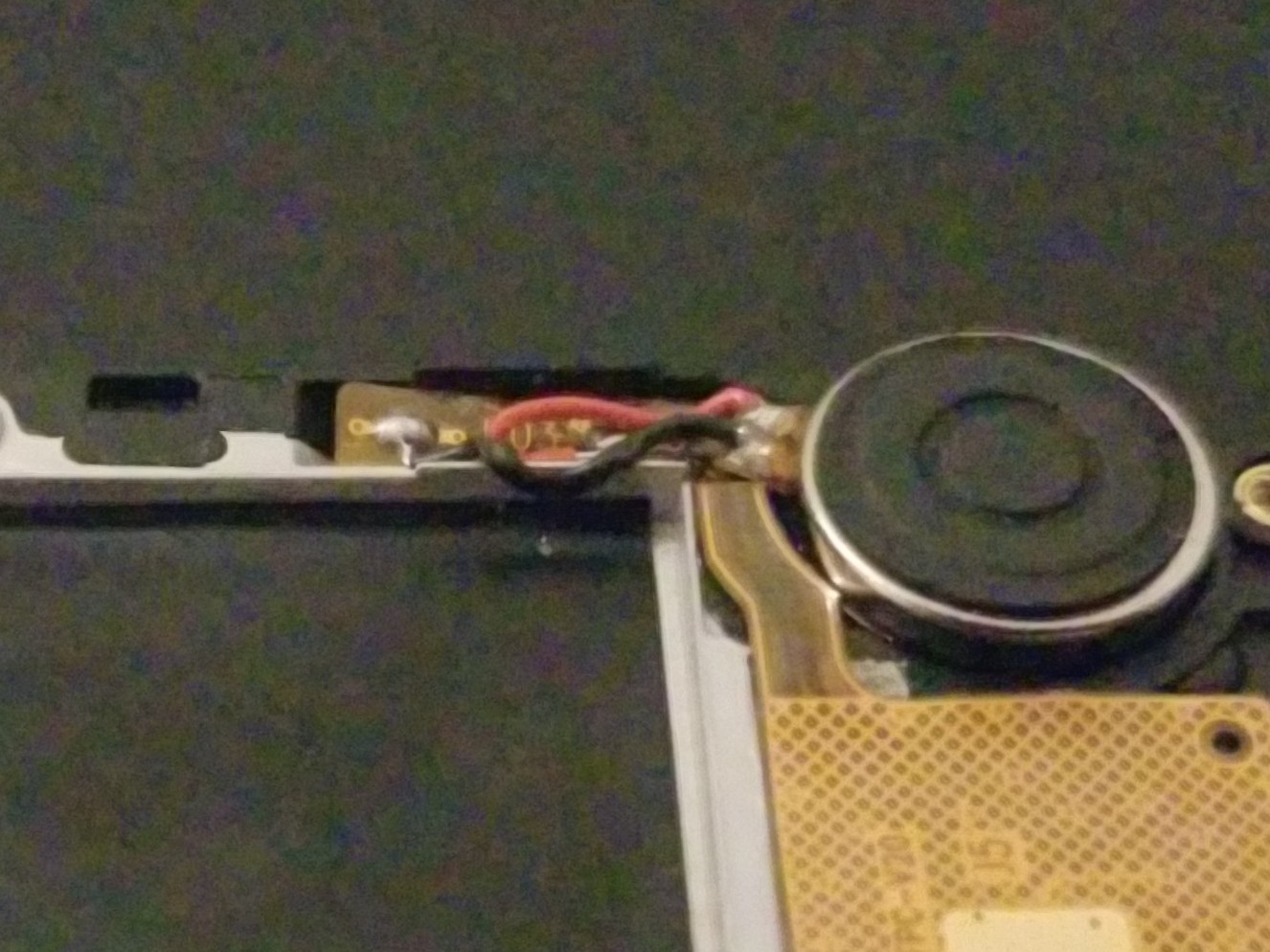

Please check the attached photo location for constant vibration. For no charge, possible the flex cable between USB-C side (daughter) board and mainboard doesn't snap in properly


  Reply
#5
I know this post is pretty old but figured this was worth sharing in case other people run into a similar problem.

When I first got my Pinephone Pro I didn't read the manual and plugged it in, and it just vibrated endlessly, only then did I read the manual and read the part about disconnecting the tape from the battery that blocked the contacts. So it seems that happens whenever there's no connection to the battery, maybe something got broken s.t. the battery got severed
  Reply
#6
I know this post is kind of old but I think it's worth sharing in case anyone runs into a similar problem.
When I first got my smartphone I tried plugging it in and it just vibrated endlessly, only then did I read the manual and removed the tape from the battery that prevented it from touching the contacts.  So it seems that it constantly vibrates when plugged in and there's no connection to the battery, maybe you broke something s.t. the connection to the battery got severed.
  Reply
