07-03-2020, 12:50 PM
I just finished a 3D model of the PinePhone done in blender you can use freely for your projects, for example for renderings.
Mind that the whole back side should be accurate as the CAD files released by Pine64 were used. However the front side is not perfectly accurate, angles of the screen and the screen glass were estimated so use with caution when using the file to create equipment such as cases or similar (you have been warned!).
The .blend file can be found under: https://www.thingiverse.com/thing:4520124 (the forum's file attachment quota doesn't allow me to upload it here).
There are two glass parts, one is the LCD on the front and one is the protection plate of the camera on the backside. These parts do actually have a glass shader and objects behind them.

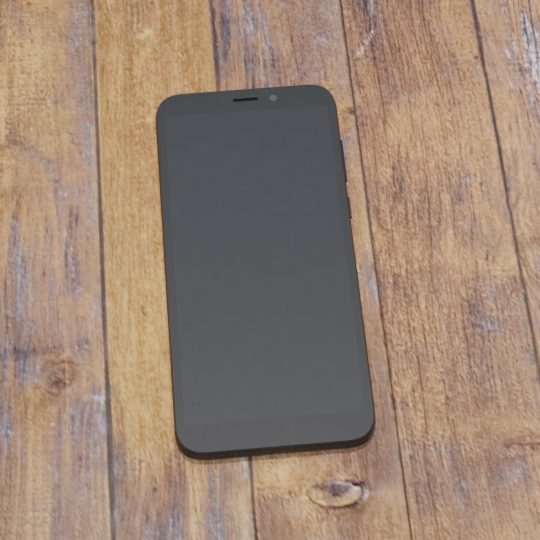

Example renderings:
If you have wishes or need adjustments such as logos or certain angles please don't hesitate to contact me.
