Rock64 power consumption
tllim
Founder
*****
Moderators
Joined: Dec 2015
Posts: 4,376

Reputation: 295
#18
01-15-2018, 10:51 PM

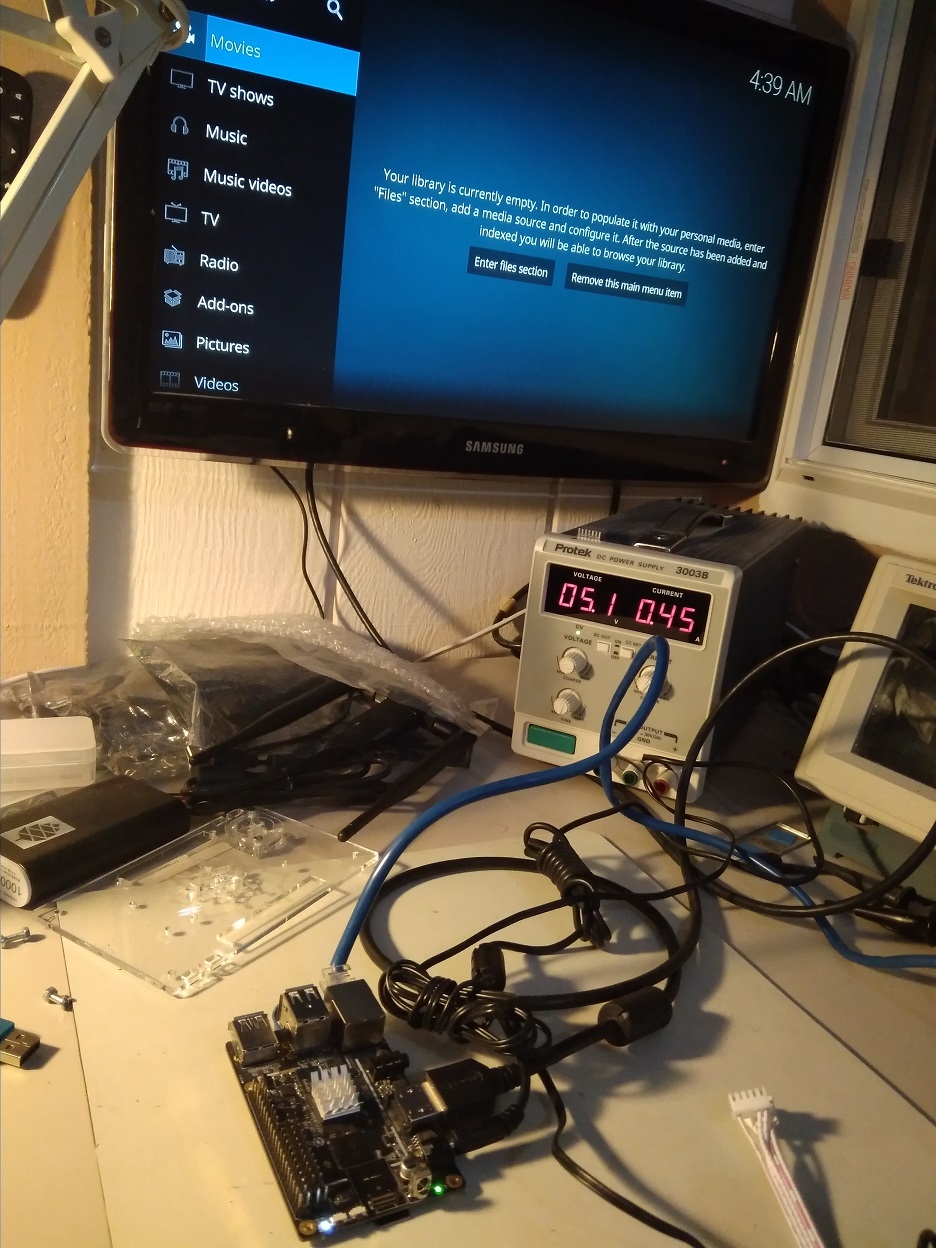

Attached is the photo of ROCK64 power measurement using lab type power supply.

When idle, the operating current stays around 450mA to 500mA when idle under Libre Kodi OS build. However, the current will jump up to 800mA-900mA or higher when loaded.
