C4Labs Case Fan Setup
#1
Hello,

is anybody using the C4Labs clusterboard case and the fans?

what is the best way to power them up?

i have connected them as described in the docu, but they are not spinning up.

kind regards,
langerma
#2
Have you contacted C4labs about this?
#3
(09-25-2019, 07:35 AM)langerma Wrote: Hello,

is anybody using the C4Labs clusterboard case and the fans?

what is the best way to power them up?

i have connected them as described in the docu, but they are not spinning up.

kind regards,
langerma
Actually,

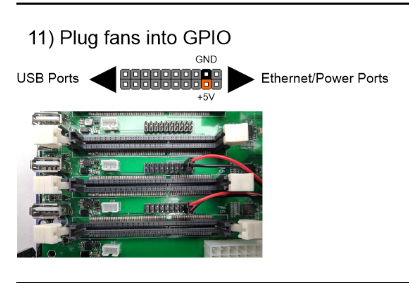

If you look at page 3 of the description there seems to be an error in the documentation.

Under 11) it lists +5V as being close to the sophine socket. But the photo actually has the cables the other way around.

That might explain a lot.

And I think they will not work without a module in the slot. But that is just a guess.

Regards, Hugo.
