Case Mod Opening for Serial Console Slider Switch
#1
Greetings,

I've been working on a Pinebook case mod which will safely expose the serial console slider switch on the main board without dismantling the Pinebook every time;  that was getting old fast-- ten tiny little screws ( its a miracle I have lost none of them yet ) !



The pic above is the slider switch;  look to the upper left of the pic and you'll see the pencil marks for the proposed dremel styrene work. The switch is in from the side 1.1 - 1.7 cm  and down from the back 8.1 - 8.2 cm.



I chose a 1.0mm carbonide cutting wheel for the dremel tool; do this from the underneath side cause it makes one dandy mess, but it cleans up nicely with a sharp modeling knife and a nail file.  Tip:  practice on another piece of styrene first ;  dremels take some getting used to.



This is the case opening after cleanup;  there is still ample protection, things will stay out of there, but the switch may be accessed easily.

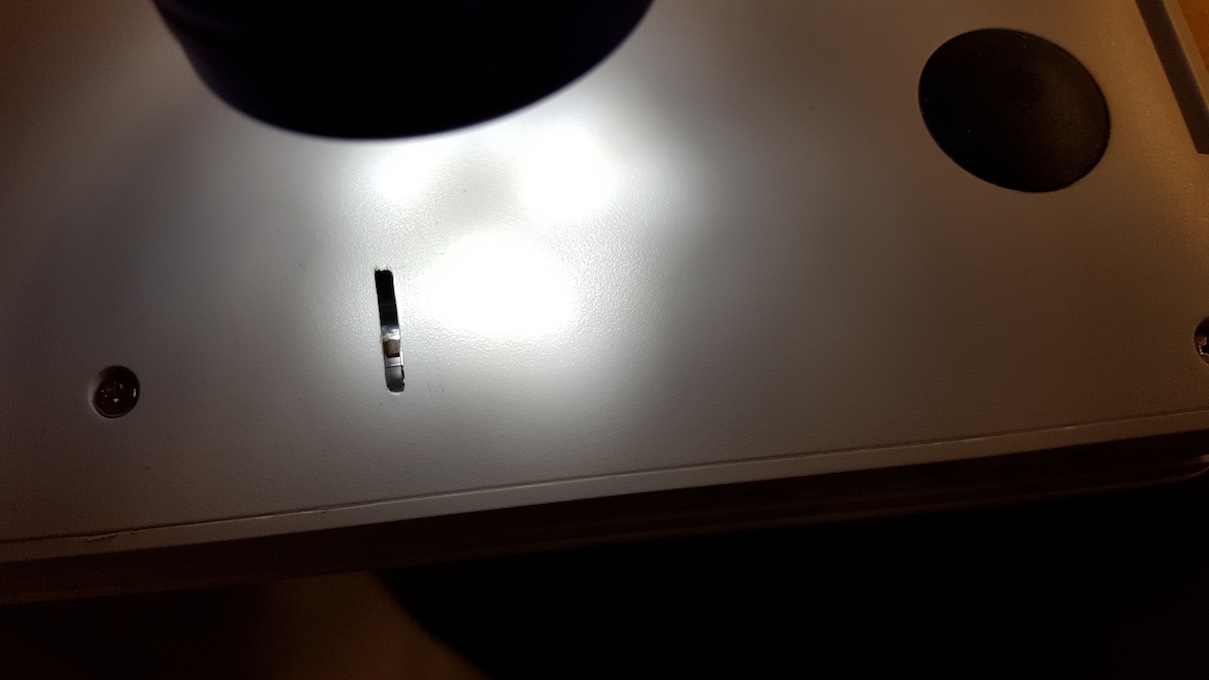

Final pic is my high intensity 9 LED flashlight illuminating the slider switch inside the Pinebook case.  I use a simple slider switch access tool (toothpic) and voilà  !

Shy
marcushh777    Cool

please join us for a chat @  irc.pine64.xyz:6667   or ssl  irc.pine64.xyz:6697

( I regret that I am not able to respond to personal messages;  let's meet on irc! )
  Reply
#2
Nice!
  Reply
