RE: Cases and Enclosure Question - scprosser - 03-11-2016
(02-16-2016, 09:03 PM)brf Wrote:(02-16-2016, 04:28 PM)scprosser Wrote: Still waiting on .STL files for 3D printing an enclosure...throw us a bone please, and let us get to work!
I can't finalize it based on a top-view .jpg of the unit. Once I get the board in hand and can lay a ruler on it, I can finish up the design. Sounds like you favor the over-all concept though, and that is good. Please be patient.
Sorry brf, my post wasn't aimed at you, but was in reference to an earlier statement that an stl file for the enclosure would be made available to us.
I AM really looking forward to seeing what you come up with though, please keep us posted!
RE: Cases and Enclosure Question - Tarjei85 - 03-12-2016
When the boards start to arrive, and people (me included) get their chance to finish the 3dmodels I suggest we starta new thread where we can all post our .stl files.
If I had the accurate placements and dimmensions of all the connectors I would do so right now, but it seems I'll have to wait untill my board arrives to get that (even though we were promised the complete blueprint of the pine
).If anyone have accurate measures of the board, please be so kind to share with the rest of us.
I'm guessing I'm not the only one that want to have the casing ready when the board arrives.
RE: Cases and Enclosure Question - Artyom - 03-13-2016
Please Provide information on the geometric dimensions (internal and external) of the waterproof case. What size (width, length, height) of the battery fit into the waterproof case with Pine64 (2GB RAM)?
RE: Cases and Enclosure Question - tllim - 03-13-2016
(03-13-2016, 12:16 AM)Artyom Wrote: Please Provide information on the geometric dimensions (internal and external) of the waterproof case. What size (width, length, height) of the battery fit into the waterproof case with Pine64 (2GB RAM)?
I will provide tomorrow when have the info. if I forget (sometimes I drop ball), just PM me.
RE: Cases and Enclosure Question - Artyom - 03-17-2016
Good day, about a month already ask this question, but my information is still not provided.
Please Provide information on the geometric dimensions (internal and external) of the waterproof case. What size (width, length, height) of the battery fit into the waterproof case with Pine64 (2GB RAM)?
RE: Cases and Enclosure Question - npull - 03-18-2016
While you're at it please provide the dimensions of the tablet enclosure as well.
Thanks!
Cases and Enclosure very easy for more PINE - norm24 - 03-18-2016

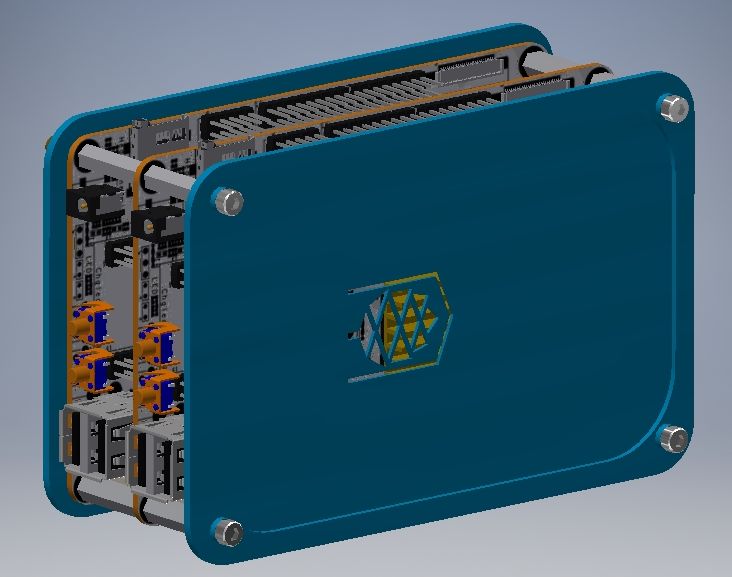

I have designed a simple housing for more PINE. It can be used horizontally and vertically.
RE: Cases and Enclosure very easy for more PINE - norm24 - 03-20-2016
(03-18-2016, 12:08 PM)norm24 Wrote: I have designed a simple housing for more PINE. It can be used horizontally and vertically.
the first 3D printing is finished.
RE: Cases and Enclosure Question - trevor.ribal - 03-30-2016
Where can I buy a set of these?
Sent from my D6653 using Tapatalk
RE: Cases and Enclosure very easy for more PINE - Akazungu - 03-31-2016
(03-20-2016, 09:13 AM)norm24 Wrote:(03-18-2016, 12:08 PM)norm24 Wrote: I have designed a simple housing for more PINE. It can be used horizontally and vertically.
the first 3D printing is finished.
Love it! Very well done.
