Pinebook micro USB power input mod
#1

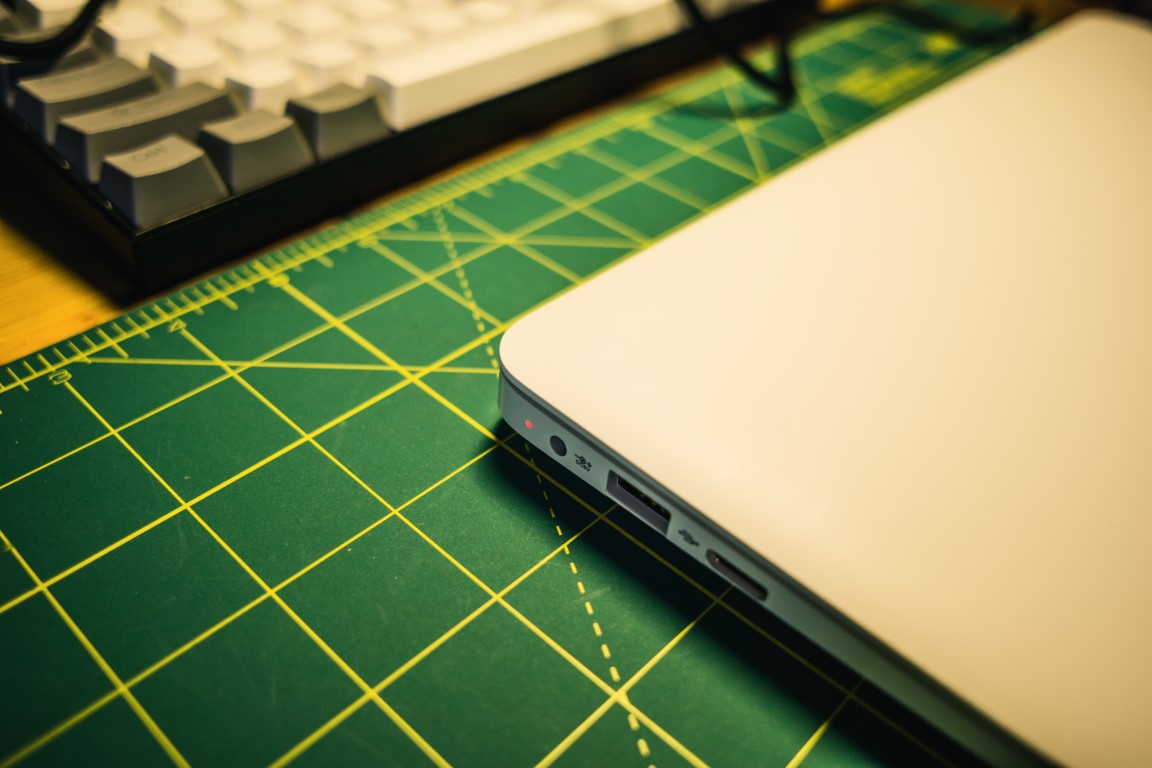

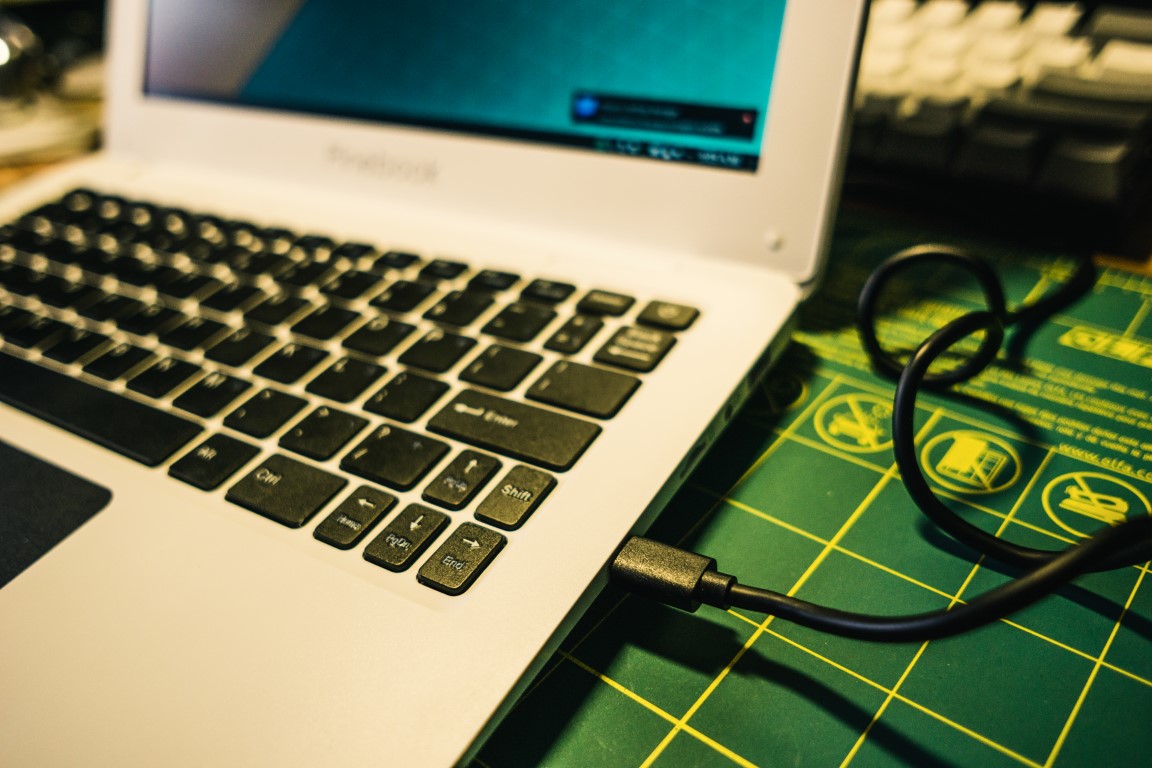

Decided to add a micro usb port for charging.


[Image: attachment.php?aid=1337]

[Image: attachment.php?aid=1338]

[Image: attachment.php?aid=1339]

[Image: attachment.php?aid=1340]

[Image: attachment.php?aid=1341]

EDIT: Not sure how to have the attachments display inline, not as links.

EDIT 2: Used attachment as inline images.


Attached Files
.jpg   DSC08482 (Medium).jpg (Size: 188.22 KB / Downloads: 60)
.jpg   DSC08484 (Medium).jpg (Size: 322.66 KB / Downloads: 59)
.jpg   DSC08494 (Medium).jpg (Size: 123.53 KB / Downloads: 58)
.jpg   DSC08497 (Medium).jpg (Size: 166.22 KB / Downloads: 58)
.jpg   DSC08506 (Medium).jpg (Size: 213.96 KB / Downloads: 56)
  Reply
#2
Wow. Kudos on your skills. Is there an instruction manual, how to do this? That would be awesome.

I would like to ask also another question. Not about your project, but a related question.

On page http://linux-sunxi.org/Pine_Pinebook#Pin...6.22_1080p
there is an statement in Power Managment paragraph: "There is a secondary power path via the OTG-USB port...".

Does that mean, the pinebook can be charged via the OTG-USB port? If yes, which one is it?

Thanks.
  Reply
#3
Thanks!

No instruction manual. Can provide if other members are interested as well.

I've made similar modifications to other devices before. Just went by my own experience.

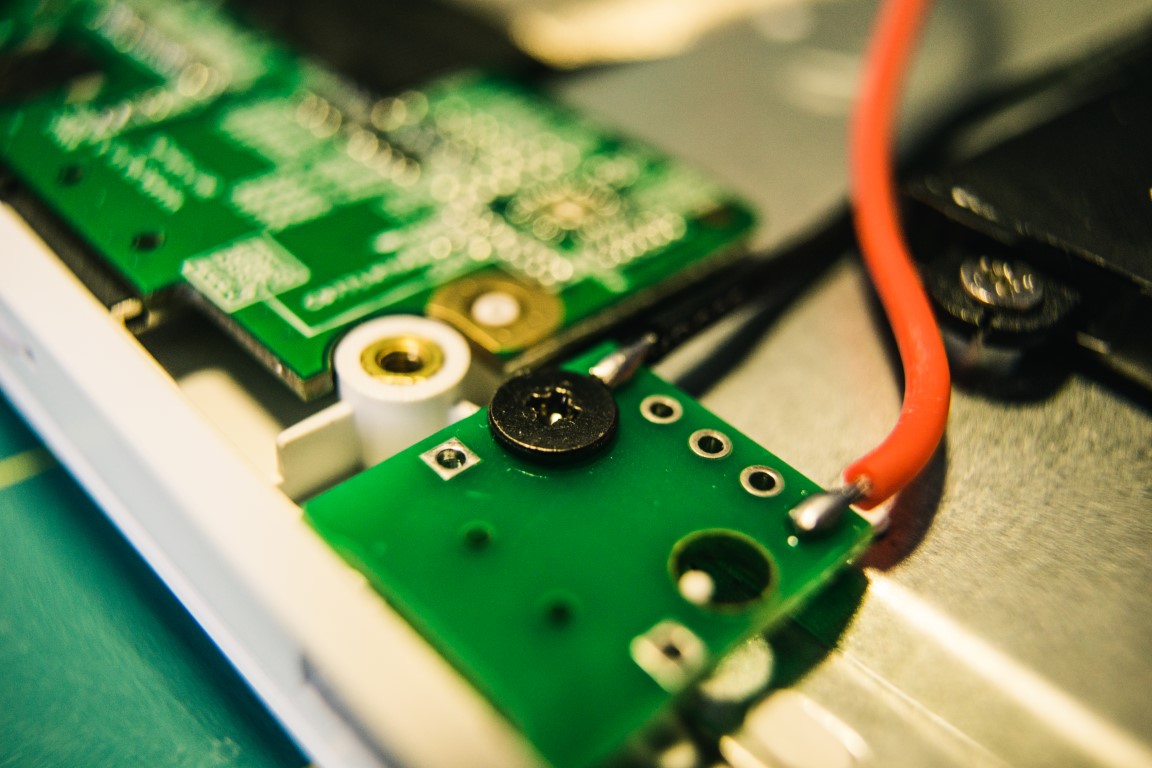

Scoped out a good spot inside the pinebook with an unused threaded insert.

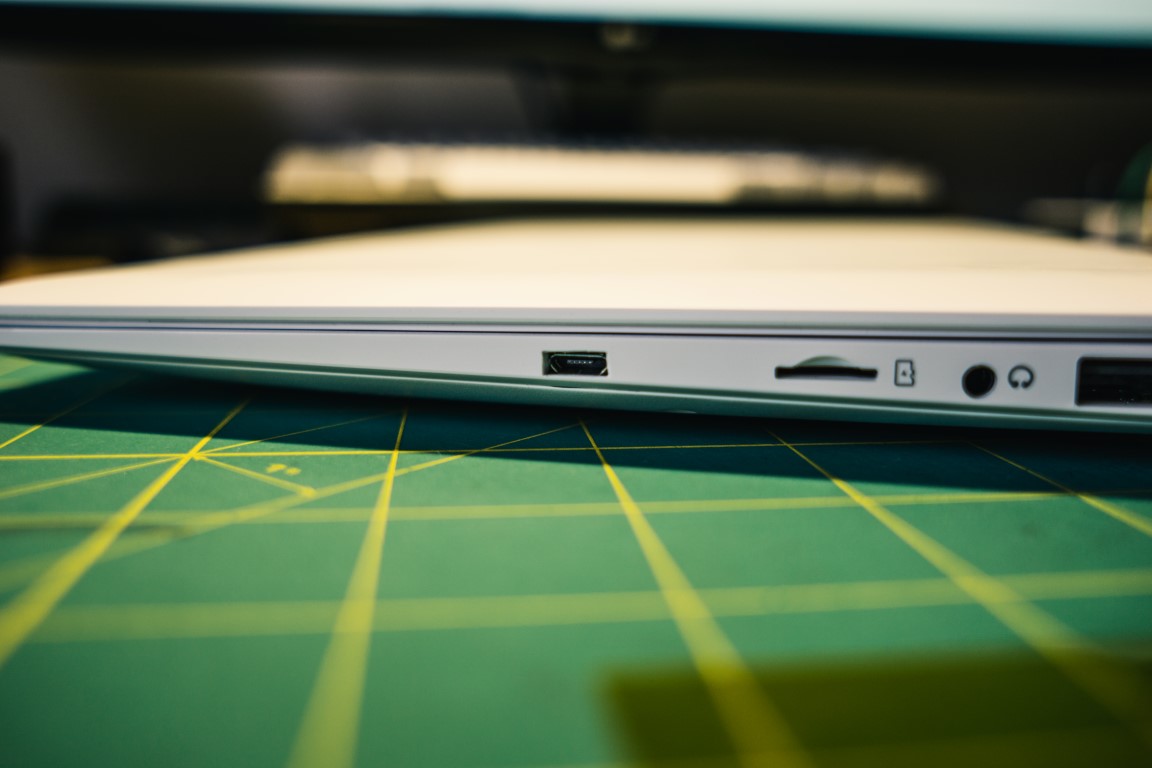

Cut out the necessary hole and edges from the plastic shell/panel to expose/accommodate the micro USB.

Probed the board for the 5V and GND connections to the barrel jack.

Soldered wires connecting the barrel jack connections to the micro USB breakout.

I didn't use a diode but it would help to prevent reverse voltage when both the barrel jack and micro USB are powered by different sources.

As for the OTG-USB. I found four closely situated pads near the WiFi chip on the motherboard but I'm not sure if those are the OTG-USB ones. I did not use the OTG-USB connections for this mod. If they are readily accessible, it may be the better option as opposed to connecting to the barrel jack.
  Reply
#4
As far as first posts go, this certainly takes the prize. Also, pretty sweet mod - this is exactly the sort of tinkering that was envisioned for the Pinebook in the first place.

[edit] for the pictures, in the future, I recommend just using imgur embed.
  If you manage to click this link you'll join in the IRC channel
  Reply
#5
Luckily the current generation Pinebook has a plastic enclosure. Sounds like the magnesium chassis of the Pinebook Pro might not lend to these kinds of mods as readily but still looking forward to it!
  Reply
