Missing items, board without switches
#1
I have followed pine team announcements regarding shipping and recommended time for waiting them to come. At the end of april I got my first package (parcel RI894207017CN), containing Pine64+ (serial 410640105913) and WiFi module. As it was said that I should wait couple of weeks if my order had more than one unit, I have waited. But, after a few weeks, this is the only thing I got. I have sent an email to shipping@pine64.com three weeks ago, no answer so far. So, I decided to try here...

The missing items are:

QTY     ITEM         PRICE
1     Abs case legacy square thumb     PINE64 ABS Enclosure     $6.24 (incl. shipping)
1     Pinea64 2gbpn legacy square thumb     PINE A64+ 2GB - PA642GB     $30.00 (incl. shipping)
1     Acryliccase 1 legacy square thumb     PINE64 Acrylic Open Enclosure     $7.49 (incl. shipping)
1     Hdmitovga legacy square thumb     HDMI to VGA Adapter With Audio     $6.24 (incl. shipping)
2     Backupcr legacy square thumb     RTC Backup Battery - CR     $4.24 (incl. shipping)
4     Plug international1 legacy square thumb     PINE64 5V 2A Power Supply - International     $8.24 (incl. shipping)
2     Pinea64p 1 legacy square thumb     PINE A64+ 1GB - PA641GB

Also, the unit I have received came with one tactile switch that was just thrown into the bag (picture in attachment). As I'm not sure this is how it is supposed to be, nor I have found a picture of the final board, I'm also not sure if there is anything more that is missing on it.

I know that pine team has many things to sort out, but I think that I have been more than patient and still got no response...


Attached Files Thumbnail(s)

#2
(06-20-2016, 10:56 PM)zzarko Wrote: I have followed pine team announcements regarding shipping and recommended time for waiting them to come. At the end of april I got my first package (parcel RI894207017CN), containing Pine64+ (serial 410640105913) and WiFi module. As it was said that I should wait couple of weeks if my order had more than one unit, I have waited. But, after a few weeks, this is the only thing I got. I have sent an email to shipping@pine64.com three weeks ago, no answer so far. So, I decided to try here...

The missing items are:

QTY     ITEM         PRICE
1     Abs case legacy square thumb     PINE64 ABS Enclosure     $6.24 (incl. shipping)
1     Pinea64 2gbpn legacy square thumb     PINE A64+ 2GB - PA642GB     $30.00 (incl. shipping)
1     Acryliccase 1 legacy square thumb     PINE64 Acrylic Open Enclosure     $7.49 (incl. shipping)
1     Hdmitovga legacy square thumb     HDMI to VGA Adapter With Audio     $6.24 (incl. shipping)
2     Backupcr legacy square thumb     RTC Backup Battery - CR     $4.24 (incl. shipping)
4     Plug international1 legacy square thumb     PINE64 5V 2A Power Supply - International     $8.24 (incl. shipping)
2     Pinea64p 1 legacy square thumb     PINE A64+ 1GB - PA641GB

Also, the unit I have received came with one tactile switch that was just thrown into the bag (picture in attachment). As I'm not sure this is how it is supposed to be, nor I have found a picture of the final board, I'm also not sure if there is anything more that is missing on it.

I know that pine team has many things to sort out, but I think that I have been more than patient and still got no response...
The switch goes on the right side of the board, below the ethernet port, either as a reset switch or a power switch
Backer #20,167 - KS funded 07 Jan 2016 - Backerkit funded 10 Mar 2016

STATUS -  Received 6 Jul 2016 - Shipped 24 Jun 2016
#3
(06-20-2016, 10:58 PM)mFinnholm Wrote:
(06-20-2016, 10:56 PM)zzarko Wrote: I have followed pine team announcements regarding shipping and recommended time for waiting
The switch goes on the right side of the board, below the ethernet port, either as a reset switch or a power switch

http://forum.pine64.org/attachment.php?aid=283

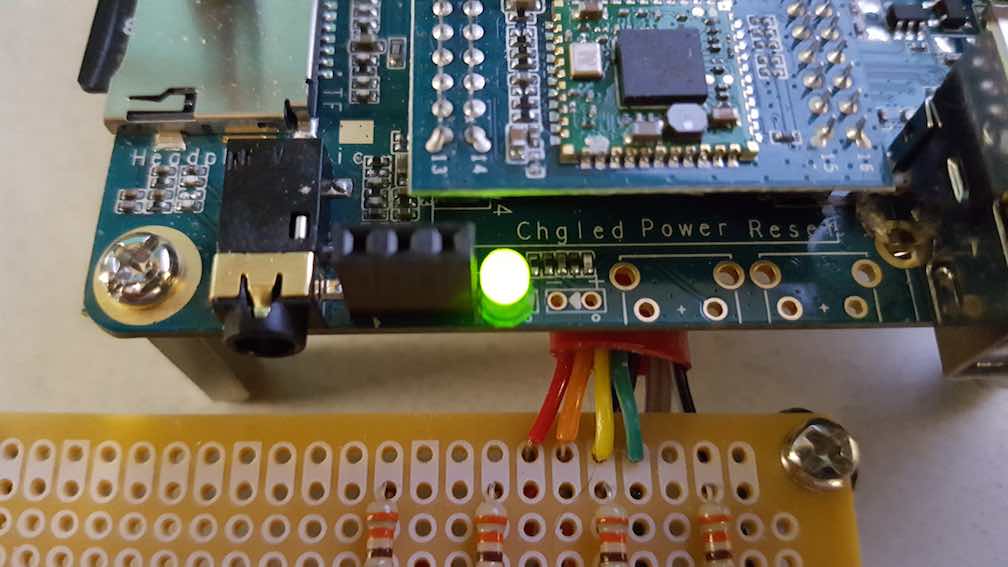

Actually, the switch goes just under the wifi daughter card on the opposite side of the ethernet port, to the left side of the usb port (see pic)

The board ships without the switches nor the leds (this is normal, keeps the price of the board down). You will have to solder the switch in place, or take it to a friend with the skills.

For the moment, probably best not to worry about it, but don't lose the switch.
#4
(06-20-2016, 11:21 PM)MarkHaysHarris777 Wrote:
(06-20-2016, 10:58 PM)mFinnholm Wrote:
(06-20-2016, 10:56 PM)zzarko Wrote: I have followed pine team announcements regarding shipping and recommended time for waiting
The switch goes on the right side of the board, below the ethernet port, either as a reset switch or a power switch

http://forum.pine64.org/attachment.php?aid=283

Actually, the switch goes just under the wifi daughter card on the opposite side of the ethernet port, to the left side of the usb port (see pic)

The board ships without the switches nor the leds (this is normal, keeps the price of the board down). You will have to solder the switch in place, or take it to a friend with the skills.

For the moment, probably best not to worry about it, but don't lose the switch.

Oops my bad, in a hurry i misstook the usb ports for the ethernet port  Angel
Backer #20,167 - KS funded 07 Jan 2016 - Backerkit funded 10 Mar 2016

STATUS -  Received 6 Jul 2016 - Shipped 24 Jun 2016
#5
Thank you for your replies! I guessed that it goes to power or reset contacts, but wasn't sure...
#6
(06-20-2016, 11:21 PM)MarkHaysHarris777 Wrote:
(06-20-2016, 10:58 PM)mFinnholm Wrote:
(06-20-2016, 10:56 PM)zzarko Wrote: I have followed pine team announcements regarding shipping and recommended time for waiting
The switch goes on the right side of the board, below the ethernet port, either as a reset switch or a power switch

http://forum.pine64.org/attachment.php?aid=283

Actually, the switch goes just under the wifi daughter card on the opposite side of the ethernet port, to the left side of the usb port (see pic)

The board ships without the switches nor the leds (this is normal, keeps the price of the board down). You will have to solder the switch in place, or take it to a friend with the skills.

For the moment, probably best not to worry about it, but don't lose the switch.
So, the switches are not needed? I get a power light, but nothing else.
#7

Very interesting. My board has arrived with soldered holes for power and reset Smile
#8
(06-28-2016, 08:23 PM)janeku Wrote: Very interesting. My board has arrived with soldered holes for power and reset Smile

Probably a good idea, I tried to solder my switch yesterday and struggled as the copper tracks seem to be covered in something that makes soldering difficult! I had to clean holes with IPA before I could tin them!
