Exp Header UART for TTL is True Serial Console (very nice)
#11
hi Peterz,

Those RS232 modules are very interesting; actual 9pin shells ! (takes me back a few years)

The six uart(s) are as follows (of which you found five... ):

uart0: EXP pins pb8 & pb9 duplicated on euler bus pin(29) & pin(30)
uart1: wifi|bt pins pg6 & pg7
uart2: pi bus pins pb0 & pb1
uart3: euler bus pd0 & pd1
uart4: euler bus pd2 & pd3
S-uart wifi|bt pl2 & pl3

If you use the serial console, bluetooth, and wifi, then only three uart(s) are available to you for serial comm... uart2-4.

I use the wifi and bt module, so S-uart and uart1 are out... i usually use the serial console too... so that leaves me uart3 & uart4 on the euler bus, and uart2 on the pi bus.

marcushh777
marcushh777    Cool

please join us for a chat @  irc.pine64.xyz:6667   or ssl  irc.pine64.xyz:6697

( I regret that I am not able to respond to personal messages;  let's meet on irc! )
  Reply
#12
(08-01-2016, 09:49 AM)MarkHaysHarris777 Wrote: hi Peterz,

Those RS232 modules are very interesting; actual 9pin shells !  (takes me back a few years)

The six uart(s) are as follows (of which you found five... ):

uart0:   EXP pins pb8 & pb9    duplicated on euler bus pin(29) & pin(30)
uart1:   wifi|bt  pins  pg6 & pg7
uart2:   pi bus  pins pb0 & pb1
uart3:   euler bus pd0 & pd1
uart4:   euler bus pd2 & pd3
S-uart   wifi|bt  pl2 & pl3

If you use the serial console, bluetooth, and wifi, then only three uart(s) are available to you for serial comm... uart2-4.

I use the wifi and bt module, so S-uart and uart1 are out...  i usually use the serial console too... so that leaves me uart3 & uart4 on the euler bus, and uart2 on the pi bus.

marcushh777

Hi marcushh777 ,

yes, I do not plan to use wifi/BT module.
I disabled uart0 as well (to have more uarts available).
Any idea how to enable S-uart? Somewhere on this forum someone made BT working. So this UART should be usable somehow.

Now I experimented with ch341 and FTDI USB to RS232 converters through powered USB HUB.
Comparing those small modules with USB to RS232 adapters. Adapters are ugly. Smile

CH341 are cheap but doesn't work with all devices.
FTDI works with all devices but costs several times more than ch341.

Code:
debian@pine64:~$ dmesg |grep tty
[    0.000000] Kernel command line: console=tty0 no_console_suspend disp.screen0_output_mode=720p60 earlycon=uart,mmio32,0x01c28000 mac_addr=36:c9:e3:f1:b8:05 root=/dev/mmcblk0p2 ro rootwait
[    0.000000] console [tty0] enabled
[    6.850014] uart0: ttyS0 at MMIO 0x1c28000 (irq = 32) is a SUNXI
[    6.850575] uart1: ttyS1 at MMIO 0x1c28400 (irq = 33) is a SUNXI
[    6.850943] uart2: ttyS2 at MMIO 0x1c28800 (irq = 34) is a SUNXI
[    6.851410] uart3: ttyS3 at MMIO 0x1c28c00 (irq = 35) is a SUNXI
[    6.851843] uart4: ttyS4 at MMIO 0x1c29000 (irq = 36) is a SUNXI
[    9.041264] systemd[1]: Starting system-getty.slice.
[    9.064663] systemd[1]: Created slice system-getty.slice.
[   12.343653] usb 3-1.1: ch341-uart converter now attached to ttyUSB0
[   12.572968] usb 3-1.2: ch341-uart converter now attached to ttyUSB1
[   13.242064] usb 3-1.3.1: ch341-uart converter now attached to ttyUSB2
[   13.478980] usb 3-1.3.2: ch341-uart converter now attached to ttyUSB3
[   13.714362] usb 3-1.3.3: ch341-uart converter now attached to ttyUSB4
[   13.942676] usb 3-1.3.4: ch341-uart converter now attached to ttyUSB5
[   14.166052] usb 3-1.4.1: ch341-uart converter now attached to ttyUSB6
[   14.395654] usb 3-1.4.2: FTDI USB Serial Device converter now attached to ttyUSB7

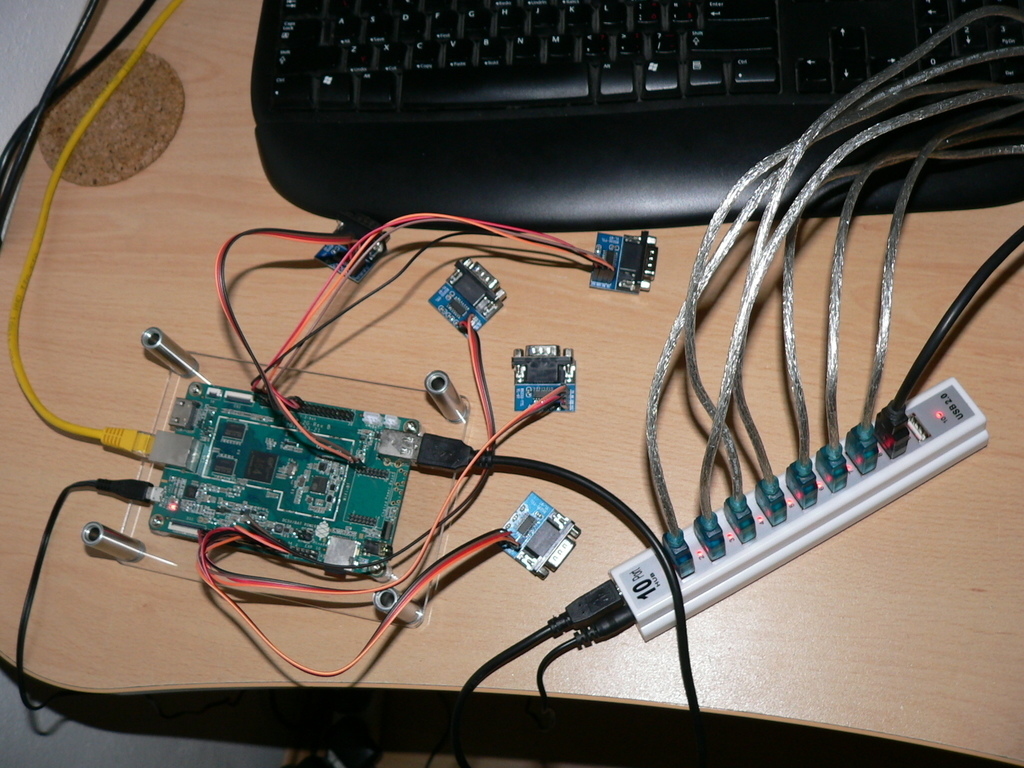

Here is the picture. If I will combine both options I will have to play with UDEV rules (did that in the past, just have to find config).


BR,
Peter


Attached Files Thumbnail(s)

  Reply
#13
All good questions. I too am interested in using s-uart/

... at the moment I don't know how, but will be attempting to find out. I'm assuming it will show up in the /dev/ folder as a device (if it has a driver on it). The may take some experimenting.

You probably know that you can jumper across the Tx and Rx pins of a uart device to echo characters on either minicom, or 'screen'. ( I often use 'screen' rather than 'minicom' these days ). You can also setup screen to talk on uart3 and listen on uart4 (and visa vera from another screen) to locally test uart ports. I have actually not tried to access S-uart yet (other than bt) so I know it works, just not sure how to access it with minicom !

let me know here what you find, and I'll do the same


marcushh777
marcushh777    Cool

please join us for a chat @  irc.pine64.xyz:6667   or ssl  irc.pine64.xyz:6697

( I regret that I am not able to respond to personal messages;  let's meet on irc! )
  Reply
