PineTime Updater for Flashing New Bootloader and FreeRTOS Firmware
#1
Information
Hi All: Do you have an ST-Link or Raspberry Pi?

Here's a simple Bash Script that flashes the latest Community Bootloader (MCUBoot ported by me) and Firmware (FreeRTOS ported by JF) to your PineTime...

https://github.com/lupyuen/pinetime-updater

This is the very same bootloader and firmware that we are asking Pine64 to preload at the PineTime Factory. (Thanks Pine64! We  Heart You  Smile )

So go ahead and flash your PineTime now... For that Fresh From The Factory Feeling  Smile

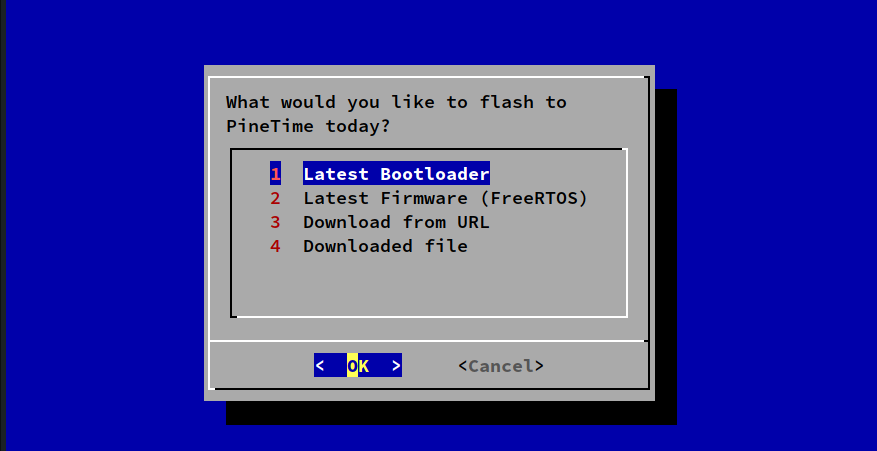

.png   pinetime-updater.png (Size: 20.76 KB / Downloads: 245)
#2
Works for me with the pi. It would have been nice if it had found and used the existing ~/openocd-spi from previous tutorials, but I guess the target audience wouldn't be expected to have been through those.
#3
Great thanks! Now that we are preloading FreeRTOS, I thought we should simplify, make a clean start and decouple openocd-spi from Mynewt :-)

Moving ahead I'll be using Mynewt more as a "Utility Firmware" for specific tasks... Like for loading a custom Boot Logo. Also for updating the PineTime MCUBoot Bootloader.

Sent from my Pixel 4 XL using Tapatalk
