ethernet does not work with Android 5.1.1 Image Release 20160711 (Known Problem) - mathiraj - 10-16-2016

I'm using Android 5.1.1 Image Release 20160711 [v1.2.6]

I had to burn this image with the PhoenixCard software on windows (as burning with 'dd' command on linux did not work)

I have a problem. The Ethernet does not obtain an IP address from the router. I know that my router works fine and other devices connected to it via ethernet function properly.

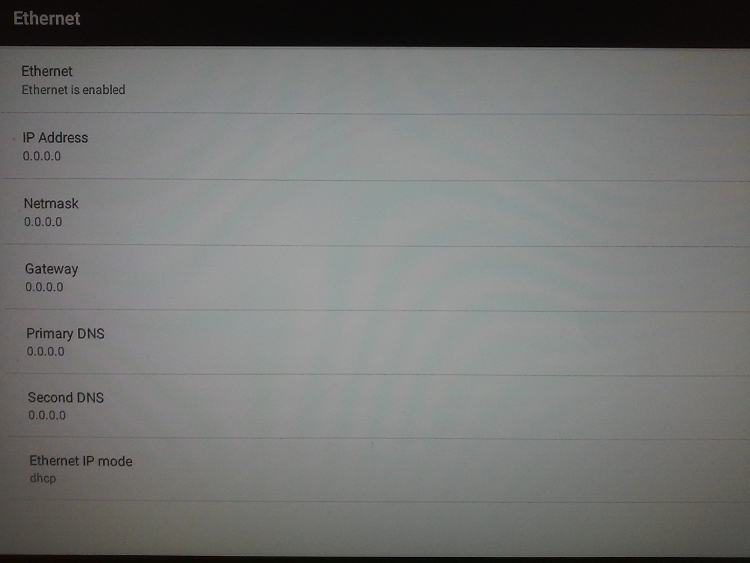

Pine64 tries to obtain IP Address for some time and then returns with '0.0.0.0' (Please see the screenshots in the attachment)


Does anyone know how to fix this? Appreciate any help.

RE: ethernet does not work with Android 5.1.1 Image Release 20160711 [v1.2.6] - dkryder - 10-16-2016

how did you get past "script not found" error message. ? isn't that a dd image and not phoenix? did you get that image here?
http://wiki.pine64.org/index.php/Main_Page#Software.2FImage_Download

RE: ethernet does not work with Android 5.1.1 Image Release 20160711 [v1.2.6] - mathiraj - 10-17-2016

(10-16-2016, 03:31 PM)dkryder Wrote: how did you get past "script not found" error message. ?  isn't that a dd image and not phoenix? did you get that image here?
http://wiki.pine64.org/index.php/Main_Page#Software.2FImage_Download

I did not get the 'script not found' error. I used the correct phoenix image. Hence was able to burn the image correctly on the sd card and boot pine64 board with it.
I placed another router/switch between pine64 and my modem and now the board acquired network connection and started working. Wonder why pine64 doesn't get ip address from my modem directly.

RE: ethernet does not work with Android 5.1.1 Image Release 20160711 [v1.2.6] - dkryder - 10-17-2016

(10-17-2016, 11:48 AM)mathiraj Wrote:
(10-16-2016, 03:31 PM)dkryder Wrote: how did you get past "script not found" error message. ?  isn't that a dd image and not phoenix? did you get that image here?
http://wiki.pine64.org/index.php/Main_Page#Software.2FImage_Download

I did not get the 'script not found' error. I used the correct phoenix image. Hence was able to burn the image correctly on the sd card and boot pine64 board with it.
I placed another router/switch between pine64 and my modem and now the board acquired network connection and started working. Wonder why pine64 doesn't get ip address from my modem directly.
where did you download that image from?

RE: ethernet does not work with Android 5.1.1 Image Release 20160711 [v1.2.6] - mathiraj - 10-17-2016

(10-17-2016, 12:52 PM)dkryder Wrote:
(10-17-2016, 11:48 AM)mathiraj Wrote:
(10-16-2016, 03:31 PM)dkryder Wrote: how did you get past "script not found" error message. ?  isn't that a dd image and not phoenix? did you get that image here?
http://wiki.pine64.org/index.php/Main_Page#Software.2FImage_Download

I did not get the 'script not found' error. I used the correct phoenix image. Hence was able to burn the image correctly on the sd card and boot pine64 board with it.
I placed another router/switch between pine64 and my modem and now the board acquired network connection and started working. Wonder why pine64 doesn't get ip address from my modem directly.
where did you download that image from?

i downloaded the image from http://wiki.pine64.org/index.php/Pine_A64_Software_Release (search for "Phoenix Card image" in this page)
There are more posts similar to the network problem i've reported (ethernet not getting ip address from dhcp when connected to my modem)

http://www.cnx-software.com/2016/05/31/pine-a64-board-quick-start-guide-benchmarks-with-android-5-1
https://www.reddit.com/r/pine64/comments/4jt1k4/major_ethernet_issues_on_all_supported_oss

RE: ethernet does not work with Android 5.1.1 Image Release 20160711 [v1.2.6] - dkryder - 10-17-2016

thanks. is that build rooted? i have the dd rooted and do not have the IP problem.
edit: ok, yes it is rooted. and supersu updated binary which is good sign. camera works. image was sized correctly.

RE: ethernet does not work with Android 5.1.1 Image Release 20160711 [v1.2.6] - waldo - 10-18-2016

(10-17-2016, 11:48 AM)mathiraj Wrote:
(10-16-2016, 03:31 PM)dkryder Wrote: how did you get past "script not found" error message. ?  isn't that a dd image and not phoenix? did you get that image here?
http://wiki.pine64.org/index.php/Main_Page#Software.2FImage_Download

I did not get the 'script not found' error. I used the correct phoenix image. Hence was able to burn the image correctly on the sd card and boot pine64 board with it.
I placed another router/switch between pine64 and my modem and now the board acquired network connection and started working. Wonder why pine64 doesn't get ip address from my modem directly.
The switch you put I  between... Is that by any chance a 100mbit model as opposed to your modem doing 1Gb?
If so you probably impacted by the GbE issue described in the sticky topics here http://forum.pine64.org/forumdisplay.php?fid=39

RE: ethernet does not work with Android 5.1.1 Image Release 20160711 [v1.2.6] - mathiraj - 10-18-2016

(10-18-2016, 04:21 AM)waldo Wrote:
(10-17-2016, 11:48 AM)mathiraj Wrote:
(10-16-2016, 03:31 PM)dkryder Wrote: how did you get past "script not found" error message. ?  isn't that a dd image and not phoenix? did you get that image here?
http://wiki.pine64.org/index.php/Main_Page#Software.2FImage_Download

I did not get the 'script not found' error. I used the correct phoenix image. Hence was able to burn the image correctly on the sd card and boot pine64 board with it.
I placed another router/switch between pine64 and my modem and now the board acquired network connection and started working. Wonder why pine64 doesn't get ip address from my modem directly.
The switch you put I  between... Is that by any chance a 100mbit model as opposed to your modem doing 1Gb?
If so you probably impacted by the GbE issue described in the sticky topics here http://forum.pine64.org/forumdisplay.php?fid=39

I think it is a 100mbit switch. Hope this GbE issue gets fixed soon. I'll wait for the fix.

RE: ethernet does not work with Android 5.1.1 Image Release 20160711 [v1.2.6] - waldo - 10-19-2016

(10-18-2016, 11:55 AM)mathiraj Wrote:
(10-18-2016, 04:21 AM)waldo Wrote:
(10-17-2016, 11:48 AM)mathiraj Wrote:
(10-16-2016, 03:31 PM)dkryder Wrote: how did you get past "script not found" error message. ?  isn't that a dd image and not phoenix? did you get that image here?
http://wiki.pine64.org/index.php/Main_Page#Software.2FImage_Download

I did not get the 'script not found' error. I used the correct phoenix image. Hence was able to burn the image correctly on the sd card and boot pine64 board with it.
I placed another router/switch between pine64 and my modem and now the board acquired network connection and started working. Wonder why pine64 doesn't get ip address from my modem directly.
The switch you put I  between... Is that by any chance a 100mbit model as opposed to your modem doing 1Gb?
If so you probably impacted by the GbE issue described in the sticky topics here http://forum.pine64.org/forumdisplay.php?fid=39

I think it is a 100mbit switch. Hope this GbE issue gets fixed soon. I'll wait for the fix.
I'm afraid there will be no fix. The boards we have are broken. With the production line still producing broken boards.

RE: ethernet does not work with Android 5.1.1 Image Release 20160711 [v1.2.6] - tllim - 10-25-2016

(10-19-2016, 02:10 AM)waldo Wrote:
(10-18-2016, 11:55 AM)mathiraj Wrote:
(10-18-2016, 04:21 AM)waldo Wrote:
(10-17-2016, 11:48 AM)mathiraj Wrote:
(10-16-2016, 03:31 PM)dkryder Wrote: how did you get past "script not found" error message. ?  isn't that a dd image and not phoenix? did you get that image here?
http://wiki.pine64.org/index.php/Main_Page#Software.2FImage_Download

I did not get the 'script not found' error. I used the correct phoenix image. Hence was able to burn the image correctly on the sd card and boot pine64 board with it.
I placed another router/switch between pine64 and my modem and now the board acquired network connection and started working. Wonder why pine64 doesn't get ip address from my modem directly.
The switch you put I  between... Is that by any chance a 100mbit model as opposed to your modem doing 1Gb?
If so you probably impacted by the GbE issue described in the sticky topics here http://forum.pine64.org/forumdisplay.php?fid=39

I think it is a 100mbit switch. Hope this GbE issue gets fixed soon. I'll wait for the fix.
I'm afraid there will be no fix. The boards we have are broken. With the production line still producing broken boards.

We will release an Android 5.1.1 build with GbE fix tonight (Oct 25, PST). The GbE issue is the network packet loss issue and need to finetune the TX/RX delay value.
